The Hager insulated busbar 3P+N 63A prong 10mm² (24 modules) streamlines three-phase + neutral distribution. Rated 63A at 230-400 V with 4 kV impulse withstand, it safely feeds up to 24 devices over its 420 mm length. The 10 mm² pin-type phase busbar enables fast, tidy, secure connections, cutting wiring time and errors—ideal for residential and commercial distribution boards.
EAN
3250613720162
Packaging
10
RJ45 Connector Cat5e FTP Shielded with Modular Support, Light Grey KB463C
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current IN63 A
Architecture
-
Number of poles4
Dimensions
-
Length420 mm
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with pin
Capacity
-
Number of modules24
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

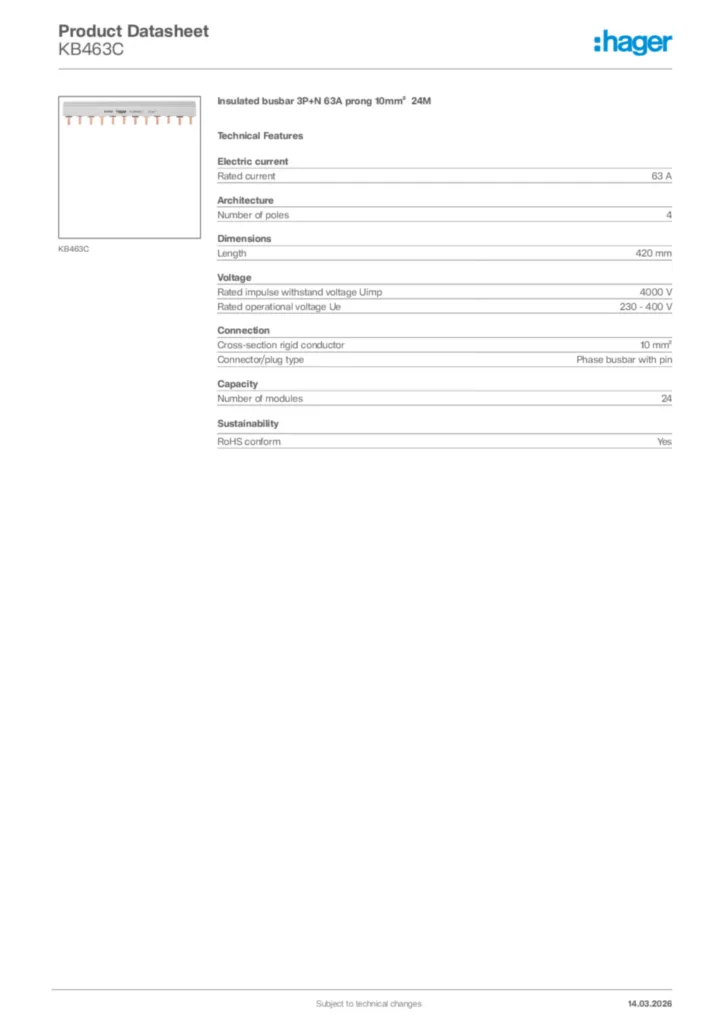

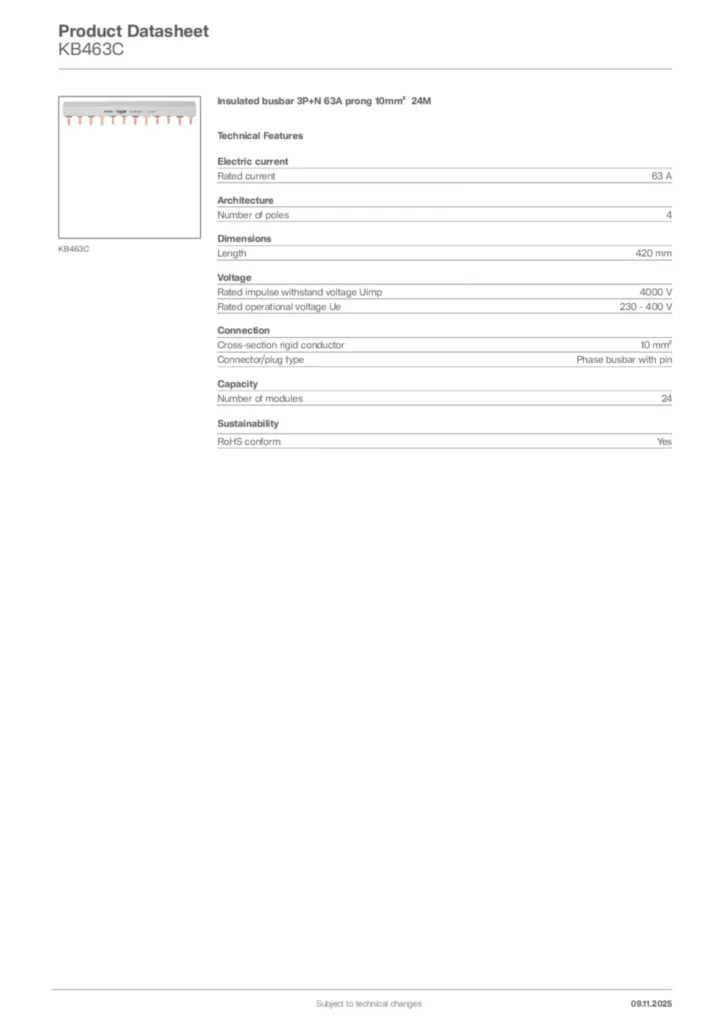

Product datasheet
Hager Product data sheet KB463C
Insulated busbar 3P+N 63A prong 10mm² 24M
PDF -
Declaration of conformity
Declaration of conformity International 2026-08-04
PDF321,62 kB
Declaration of conformity en-GB 2026-01-12
PDF364,15 kB
Declaration of conformity en-GB 2026-01-12
PDF386,96 kB
More documentation
