Moulded Case Circuit Breaker x250 4P 40kA 100A TM HNB101Z

Name: HNB101Z
Brand: Hager
SKU: HNB101Z

EAN

3250613149871

Packaging

1 Piece

Available soon

Accessories
Technical properties
Environmental value
Documentations
More products

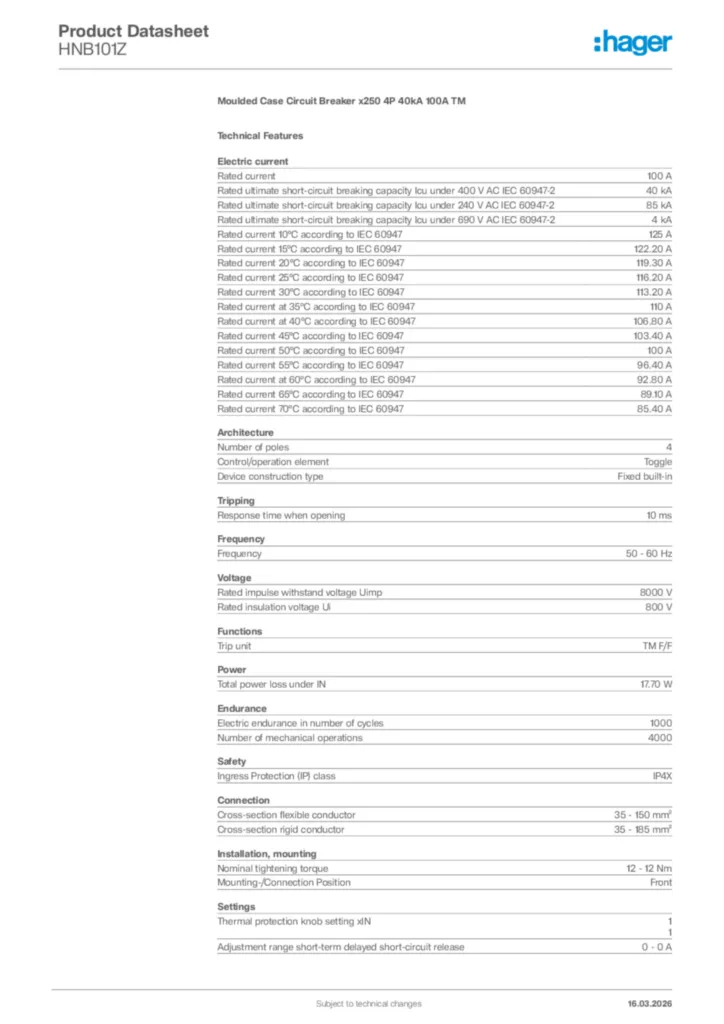

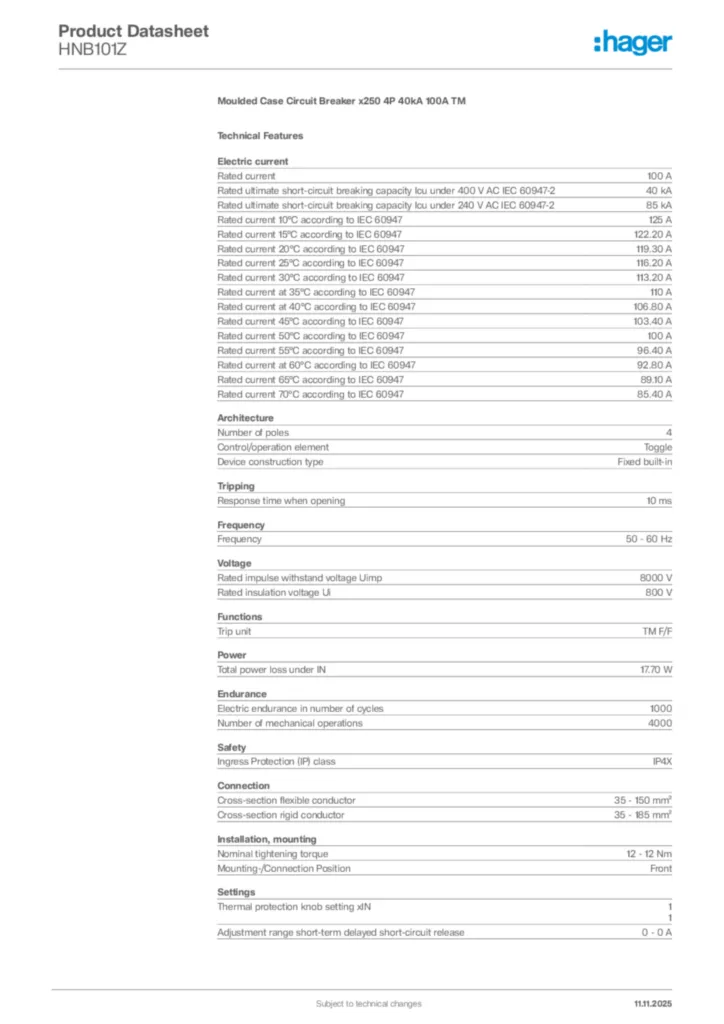

Download the data sheet

Complete your system

AOB MCCB type A-HI 2 products available
Under voltage coil 9 products available
Auxiliaries contact block 4 products available
Auxiliaries interlocking cable 2 products available
Shunt release 6 products available
Motor operator 2 products available

Technical properties

Rated current

100 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

40 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated current 10°C according to IEC 60947

125 A
Rated current 15°C according to IEC 60947

122.20 A
Rated current 20°C according to IEC 60947

119.30 A
Rated current 25°C according to IEC 60947

116.20 A
Rated current 30°C according to IEC 60947

113.20 A
Rated current at 35°C according to IEC 60947

110 A
Rated current at 40°C according to IEC 60947

106.80 A
Rated current 45°C according to IEC 60947

103.40 A
Rated current 50°C according to IEC 60947

100 A
Rated current 55°C according to IEC 60947

96.40 A
Rated current at 60°C according to IEC 60947

92.80 A
Rated current 65°C according to IEC 60947

89.10 A
Rated current 70°C according to IEC 60947

85.40 A

Number of poles

4
Control/operation element

Toggle
Device construction type

Fixed built-in

Response time when opening

10 ms

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8000 V
Rated insulation voltage Ui

800 V

Trip unit

TM F/F

Total power loss under IN

17.70 W

Electric endurance in number of cycles

1000
Number of mechanical operations

4000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

35 - 150 mm²
Cross-section rigid conductor

35 - 185 mm²

Thermal protection knob setting xIN

1, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Suitable for DIN Rail

No

Nominal tightening torque

12 - 12 Nm
Mounting-/Connection Position

Front

Magnetic protection trip time

0 - 0 ms
