MCB 3P 30kA C-100A 4.5M HMK390

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Environmental value
Documentations

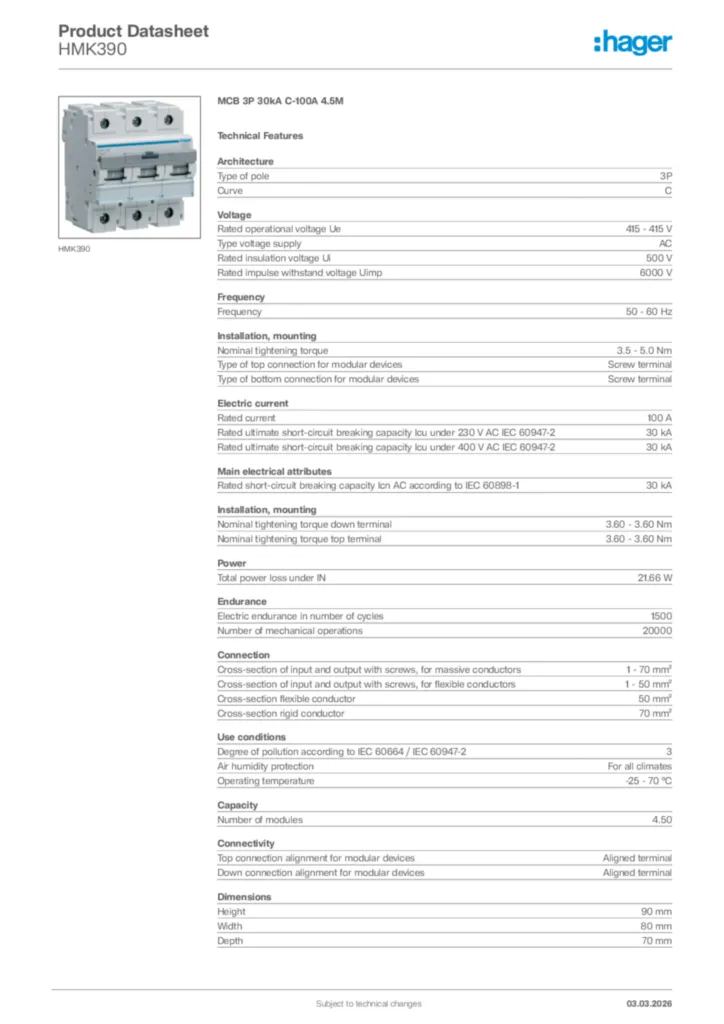

Download the data sheet

Complete your system

AOB 125 A type A-HI 2 products available
AOB 125 A type AC 2 products available

Technical properties

Type of pole

3P

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Nominal tightening torque

3.5 - 5.0 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal
Nominal tightening torque down terminal

3.60 - 3.60 Nm
Nominal tightening torque top terminal

3.60 - 3.60 Nm

Rated current

100 A
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

30 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

30 kA

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

30 kA

Total power loss under IN

21.66 W

Electric endurance in number of cycles

1500
Number of mechanical operations

20000

Cross-section of input and output with screws, for massive conductors

1 - 70 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 50 mm²
Cross-section flexible conductor

50 mm²
Cross-section rigid conductor

70 mm²

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Number of modules

4.50

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

90 mm
Width

80 mm
Depth

70 mm
