    • BTC380E
    EAN
    3250611500049
    Packaging
    1 Piece
    • Add-on blocks for MCB and multi­polar

    Earth leakage add-on-block 3P 125A Adjustable type AC BTC380E

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on-block 3P 125A Adjustable type AC

    BTC380E

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 17 products available

    Referenced by

    • HMD399

      MCB 3P 15kA D-125A 4.5M
      0.00 €  / *
    • HMB380

      MCB 3P 15kA B-80A 4.5M
      0.00 €  / *
    • HMB390

      MCB 3P 15kA B-100A 4.5M
      0.00 €  / *
    • HMB399

      MCB 3P 15kA B-125A 4.5M
      0.00 €  / *
    • HMC380

      MCB 3P 15kA C-80A 4.5M
      0.00 €  / *
    • HMC390

      MCB 3P 15kA C-100A 4.5M
      0.00 €  / *
    • HMC399

      MCB 3P 15kA C-125A 4.5M
      0.00 €  / *
    • HMD380

      MCB 3P 15kA D-80A 4.5M
      0.00 €  / *
    • HMD390

      MCB 3P 15kA D-100A 4.5M
      0.00 €  / *
    • HMX363

      MCB 3P 50kA C-63A 4.5M
      0.00 €  / *
    • HMX310

      MCB 3P 50kA C-10A 4.5M
      0.00 €  / *
    • HMX316

      MCB 3P 50kA C-16A 4.5M
      0.00 €  / *
    • HMX320

      MCB 3P 50kA C-20A 4.5M
      0.00 €  / *
    • HMX325

      MCB 3P 50kA C-25A 4.5M
      0.00 €  / *
    • HMX332

      MCB 3P 50kA C-32A 4.5M
      0.00 €  / *
    • HMX340

      MCB 3P 50kA C-40A 4.5M
      0.00 €  / *
    • HMX350

      MCB 3P 50kA C-50A 4.5M
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      125 A
    • Rated residual oper­ating current Idn
      300 mA, 500 mA, 1000 mA
    Archi­tec­ture
    • Number of poles
      3
    Voltage
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      6000 V
    Connec­tion
    • Cross-sec­tion of input and output with screws, for massive conductors
      10 - 70 mm²
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      10 - 50 mm²
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      103 mm
    • Width
      187 mm
    • Depth
      69 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration BTC380E
    PDF
    RoHS report BTC380E
    PDF

    Downloads

    • Image BTC380E | Hager Africa

      Product Image BTC380E

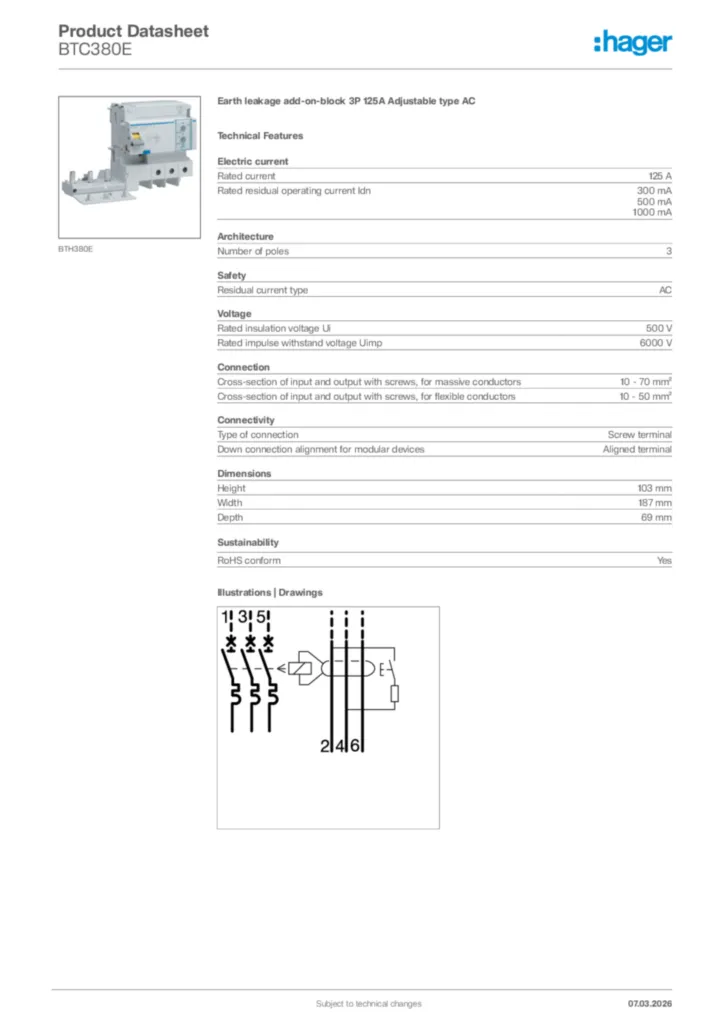

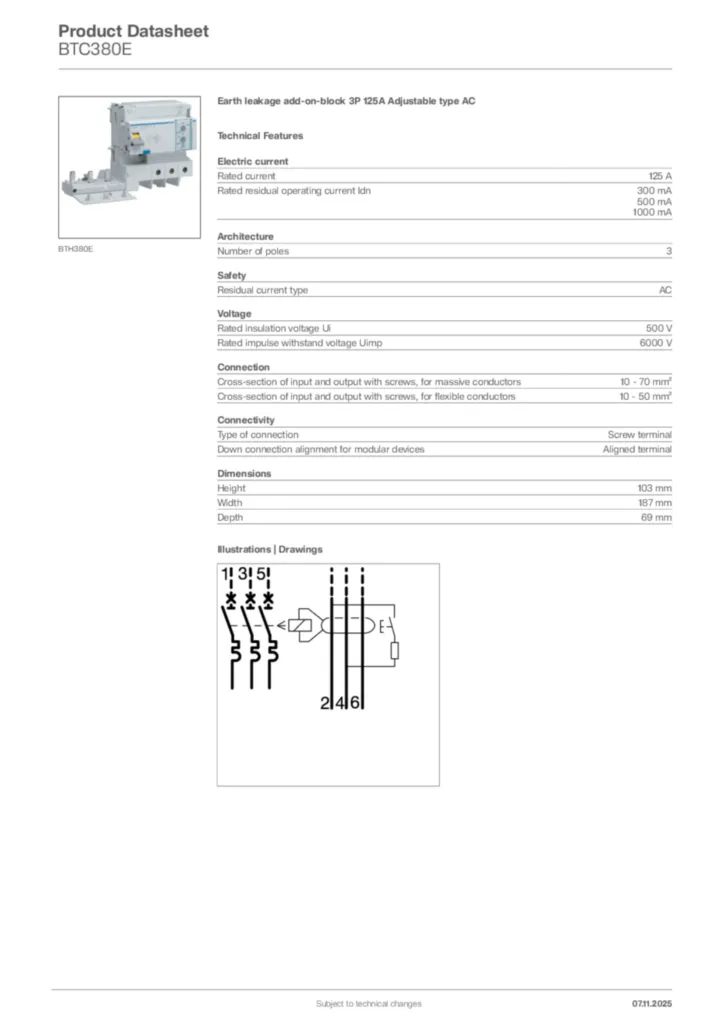

    • Product datasheet

      Image Hager Product data sheet BTC380E | Hager Africa

      Hager Product data sheet BTC380E

      Earth leakage add-on-block 3P 125A Adjustable type AC

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2021-11-10

      PDF
      920,46 kB
