Moulded Case Circuit Breaker h3+ P160 TM ADJ 4P4D N0-100% 160A 70kA CTC HES161DC
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Under voltage coil 8 products available -
Handle with interlock for power breaker 1 products available -
Shunt release 5 products available -
Auxiliaries cable adaptor 2 products available -
Connection Functions 6 products available -
Auxiliaries contact block 5 products available
Complete your system
-
HXA055H
UVR delayed 380-450V AC (x160-P160-x250-P250)
-
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
-
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HYS328H
L connection terminal Plug-in P160 1P
-
HYS015HSpread terminal extension P160 4P cage version
-
HYS013HStraight terminal extension P160 4P cage version
-
HYS006HCage terminal P160 cage version Al 4P 1x35-120mm²
-
HYS002HCage terminal P160 cage version Cu/Al 4P 1x 10-95mm²
-
HYS132HRear connection for P160 4P (63-160A)
-
HYC250H
PM Auxiliary circuit terminal -Panel side- (P160..630 - h250..1000-x630)
-
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HXA021HAuxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HYS053HEarth plate for Spread terminal extension P160 4P
-
HYS051HEarth plate for Straight terminal extension P160 4P
-
HYS026HTerminal cover for Rear & Plug-in connection P160 4P
-
HYS024HTerminal cover for Spread terminal extension P160 4P
-
HYS022HTerminal cover for Straight terminal extension P160 4P
-
HYS322HTerminal cover for Plug-in base P160 4P
Technical properties
Electric current
-
Rated current160 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 660 V AC IEC 60947-26 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-26 kA
-
Rated current 10°C according to IEC 60947192.10 A
-
Rated current 15°C according to IEC 60947188.40 A
-
Rated current 20°C according to IEC 60947184.60 A
-
Rated current 25°C according to IEC 60947180.70 A
-
Rated current 30°C according to IEC 60947176.80 A
-
Rated current at 35°C according to IEC 60947172.70 A
-
Rated current at 40°C according to IEC 60947168.60 A
-
Rated current 45°C according to IEC 60947164.40 A
-
Rated current 50°C according to IEC 60947160 A
-
Rated current 55°C according to IEC 60947155.50 A
-
Rated current at 60°C according to IEC 60947150.90 A
-
Rated current 65°C according to IEC 60947146.20 A
-
Rated current 70°C according to IEC 60947141.20 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionLeft
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitTM A/A
Power
-
Total power loss under IN42.30 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations40000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor6 - 70 mm²
-
Cross-section rigid conductor6 - 95 mm²
Connectivity
-
Type of connectionScrew terminal
Cover, door
-
InterlockableYes
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
Cable
-
Cable materialCopper
Compatibility
-
Compatible with RDC AOBNo
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Dimensions
-
Height130 mm
-
Width120 mm
-
Depth97 mm
Electrical protection
-
Instantaneous protection (li): dial setting coefficient6, 7, 8, 9, 10
Installation, mounting
-
Mounting-/Connection PositionFront
-
Nominal tightening torque6 - 6 Nm
-
Nominal tightening torque down terminal6 - 6 Nm
-
Nominal tightening torque top terminal6 - 6 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

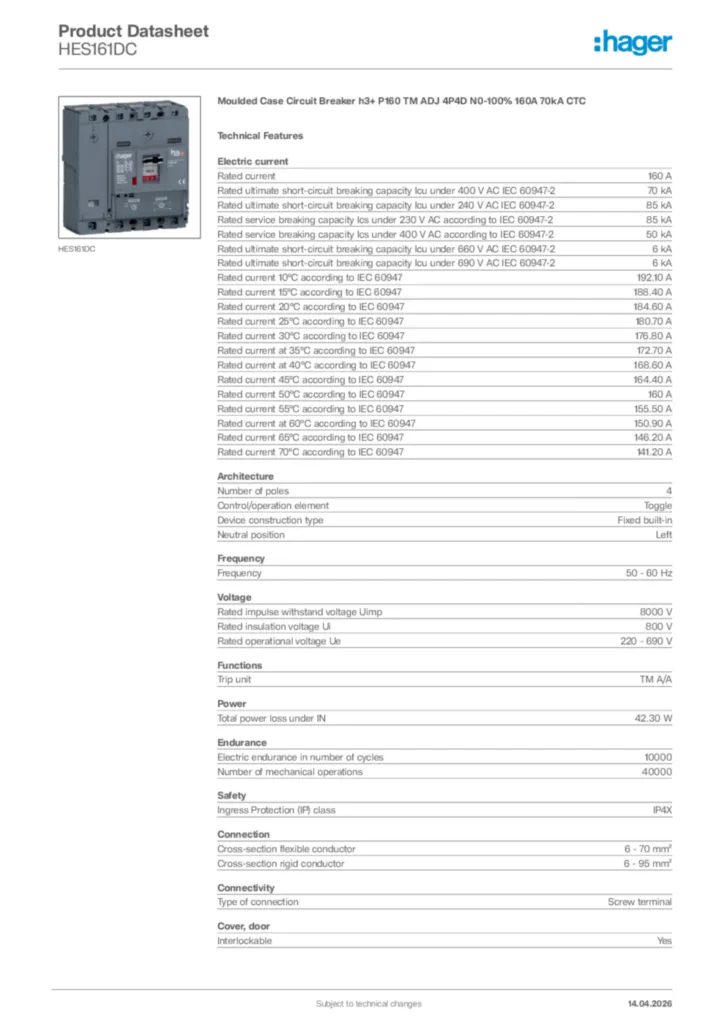

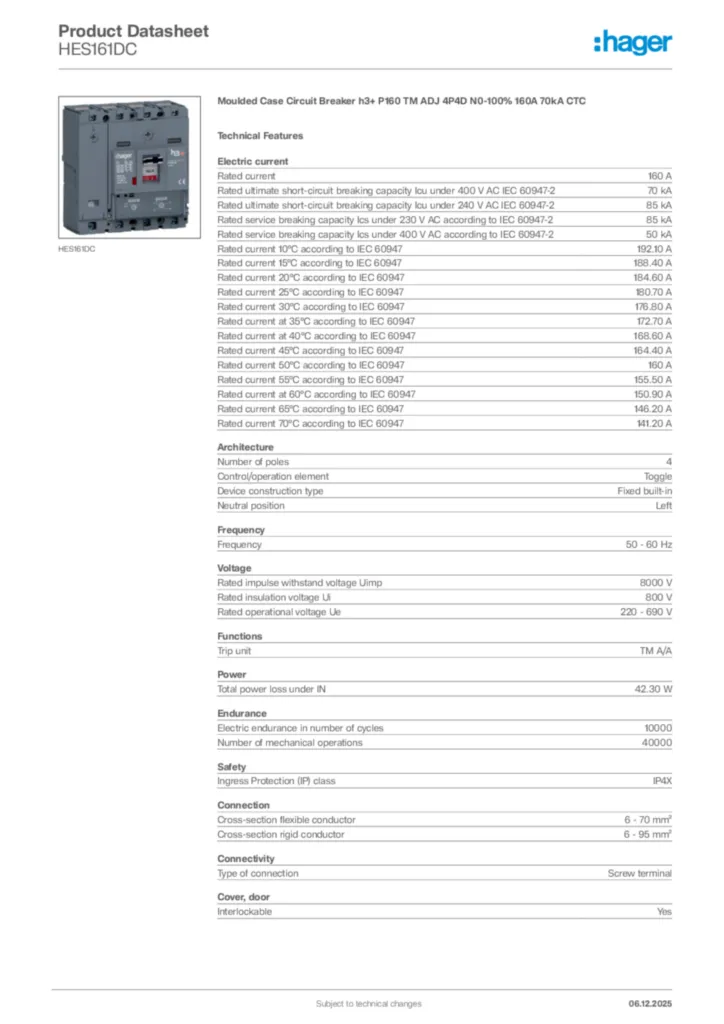

Hager Product data sheet HES161DC
