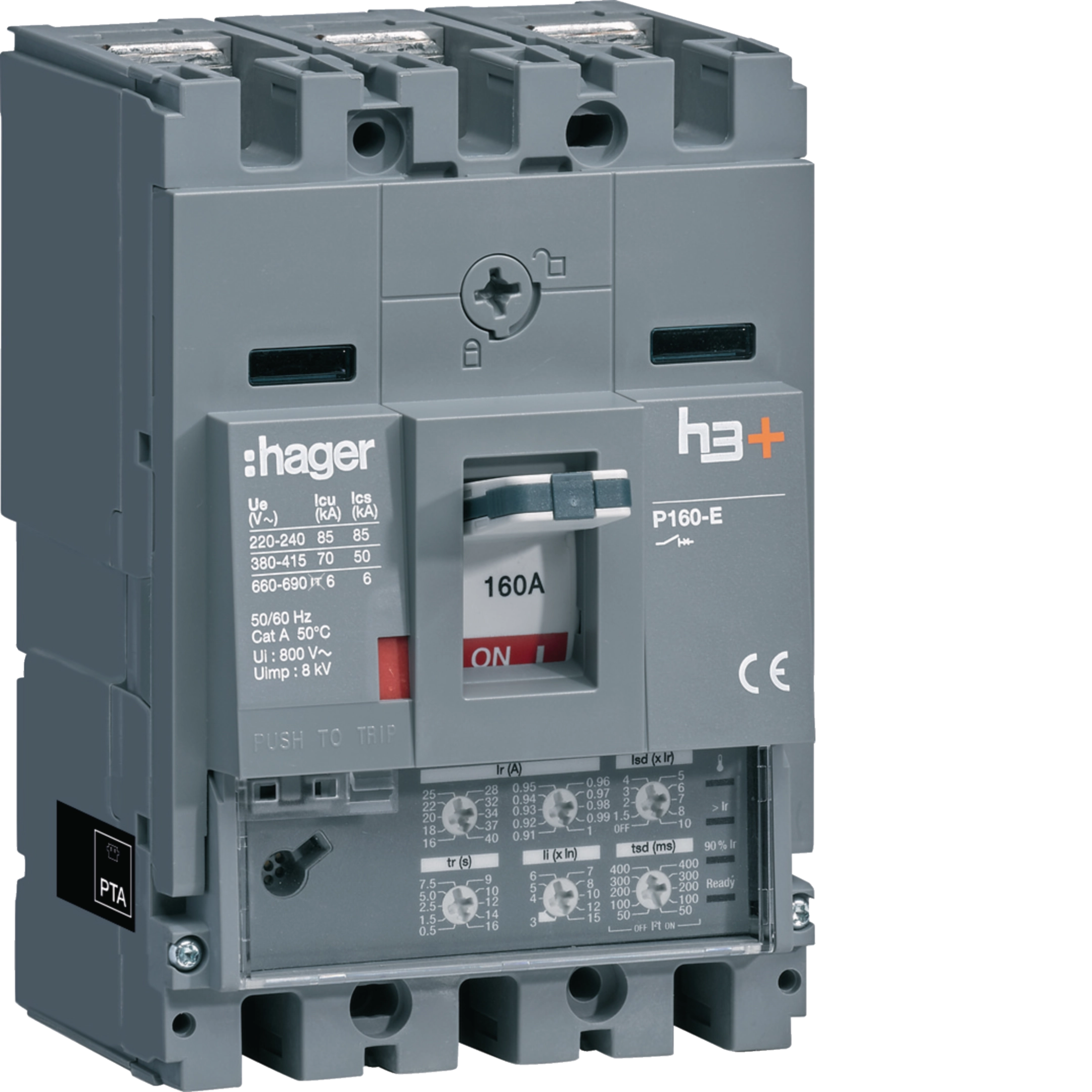

Moulded Case Circuit Breaker h3+ P160 LSI 3P3D 160A 70kA FTC HES160JR

Name: HES160JR
Brand: Hager
SKU: HES160JR11

EAN

3250613148836

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

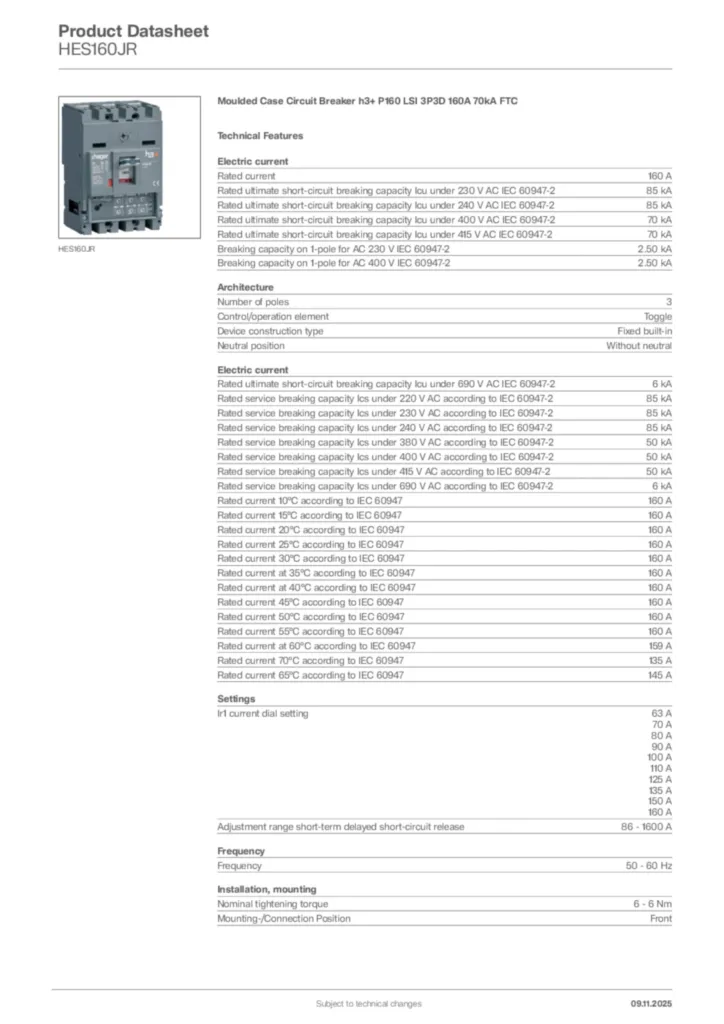

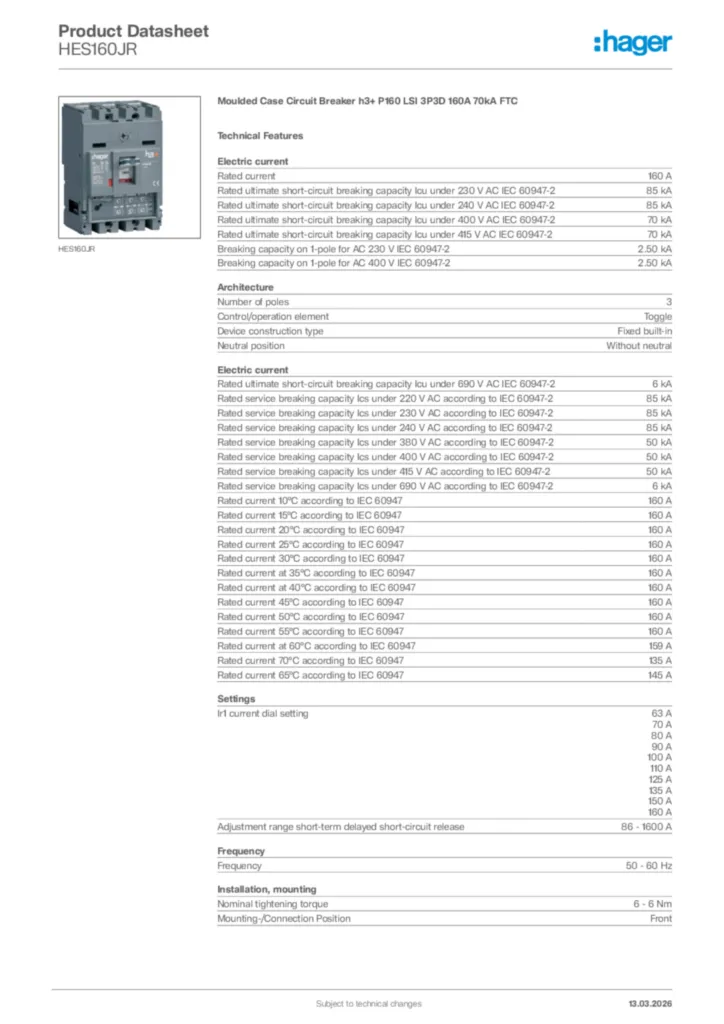

Download the data sheet

Complete your system

Auxiliaries contact block 5 products available
Shunt release 5 products available
Under voltage coil 8 products available
Auxiliaries cable adaptor 2 products available
Connection Functions 4 products available
Locking interlocking functions 5 products available

Technical properties

Rated current

160 A
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

85 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

70 kA
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-2

70 kA
Breaking capacity on 1-pole for AC 230 V IEC 60947-2

2.50 kA
Breaking capacity on 1-pole for AC 400 V IEC 60947-2

2.50 kA
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2

6 kA
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-2

85 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

85 kA
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-2

85 kA
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-2

6 kA
Rated current 10°C according to IEC 60947

160 A
Rated current 15°C according to IEC 60947

160 A
Rated current 20°C according to IEC 60947

160 A
Rated current 25°C according to IEC 60947

160 A
Rated current 30°C according to IEC 60947

160 A
Rated current at 35°C according to IEC 60947

160 A
Rated current at 40°C according to IEC 60947

160 A
Rated current 45°C according to IEC 60947

160 A
Rated current 50°C according to IEC 60947

160 A
Rated current 55°C according to IEC 60947

160 A
Rated current at 60°C according to IEC 60947

159 A
Rated current 70°C according to IEC 60947

135 A
Rated current 65°C according to IEC 60947

145 A

Number of poles

3
Control/operation element

Toggle
Device construction type

Fixed built-in
Neutral position

Without neutral

Ir1 current dial setting

63 A, 70 A, 80 A, 90 A, 100 A, 110 A, 125 A, 135 A, 150 A, 160 A
Adjustment range short-term delayed short-circuit release

86 - 1600 A

Frequency

50 - 60 Hz

Nominal tightening torque

6 - 6 Nm
Mounting-/Connection Position

Front

Rated impulse withstand voltage Uimp

8000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 690 V

Trip unit

LSI

Total power loss under IN

27 W
Power loss per pole at In

9 W

Electric endurance in number of cycles

10000
Number of mechanical operations

40000

Number of auxiliary contacts as change-over contact

0
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0

Ingress Protection (IP) class

IP4X

Operating temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

3

Cross-section flexible conductor

6 - 70 mm²
Cross-section rigid conductor

6 - 95 mm²
Connector/plug type

Terminal

Interlockable

Yes

Cable material

Copper, Aluminium

Height

130 mm
Width

90 mm
Depth

97 mm

Motor drive integrated

No

Suitable for DIN Rail

No
Compatible with RDC AOB

No
Suitable for distribution board

Yes

Position power supply

Bidirectional

Long-time overload protection (ltd): delay (tr)

0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
Short-time protection (std): current (Isd)

1.5, 2, 3, 4, 5, 6, 7, 8, 10
Short-time protection (std): delay (tsd)

50 ms, 100 ms, 200 ms, 300 ms, 400 ms
Instantaneous protection (li): dial setting coefficient

3, 4, 5, 6, 7, 8, 9, 10, 11

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
