The Hager h3+ P160 TM ADJ 4P4D N0-100% 63A MCCB delivers reliable circuit protection for 3-phase + neutral systems up to 690 V. High breaking capacity (Icu 70 kA at 400 V, 85 kA at 240 V; Ics 50 kA at 400 V) makes it ideal for commercial/industrial boards. Adjustable TM trip (0.63-1 x In; li 6-12 x In) enhances selectivity. 4P fixed, left neutral, IP4X, interlockable, screw terminals for 6-95 mm² Cu, 10k/40k cycles.

EAN

3250613177041

VPE

1 piece

Moulded case circuit breakers

Moulded Case Circuit Breaker h3+ P160 MAG 3P 80A 70kA Icu adjustable MAG trip HES064DC

Accessories
Technical characteristics
catalog.pageproduct.title_sustainability.h2
Documentations
More products

product.page.accessories.title

Under voltage coil 8 product.page.accessories.products-available
Handle for power circuit breaker 1 product.page.accessories.products-available
Handle with interlock for power breaker 1 product.page.accessories.products-available
Shunt release 5 product.page.accessories.products-available
Auxiliaries cable adaptor 2 product.page.accessories.products-available
Connection Functions 6 product.page.accessories.products-available

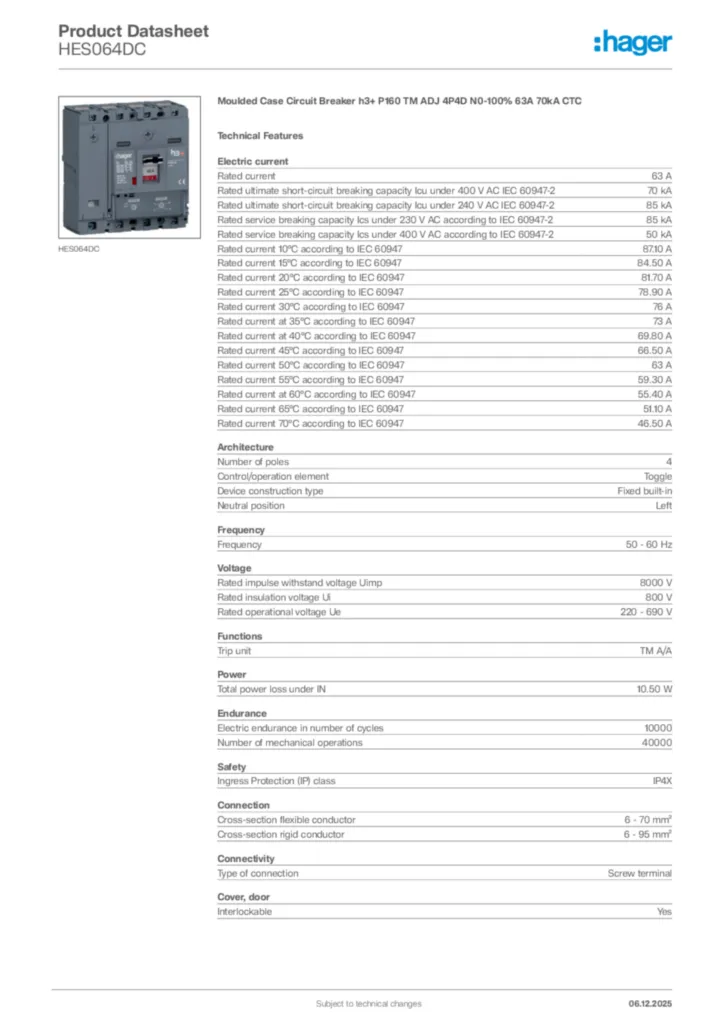

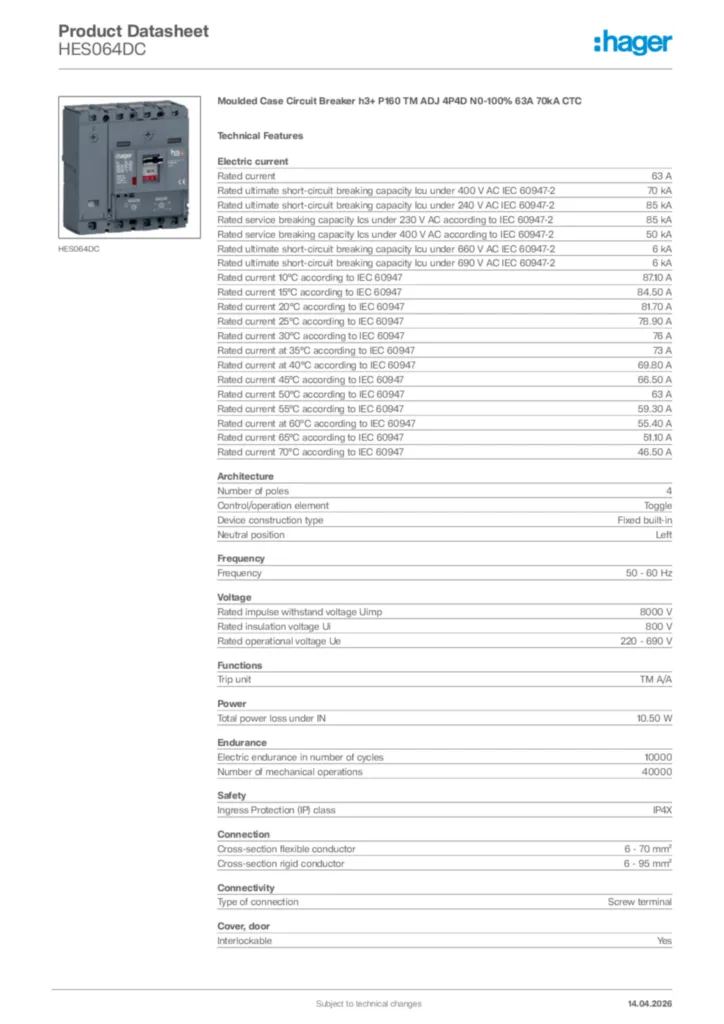

Technical characteristics

Rated current IN

63 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

70 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

85 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

50 kA
Rated ultimate short-circuit breaking capacity Icu under 660 V AC IEC 60947-2

6 kA
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2

6 kA
Rated current at 10°C according to IEC 60947

87.10 A
Rated current at 15°C according to IEC 60947

84.50 A
Rated current at 20°C according to IEC 60947

81.70 A
Rated current at 25°C according to IEC 60947

78.90 A
Rated current at 30°C according to IEC 60947

76 A
Rated current at 35°C according to IEC 60947

73 A
Rated current at 40°C according to IEC 60947

69.80 A
Rated current at 45°C according to IEC 60947

66.50 A
Rated current at 50°C according to IEC 60947

63 A
Rated current at 55°C according to IEC 60947

59.30 A
Rated current at 60°C according to IEC 60947

55.40 A
Rated current at 65°C according to IEC 60947

51.10 A
Rated current at 70°C according to IEC 60947

46.50 A

Number of poles

4
Control/operation element

Toggle
Device construction type

Fixed built-in
Neutral position

Left

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 690 V

Trip unit

TM A/A

Power dissipation at IN

10.50 W

Electric endurance in number of cycles

10000
Number of mechanical operations

40000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

6 - 70 mm²
Cross-section rigid conductor

6 - 95 mm²

Type of connection

Screw terminal

Interlockable

Yes

Thermal protection knob setting xIN

0.63, 0.8, 1

Cable material

Copper

Compatible with RDC AOB

No
Suitable for DIN Rail

No
Suitable for distribution board

Yes

Height

130 mm
Width

120 mm
Depth

97 mm

Instantaneous protection (li): dial setting coefficient

6, 8, 10, 12

Mounting-/Connection Position

Front
Nominal tightening torque

6 - 6 Nm
Nominal tightening torque down terminal

6 - 6 Nm
Nominal tightening torque top terminal

6 - 6 Nm

catalog.pageproduct.title_sustainability.h2

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
