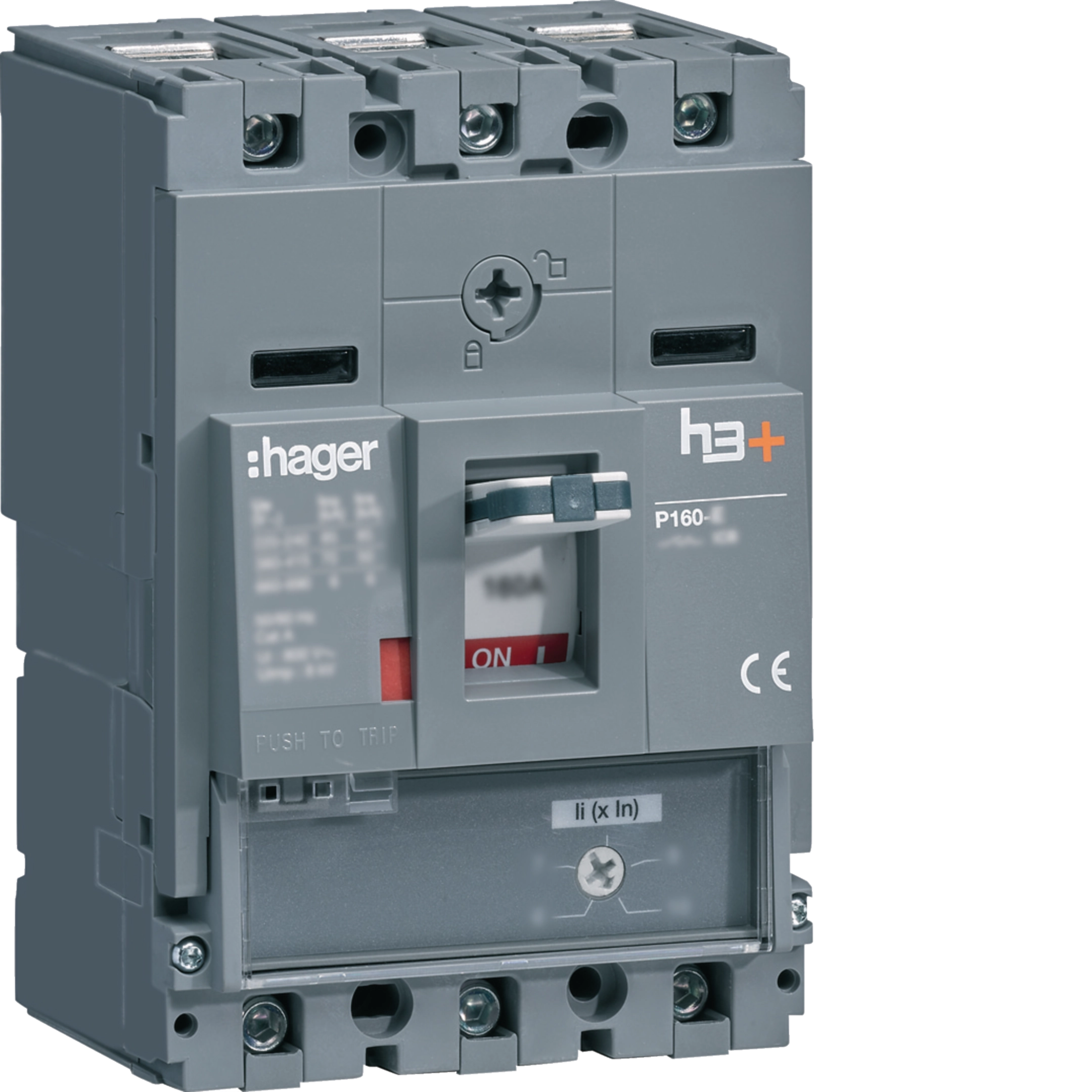

Moulded Case Circuit Breaker h3+ P160 MAG 3P3D 50A 70kA CTC HES050BC

EAN
3250613176990
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker h3+ P160 MAG 3P3D 50A 70kA CTC

HES050BC

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (44)
    • Auxil­i­aries contact block 5 products available
    • Shunt release 5 products available
    • Under voltage coil 8 products available
    • Auxil­i­aries cable adaptor 2 products available
    • Locking inter­locking func­tions 5 products available
    • Handle with inter­lock for power breaker 1 products available

    Complete your system

    • Auxil­i­aries contact block
    • Shunt release
    • Under voltage coil
    • Auxil­i­aries cable adaptor
    • Locking inter­locking func­tions
    • Handle with inter­lock for power breaker
    • Terminal cover
    • Chassis power breaker
    • DIN rail adapter
    • Connec­tion Func­tions
    • Mech­anic accessories for low-­voltage compon­ents
    • Phase separ­a­tion func­tions
    • Door coup­ling handle
    • Handle for power circuit breaker
    • HYC250H

      PM Auxiliary circuit terminal -Panel side- (P160..630 - h250..1000-x630)
      0.00 €  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA003H

      Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA055H

      UVR delayed 380-450V AC (x160-P160-x250-P250)
      0.00 €  / *
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA051H

      UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA054H

      UVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA053H

      UVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HYC352H

      PM Auxiliary circuit terminal -Body side- (2wires) (P160..630-h250..1000-x630)
      0.00 €  / *
    • HYC353H

      PM Auxiliary circuit terminal -Body side- (3wires) (P160..630-h250..1000-x630)
      0.00 €  / *
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      0.00 €  / *
    • HXS066H

      Mechanical interlocking front cover P160
      0.00 €  / *
    • HXB070H

      Interlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXB071H

      Interlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXS165H

      Direct interlocking kit P160 3P
      0.00 €  / *
    • HXS032H

      Direct rotary handle P160 with interlocking
      0.00 €  / *
    • HYS052H

      Earth plate for Spread terminal extension P160 3P
      0.00 €  / *
    • HYS050H

      Earth plate for Straight terminal extension P160 3P
      0.00 €  / *
    • HYS025H

      Terminal cover for Rear & Plug-in connection P160 3P
      0.00 €  / *
    • HYS023H

      Terminal cover for Spread terminal extension P160 3P
      0.00 €  / *
    • HYS021H

      Terminal cover for Straight terminal extension P160 3P
      0.00 €  / *
    • HYS321H

      Terminal cover for Plug-in base P160 3P
      0.00 €  / *
    • HYS300H

      Plug-in adaptor for P160 3P (63-160A)
      0.00 €  / *
    • HYS200H

      Plug-in base for P160 3P
      0.00 €  / *
    • HYS033H

      DIN Rail adaptator P160 3P/4P
      0.00 €  / *
    • HYS328H

      L connection terminal Plug-in P160 1P
      0.00 €  / *
    • HYS014H

      Spread terminal extension P160 3P cage version
      0.00 €  / *
    • HYS005H

      Cage terminal P160 cage version Al 3P 1x35-120mm²
      0.00 €  / *
    • HYS001H

      Cage terminal P160 cage version Cu/Al 3P 1x 10-95mm²
      0.00 €  / *
    • HYS031H

      Rear connection for P160 3P (16-50A)
      0.00 €  / *
    • HYS256H

      Safety trip (P160-P250)
      0.00 €  / *
    • HYS019H

      Interphase barrier for P160 3/4P
      0.00 €  / *
    • HXS031H

      Rotary handle on door for P160
      0.00 €  / *
    • HXS030H

      Direct rotary handle for P160
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      50 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      70 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
      50 kA
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    • Neutral posi­tion
      Without neutral
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8000 V
    • Rated insu­la­tion voltage Ui
      800 V
    Func­tions
    • Trip unit
      MAG (ICB)
    Power
    • Total power loss under IN
      22.50 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      10000
    • Number of mech­an­ical oper­a­tions
      40000
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      6 - 70 mm²
    • Cross-sec­tion rigid conductor
      6 - 95 mm²
    Connectivity
    • Type of connec­tion
      Screw terminal
    Cover, door
    • Inter­lock­able
      Yes
    Cable
    • Cable material
      Copper
    Dimen­sions
    • Height
      130 mm
    • Width
      90 mm
    • Depth
      97 mm
    Compat­ib­ility
    • Compat­ible with RDC AOB
      No
    • Suit­able for DIN Rail
      No
    • Suit­able for distri­bu­tion board
      Yes
    Install­a­tion, mounting
    • Nominal tight­ening torque
      6 - 6 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    • Nominal tight­ening torque down terminal
      6 - 6 Nm
    • Nominal tight­ening torque top terminal
      6 - 6 Nm
    Elec­trical protec­tion
    • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
      6, 8, 10, 12

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 100A 18kA CTC
    PDF
    14,81 MB
    Hager REACH declaration HES050BC
    PDF
    Hager RoHS report HES050BC
    PDF

    Downloads

    • Image HES050BC | Hager Africa

      Product Image HES050BC

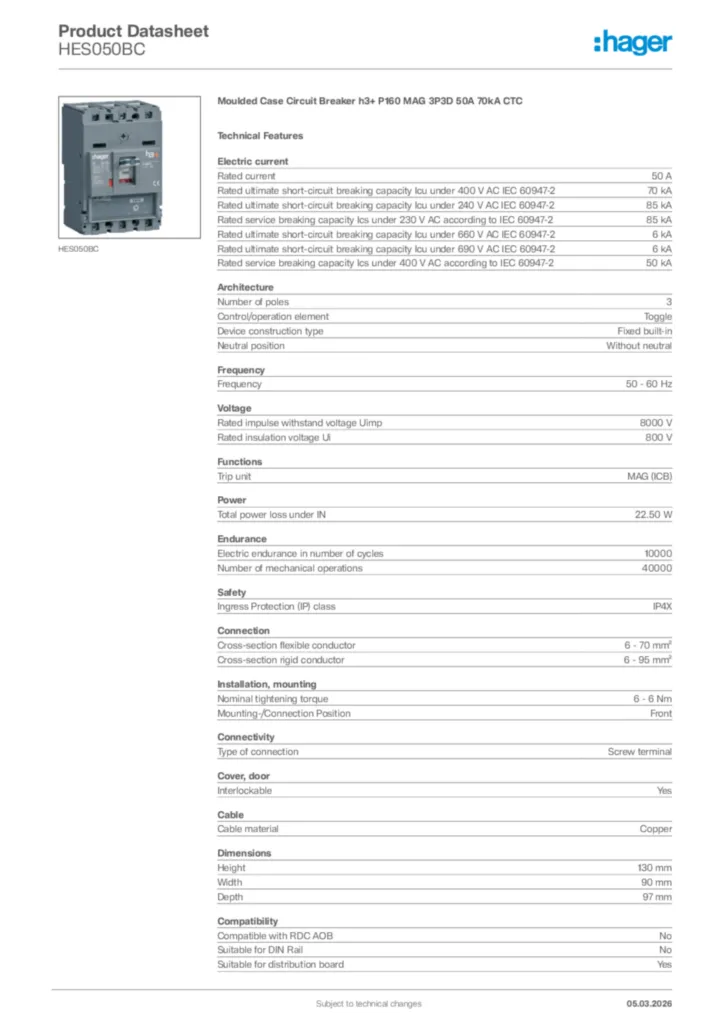

    • Product datasheet
