The Hager HA7 slotted panel trunking 40x30mm (RAL7035) neatly routes and secures wiring in control panels and switchboards. Made of halogen-free, self-extinguishing PC-ABS, it boosts safety and reduces smoke. Rigid design with 6 mm slots enables easy cable exit and tie anchoring. Supplied with cover, 2 m lengths speed installation and deliver a clean, professional finish.

EAN

4012740859868

Packaging

40 Meters

Plastic, halogen-free slotted cable ducts

Cover NewVegaD 150x500mm Plain Pure White 30mm Depth HA740030

Accessories
Technical properties
Environmental value
Documentations
More products

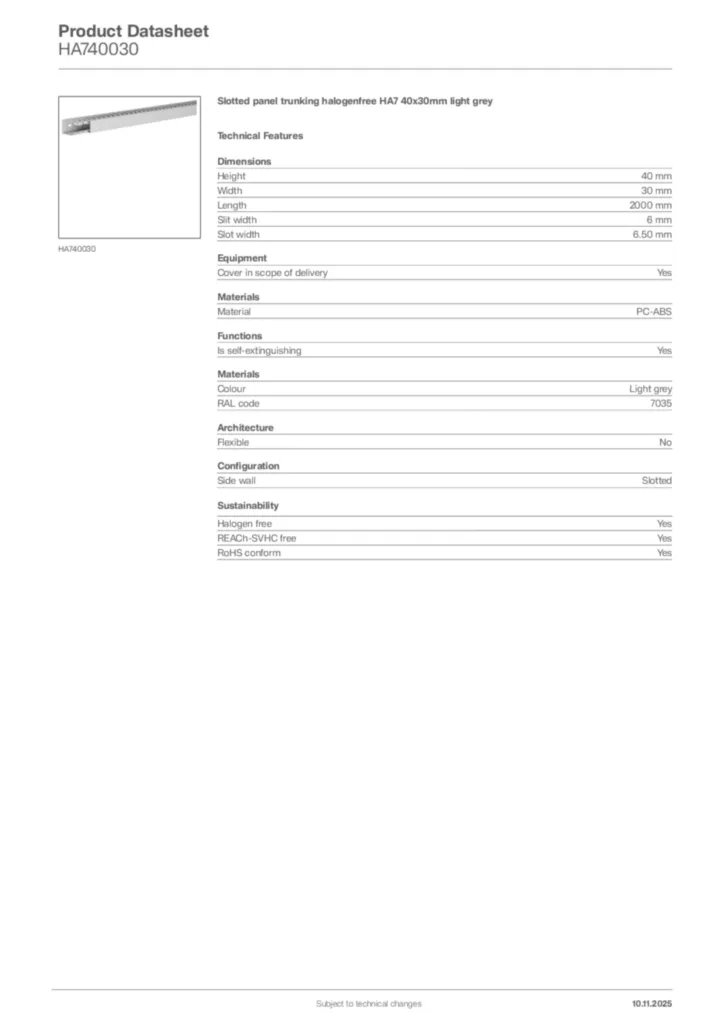

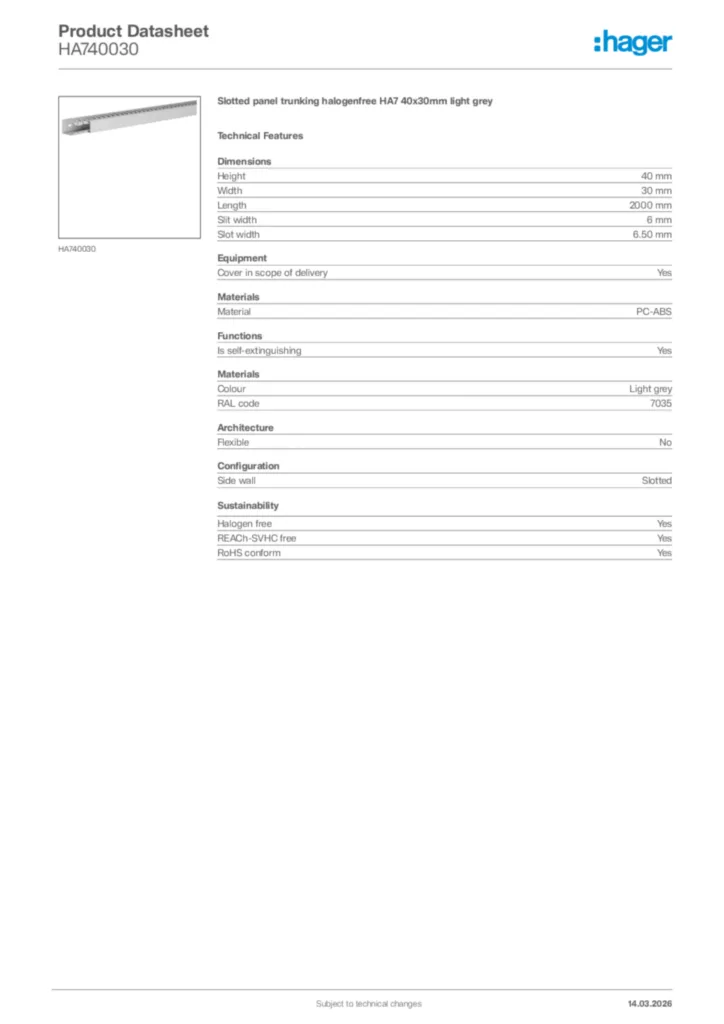

Download the data sheet

Complete your system

Spacer sleeve 2 products available
Draper hand riveter 3 products available
Screw rosette 1 products available
Shears for cutting trunking 1 products available

Technical properties

Height

40 mm
Width

30 mm
Length

2000 mm
Slit width

6 mm
Slot width

6.50 mm
Inner cross-section

669 - 669 mm²

Cover in scope of delivery

Yes

Material

PC-ABS
Colour

Light grey
RAL code

7035

Is self-extinguishing

Yes

Flexible

No

Side wall

Slotted

Mounting type

Screw mounting

Mounting on

Mounting plate

Is current leak stable

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
