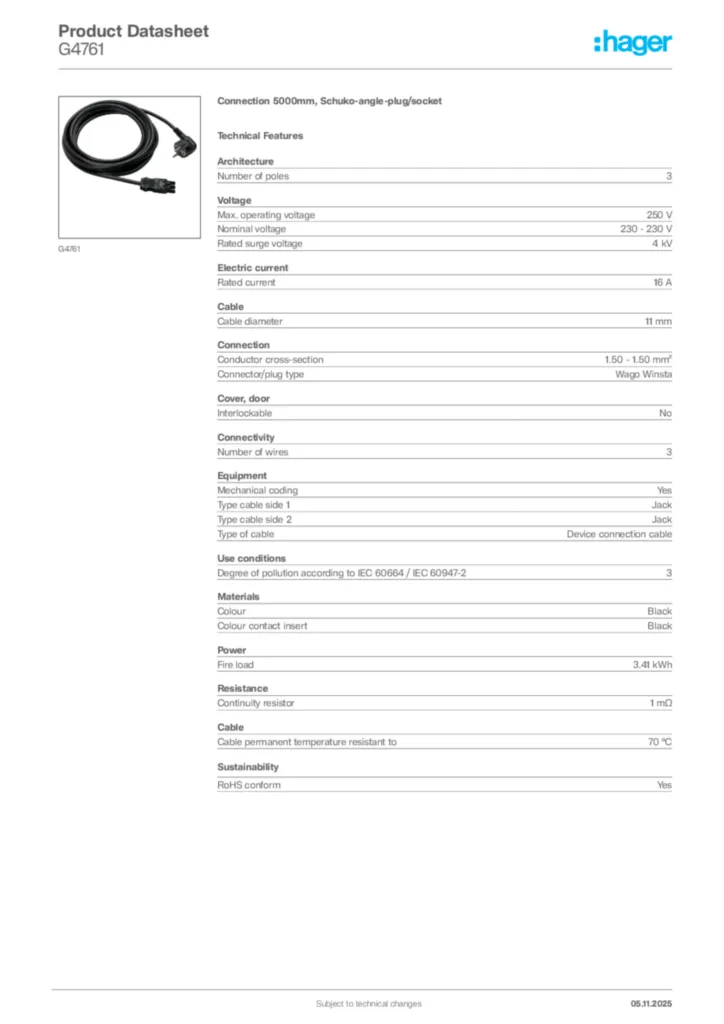

Hager 5 m device connection cable with Schuko angled plug and socket for safe, quick plug-and-play power. Rated 230 V/16 A (250 V max) with 4 kV surge withstand; 3-pole/3-wire, 1.5 mm² conductors, 11 mm Ø. WINSTA-compatible and mechanically coded to prevent mismatch. Black, low 1 mΩ continuity for reliable supply to appliances in residential or office use (pollution degree 3, 70°C).
EAN
4012740880619
Packaging
1 Piece
KNX radio motion detector 2.2 m quicklink SS matt 90-180° 5-1000 lx G4761
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles3
Voltage
-
Max. operating voltage250 V
-
Nominal voltage230 - 230 V
-
Rated surge voltage4 kV
Electric current
-
Rated current16 A
Cable
-
Cable diameter11 mm
-
Cable permanent temperature resistant to70 °C
Connection
-
Conductor cross-section1.50 - 1.50 mm²
-
Connector/plug typeWago Winsta
Connectivity
-
Number of wires3
Cover, door
-
InterlockableNo
Equipment
-
Mechanical codingYes
-
Type cable side 1Jack
-
Type cable side 2Jack
-
Type of cableDevice connection cable
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-23
Materials
-
ColourBlack
-
Colour contact insertBlack
Power
-
Fire load3.41 kWh
Resistance
-
Continuity resistor1 mΩ
