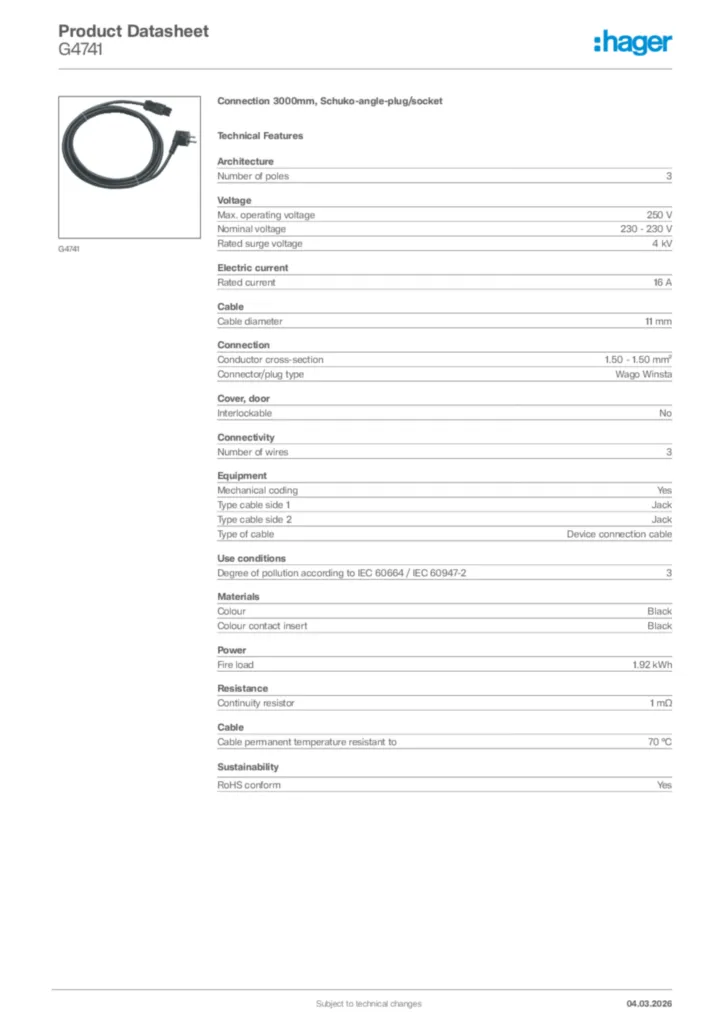

Connection 3000mm, Schuko-angle-plug/socket G4741
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles3
Voltage
-
Max. operating voltage250 V
-
Nominal voltage230 - 230 V
-
Rated surge voltage4 kV
Electric current
-
Rated current16 A
Cable
-
Cable diameter11 mm
-
Cable permanent temperature resistant to70 °C
Connection
-
Conductor cross-section1.50 - 1.50 mm²
-
Connector/plug typeWago Winsta
Connectivity
-
Number of wires3
Cover, door
-
InterlockableNo
Equipment
-
Mechanical codingYes
-
Type cable side 1Jack
-
Type cable side 2Jack
-
Type of cableDevice connection cable
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-23
Materials
-
ColourBlack
-
Colour contact insertBlack
Power
-
Fire load1.92 kWh
Resistance
-
Continuity resistor1 mΩ
