Door, univers, right, plain, RAL 9010, for enclosure IP44 1100x550mm FZ022N

EAN
3250612776702
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Door, univers, right, plain, RAL 9010, for enclosure IP44 1100x550mm

FZ022N

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Docu­ment holder 3 products available
  • Lock system 15 products available

Compatible products

  • Referenced by 15 products available

Complete your system

  • Docu­ment holder
  • Lock system
  • FZ707

    Document holder, metal, with screws for door mounting
    0.00 €  / *
  • FZ794

    Document holder, transparent, DIN A4, adhesive
    0.00 €  / *
  • FZ818

    Document holder, plastic, DIN A4, adhesive
    0.00 €  / *
  • FZ597

    Locking, univers, with 2keys, for IP43
    0.00 €  / *
  • FZ453N

    Lock, univers, cylinder Nr.455, with 2 keys, for enclosure IP44/54
    0.00 €  / *
  • FZ452N

    Lock, univers, cylinder Nr.405, with 2 keys, for enclosure IP44/54
    0.00 €  / *
  • FZ451N

    Lock, univers, square 7mm, with 1 key, for enclosure IP44/54
    0.00 €  / *
  • FZ449N

    Lock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
    0.00 €  / *
  • FZ597N

    Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54
    0.00 €  / *
  • FZ453

    Lock, cylinder Nr.455, with 2 keys, for enclosure univers IP43 and Quadro 4-5
    0.00 €  / *
  • FZ452

    Lock, cylinder Nr.405, with 2 keys, for enclosure univers IP43 and Quadro4-5
    0.00 €  / *
  • FZ598N

    Door shield with handle, for enclosure univers IP44
    0.00 €  / *
  • FZ821N

    Lock, univers, square 8mm with seal cover, for enclosure IP44, with 1 key
    0.00 €  / *
  • FZ822N

    Lock, univers, square 7mm with seal cover, for enclosure IP44, with 1 key
    0.00 €  / *
  • FZ823N

    Lock, univers, plastic slot with seal cover for enclosure IP44
    0.00 €  / *
  • FZ824N

    Lock, univers, cylinder Nr.1242E with seal cover and 2 keys
    0.00 €  / *
  • FZ226

    Sealing cap, univers, for Door of IP44/54 enclosures
    0.00 €  / *
  • FZ503CN

    Lock, univers, square closing 6mm, with 1 key, IP44/54, swiss version
    0.00 €  / *

Referenced by

  • FWB74S

    FWB encl., univers, 7-rows 336 modules cl.II IP44 w.plain door, 1100x1050x161mm, QC
    0.00 €  / *
  • FWB73S

    FWB encl., univers, 7-rows 252 modules cl.II IP44 w.plain door, 1100x800x161mm, QC
    0.00 €  / *
  • FWB72S

    FWB encl., univers, 7-rows 168 modules cl.II IP44 w.plain door, 1100x550x161mm, QC
    0.00 €  / *
  • FWU72S

    FW flush encl. 7-rows 168 modules, IP30, classII, niche 1107x565x115mm
    0.00 €  / *
  • FWU73S

    FW flush encl. 7-rows 252 modules, IP30, classII, niche 1107x815x115mm
    0.00 €  / *
  • FWU72D

    FW flush encl.2x7-rows, empty, IP30, classII, niche 1107x565x115mm
    0.00 €  / *
  • FWU73D

    FW flush encl. 3x7-rows, empty, IP30, classII, niche 1107x815x115mm
    0.00 €  / *
  • FWB72N3

    FWB encl., univers, IP44, classII, 120mod, interaxis 150mm, 1100x550x161mm
    0.00 €  / *
  • FWB73N3

    FWB encl., univers, IP44, classII, 180mod, interaxis 150mm, 1100x800x161mm
    0.00 €  / *
  • FWB74N3

    FWB encl., univers, IP44, classII, 240mod, interaxis 150mm, 1100x1050x161mm
    0.00 €  / *
  • FWU72GS

    FW flush encl. 168mod, with transp. door, IP30, classII, niche 1107x565x115mm
    0.00 €  / *
  • FWB72GS

    FWB encl. univers, surface mount., IP44, classII, w. transp.door, 950x550x161mm, QC
    0.00 €  / *
  • FWB74GS

    FWB encl. univers, surface mount., IP44, classII, w. transp.door, 1100x1050x161mm, QC
    0.00 €  / *
  • FWB72M2

    FWB encl. univers, IP44, class II, 7x26mod., 1100x550x161mm, QuickConnect
    0.00 €  / *
  • FWB73GS

    FWB encl., univers, surface mount., IP44, classII, w. transp.door, 1100x800x161mm, QC
    0.00 €  / *

Technical properties

Dimen­sions
  • Height
    1069 mm
  • Width
    519 mm
  • Depth
    12 mm
Cover, door
  • Door/­cover is trans­parent
    No
  • Number of cabinet doors
    1
  • Cabinet door type
    Partial door
  • Type of handle
    Hinged pattern handle
  • Number of locks
    1
Mater­ials
  • RAL code
    9010
  • Colour
    Pure white
  • Material
    Steel
  • Treat­ment
    Powder coated
Archi­tec­ture
  • Cabinet Door Posi­tion
    Right
Safety
  • Ingress Protec­tion (IP) class
    IP44
  • Locking type
    Bar lock
Equip­ment
  • Number of section in width
    2
  • Number of rows
    7

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

FWB enclosure,UNIVERS range, 5-rows 180 modules
PDF
49,47 MB
Hager REACH declaration FZ022N
PDF
Hager RoHS report FZ022N
PDF

Downloads

  • Image FZ022N | Hager Africa

    Product Image FZ022N

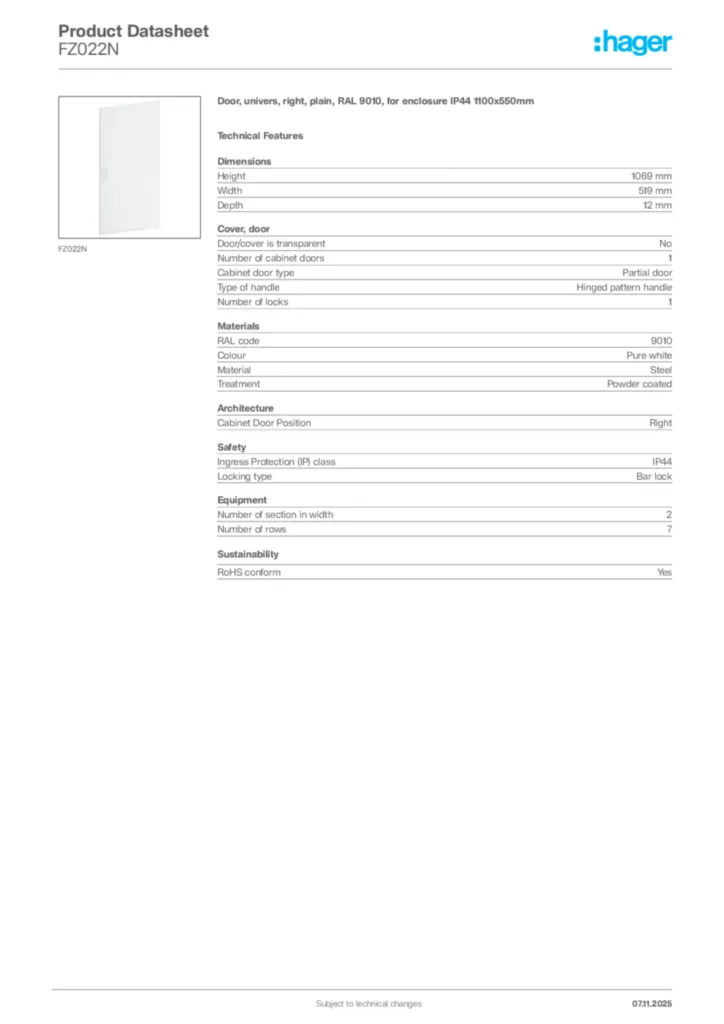

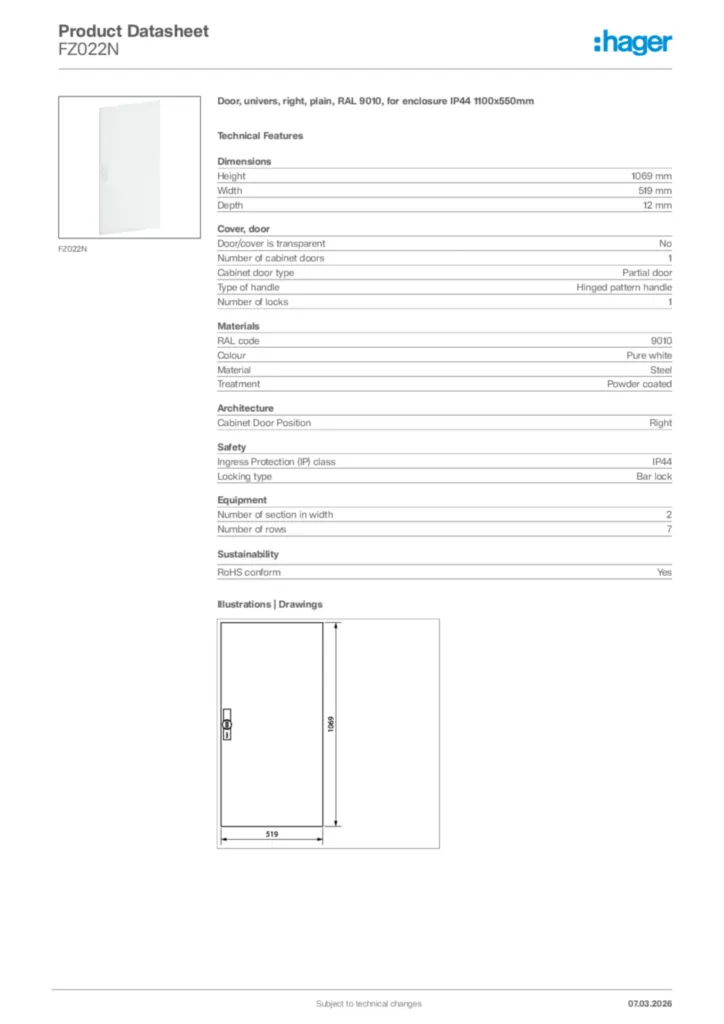

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Declaration of conformity

    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2023-05-12

    PDF
    332,34 kB
    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-01-08

    PDF
    289,50 kB
