FW flush encl. 168mod, with transp. door, IP30, classII, niche 1107x565x115mm FWU72GS

EAN
3250610660515
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

FW flush encl. 168mod, with transp. door, IP30, classII, niche 1107x565x115mm

FWU72GS

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

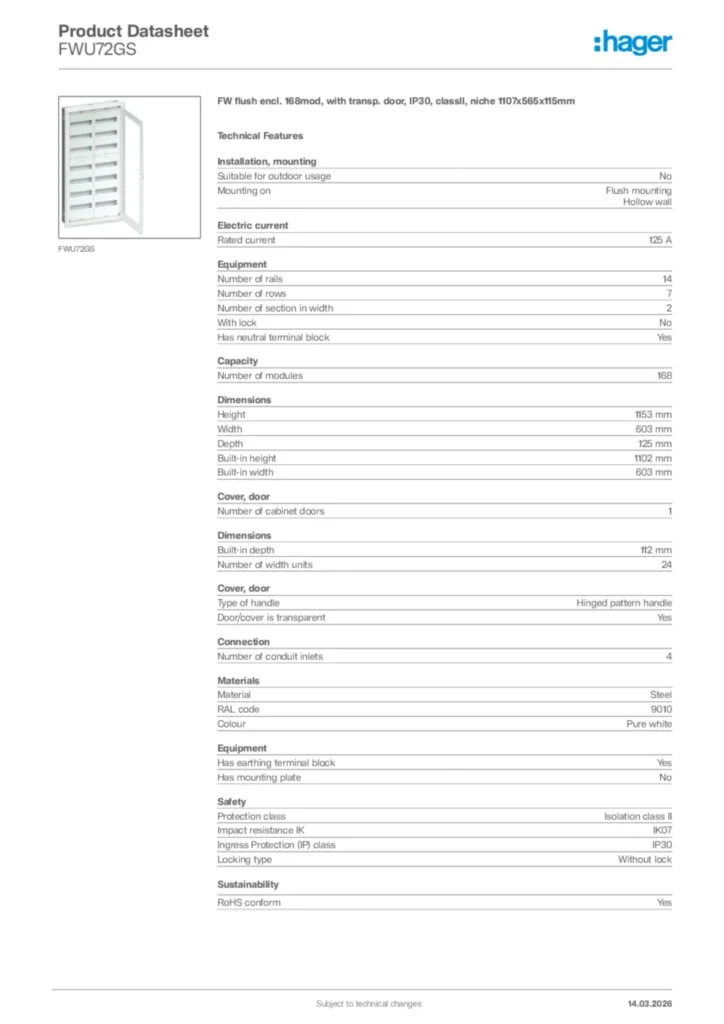

Download the data sheet

Complete your system

Optional accessories

  • See more (50)
    • Built-in field for tele­com­mu­nic­a­tions 7 products available
    • Rail terminal bar 4 products available
    • DIN rail 1 products available
    • Mounting accessories 2 products available
    • Cover strip 1 products available
    • Lock system 7 products available

    Complete your system

    • Built-in field for tele­com­mu­nic­a­tions
    • Rail terminal bar
    • DIN rail
    • Mounting accessories
    • Cover strip
    • Lock system
    • Accessor­ies/s­pare parts for terminals
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Cover for install­a­tion duct
    • Mounting plate for distri­bu­tion board
    • Door/­op­er­ating panel
    • Cover for distri­bu­tion board
    • Touch-up stick
    • Vent­il­ator for enclosure
    • Gland plate for enclosure
    • Docu­ment holder
    • UN31TN

      Kit, univers FW, media with perforated mounting plate, 450x250mm

      0.00 €  / *
    • UN41TN

      Kit, univers FW, media with perforated mounting plate, 600x250mm

      0.00 €  / *
    • UN42TN

      Kit, univers FW, media with perforated mounting plate, 600x500mm

      0.00 €  / *
    • UN51TN

      Kit, univers FW, media with perforated mounting plate, 750x250mm

      0.00 €  / *
    • UN61TN

      Kit, univers FW, media with perforated mounting plate, 900x250mm

      0.00 €  / *
    • UN71TN

      Kit, univers FW, media with perforated mounting plate, 1050x250mm

      0.00 €  / *
    • UN72TN

      Kit, univers FW, media with perforated mounting plate, 1050x500mm

      0.00 €  / *
    • KM13A

      PE/N Terminal, universZ, 2x13 clamping points, 6x16/7x10 mm²

      0.00 €  / *
    • KM22A

      PE/N Terminal, univers Z, 2x22 clamping points, 10x16/12x10 mm²

      0.00 €  / *
    • KM25A

      PE/N Terminal, univers Z, 2x25 clamping points, 11x16/14x10 mm²

      0.00 €  / *
    • KM05B

      PE/N Terminal, universZ, 4x5 clamping points, 2x6/2x10/1x25mm², with clamp for 25mm²

      0.00 €  / *
    • UT22C

      Insulated DIN rail, univers, 7, 5mm high, deep-adjustable until 21mm, 11, 5 mod. wide

      0.00 €  / *
    • VZ405N

      Mounting kit for hollow wall, Volta, VegaD, FWU, for wall box fixation, 4 pcs.

      0.00 €  / *
    • FZ279

      Deep-adjustment kit, 12 to 32mm, for frame of FW flush enclosure FWxxU.

      0.00 €  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm

      0.00 €  / *
    • FZ453N

      Lock, univers, cylinder Nr.455, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ452N

      Lock, univers, cylinder Nr.405, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ451N

      Lock, univers, square 7mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ450N

      Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54

      0.00 €  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ598N

      Door shield with handle, for enclosure univers IP44

      0.00 €  / *
    • FZ226

      Sealing cap, univers, for Door of IP44/54 enclosures

      0.00 €  / *
    • KN00A

      Terminal carrier, QC, universal adapter

      0.00 €  / *
    • UZ00K1

      Connection support, univers, for DIN rail mounting of QuickConnect modules

      0.00 €  / *
    • ZZ10H

      Partition, univers Z, horizontal, 1-field width

      0.00 €  / *
    • FWU00V7

      Partition plate vertical for 7-rows FWU flush encl. height 1100mm

      0.00 €  / *
    • FWU00P1

      Cable entry plate f. flush enclosure FWU

      0.00 €  / *
    • FWU00F1

      Association kit for univers FW enclosures, horizontal or vertical

      0.00 €  / *
    • UZ41M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 650mm

      0.00 €  / *
    • UZ42M5

      Mounting plate univers, for telcommunication, 2field, for enclosure height 650mm

      0.00 €  / *
    • UZ52M5

      Mounting plate univers, for telcommunication, 2field, for enclosure height 800mm

      0.00 €  / *
    • UZ62M5

      Mounting plate univers, for telcommunication, 2field, for enclosure height 950mm

      0.00 €  / *
    • FZ102N

      Door, univers, right, transparent, for enclosure H:1100xW:550mm

      0.00 €  / *
    • FZ022N

      Door, univers, right, plain, RAL 9010, for enclosure IP44 1100x550mm

      0.00 €  / *
    • FZ172F

      Frame, univers FW, with plain door, IP30, 90SL, RAL9010 for FWU72.., height 13mm

      0.00 €  / *
    • US31A3

      Cover plate, universN, 450x250mm, 3x12M, slot distance 125mm

      0.00 €  / *
    • US41A5

      Cover plate, universN, 600x250mm, 4x12M, slot distance 125mm

      0.00 €  / *
    • US51A5

      Cover plate, universN, 250x750mm, 5x12 Modules, slit gap 125mm

      0.00 €  / *
    • US61A5

      Cover plate, universN, 900x250mm, 6x12M, gap distance 125mm

      0.00 €  / *
    • US31A1

      Cover plate, universN, 450x250mm, plain

      0.00 €  / *
    • US32A1

      Cover plate, universN, 450x500mm, plain

      0.00 €  / *
    • US41A1

      Cover plate, universN, 600x250mm, plain

      0.00 €  / *
    • US42A1

      Cover plate, universN, 600x500mm, plain

      0.00 €  / *
    • US51A1

      Cover plate, universN, 750x250mm, plain

      0.00 €  / *
    • US11A3

      Cover plate, universN, 150x250mm, 1x12M, slot asymmetric

      0.00 €  / *
    • US21A3

      Cover plate, universN, 300x250mm, 2x12M, slot distance 125mm

      0.00 €  / *
    • FZ791N

      Touch-up pencil, 9ml, color RAL 9010

      0.00 €  / *
    • FD00P5

      Kit, NewVegaD, universFW, with 2 aeration grids, for FD…, FWU...

      0.00 €  / *
    • VZ741

      Rear cable entry flange IP41 for NewVegaD and Univers FW boards

      0.00 €  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive

      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting, Hollow wall
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rails
      14
    • Number of rows
      7
    • Number of section in width
      2
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      168
    Dimen­sions
    • Height
      1153 mm
    • Width
      603 mm
    • Depth
      125 mm
    • Built-in height
      1102 mm
    • Built-in width
      603 mm
    • Built-in depth
      112 mm
    • Number of width units
      24
    Cover, door
    • Number of cabinet doors
      1
    • Type of handle
      Hinged pattern handle
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    FWB enclosure,UNIVERS range, 5-rows 180 modules
    PDF
    49,47 MB
    Hager REACH declaration FWU72GS
    PDF
    Hager RoHS report FWU72GS
    PDF

    Downloads

    • Image FWU72GS  | Hager Africa

      Product Image FWU72GS

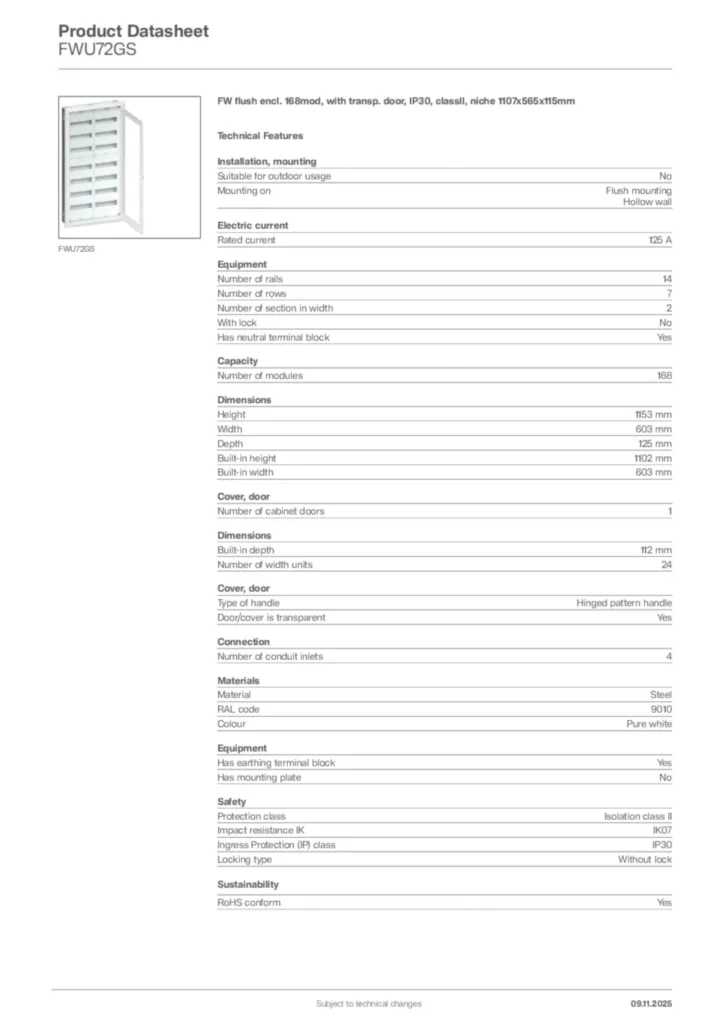

    • Product datasheet

      Image undefined  | Hager Africa

      undefined

      PDF
    • Handbook

      Image Handbook en-GB 2023-04-11  | Hager Africa

      Handbook en-GB 2023-04-11

      PDF
      5,83 MB
    • Declaration of conformity

      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-08-29

      PDF
      143,25 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      1,44 MB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2021-01-08

      PDF
      289,50 kB
