    • Home
    • Catalog
    • Distri­bu­tion systems
    • Small distri­bu­tion boards up to 160 A
    • FW surface-­mounted distri­bu­tion board
    • FWB81S
    EAN
    3250612740093
    Packaging
    1 Piece
    • FW surface-­mounted distri­bu­tion board

    FWB encl.,univers,8-rows 96 modules cl.II IP44 w.plain door, 1250x300x161mm,QC FWB81S

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    FWB encl.,univers,8-rows 96 modules cl.II IP44 w.plain door, 1250x300x161mm,QC

    FWB81S

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (51)
    • Rail terminal bar 4 products available
    • Lock system 5 products available
    • Cover strip 1 products available
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 2 products available
    • Docu­ment holder 3 products available
    • Gland plate for enclosure 5 products available

    Complete your system

    • Rail terminal bar
    • Lock system
    • Cover strip
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Docu­ment holder
    • Gland plate for enclosure
    • Compon­ents for arrange­ment/baying system
    • DIN rail
    • Built-in field for tele­com­mu­nic­a­tions
    • Mounting plate for distri­bu­tion board
    • Feed-­through terminal block
    • Trans­ition cover section for install­a­tion duct
    • Mounting accessories
    • Accessor­ies/s­pare parts for terminals
    • Cover for distri­bu­tion board
    • Touch-up stick
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • KM13A

      PE/N Terminal, universZ, 2x13 clamping points, 6x16/7x10 mm²

      0.00 €  / *
    • KM22A

      PE/N Terminal, univers Z, 2x22 clamping points, 10x16/12x10 mm²

      0.00 €  / *
    • KM25A

      PE/N Terminal, univers Z, 2x25 clamping points, 11x16/14x10 mm²

      0.00 €  / *
    • KM05B

      PE/N Terminal, universZ, 4x5 clamping points, 2x6/2x10/1x25mm², with clamp for 25mm²

      0.00 €  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ821N

      Lock, univers, square 8mm with seal cover, for enclosure IP44, with 1 key

      0.00 €  / *
    • FZ822N

      Lock, univers, square 7mm with seal cover, for enclosure IP44, with 1 key

      0.00 €  / *
    • FZ823N

      Lock, univers, plastic slot with seal cover for enclosure IP44

      0.00 €  / *
    • FZ824N

      Lock, univers, cylinder Nr.1242E with seal cover and 2 keys

      0.00 €  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm

      0.00 €  / *
    • UZ01F1

      Partition horizontal for FWB/FWQ surface encl., 1 section, screwable

      0.00 €  / *
    • ZZ10H

      Partition, univers Z, horizontal, 1-field width

      0.00 €  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive

      0.00 €  / *
    • FZ818

      Document holder, plastic, DIN A4, adhesive

      0.00 €  / *
    • FZ710

      Document holder, Univers

      0.00 €  / *
    • FZ428

      Cable entry plate, univers, for enclosure IP44 / IP54, back side, D160 / 205 mm

      0.00 €  / *
    • FZ425

      Cable entry plate, univers, for sealed area, with cut-outs, IP44/54

      0.00 €  / *
    • FZ460N

      Cable entry plate, univers, IP44/54, 6 x M16, 2 x M20, 2 x M16/25 1 x M25/40/50

      0.00 €  / *
    • FZ466N

      Cable entry plate, univers, IP44/54 with 15 x M16 and 4 x M20 precuts

      0.00 €  / *
    • FZ468N

      Cable entry plate, univers, IP44/54, w/o precuts

      0.00 €  / *
    • FZ890N

      Wall fixation rail, univers, 2m, for enclosure IP44 / IP54

      0.00 €  / *
    • FZ441B

      Associaton kit univers, vertical, for enclosures 1-section D:160/205mm

      0.00 €  / *
    • U82A

      DIN rail, univers, 7, 5 mm, depth-adjustable until 32, 5mm, 11 modules wide (200mm)

      0.00 €  / *
    • UT22C

      Insulated DIN rail, univers, 7, 5mm high, deep-adjustable until 21mm, 11, 5 mod. wide

      0.00 €  / *
    • U842B

      DIN rail, universZ, 35x248x7, 5mm, galvanized steel

      0.00 €  / *
    • UM81UK

      Kit with plastic mounting plates for Multimedia applications, 1200x250mm

      0.00 €  / *
    • UT26A

      Mounting plate, univers, deep-adjustable until 27mm, 1-row, 115x210x2, 5mm

      0.00 €  / *
    • UT26B

      Mounting plate, univers, deep-adjustable until 27mm, 2-rows, 215x210x2, 5mm

      0.00 €  / *
    • UZ31M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 500mm

      0.00 €  / *
    • UZ41M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 650mm

      0.00 €  / *
    • UZ51M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 800mm

      0.00 €  / *
    • UZ61M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 950mm

      0.00 €  / *
    • UZ21M6

      Mounting plate, univers, 240x247mm, perforated, with mounting screws

      0.00 €  / *
    • UZ31M6

      Mounting plate, univers, 390x247mm, perforated, with mounting screws

      0.00 €  / *
    • UZ41M6

      Mounting plate, univers, 570x247mm, perforated, with mounting screws

      0.00 €  / *
    • UZ51M6

      Mounting plate, univers, 720x247mm, perforated, with mounting screws

      0.00 €  / *
    • UZ61M6

      Mounting plate, univers, 870x247mm, perforated, with mounting screws

      0.00 €  / *
    • KXA04LH

      Feed-through terminal-phase , 4mm² , 800V/32A, screw connection

      0.00 €  / *
    • FZ441

      cable cover, 1-section, wall fixation, Hx W x D195 x 300 x 155mm, RAL9010

      0.00 €  / *
    • FZ441N

      cable cover, 1-section, box fixation, Hx W x D176 x 300 x 135mm, RAL9010,

      0.00 €  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces

      0.00 €  / *
    • UZ25V1

      Cable bracket, universN, big section, 20 pieces

      0.00 €  / *
    • UZ01A2

      Tower upper part, universZ, low level

      0.00 €  / *
    • UZ01V2

      Support, universZ, simple, for cable bracket, 20 pieces

      0.00 €  / *
    • UZ03A1

      Tower underpart, universZ, with snap-in spring

      0.00 €  / *
    • FZ803B

      Mounting brackets, univers, for enclosure IP44/IP54, outside

      0.00 €  / *
    • UZ04A1

      Double tower, universZ, low level, with screws

      0.00 €  / *
    • KN00A

      Terminal carrier, QC, universal adapter

      0.00 €  / *
    • US41A1

      Cover plate, universN, 600x250mm, plain

      0.00 €  / *
    • FZ791N

      Touch-up pencil, 9ml, color RAL 9010

      0.00 €  / *
    • FZ31B

      Flush frame universZ, 1-field, RAL9010, for enclosure 1100x300mm

      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rails
      8
    • Number of rows
      8
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      96
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      1250 mm
    • Width
      300 mm
    • Depth
      165 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Type of handle
      Hinged pattern handle
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK09
    • Ingress Protec­tion (IP) class
      IP44

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Enclosures FWP, univers, IP44, SKII, 120PLE (english)
    PDF
    8,50 MB
    REACH declaration FWB81S
    PDF
    Hager RoHS report FWB81S
    PDF

    Downloads

    • Image FWB81S  | Hager Africa

      Product Image FWB81S

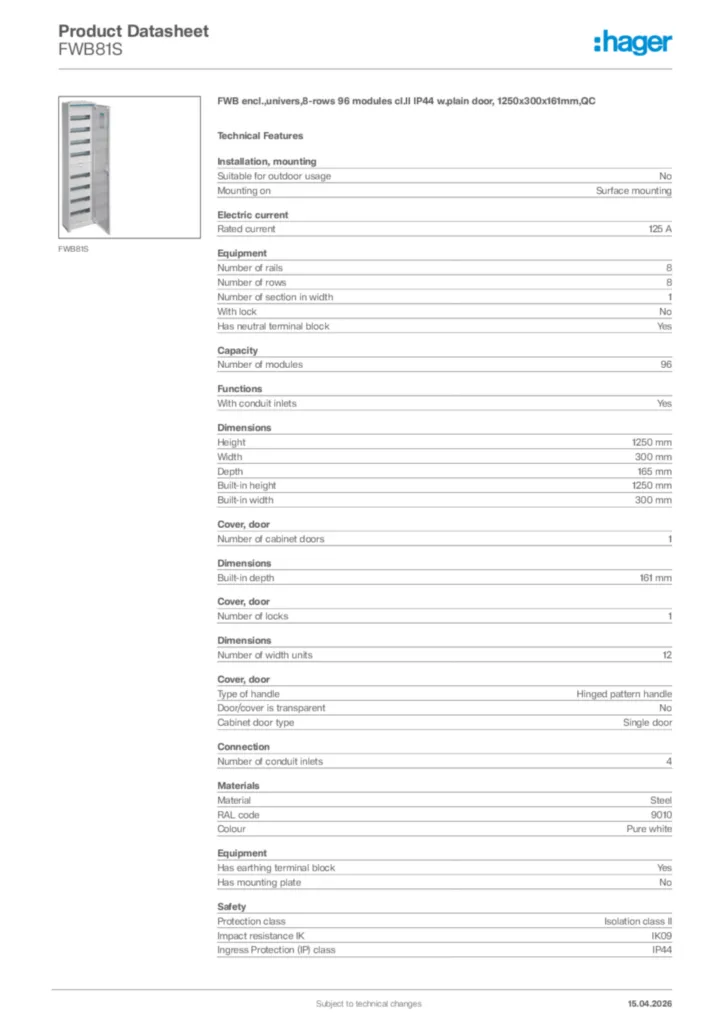

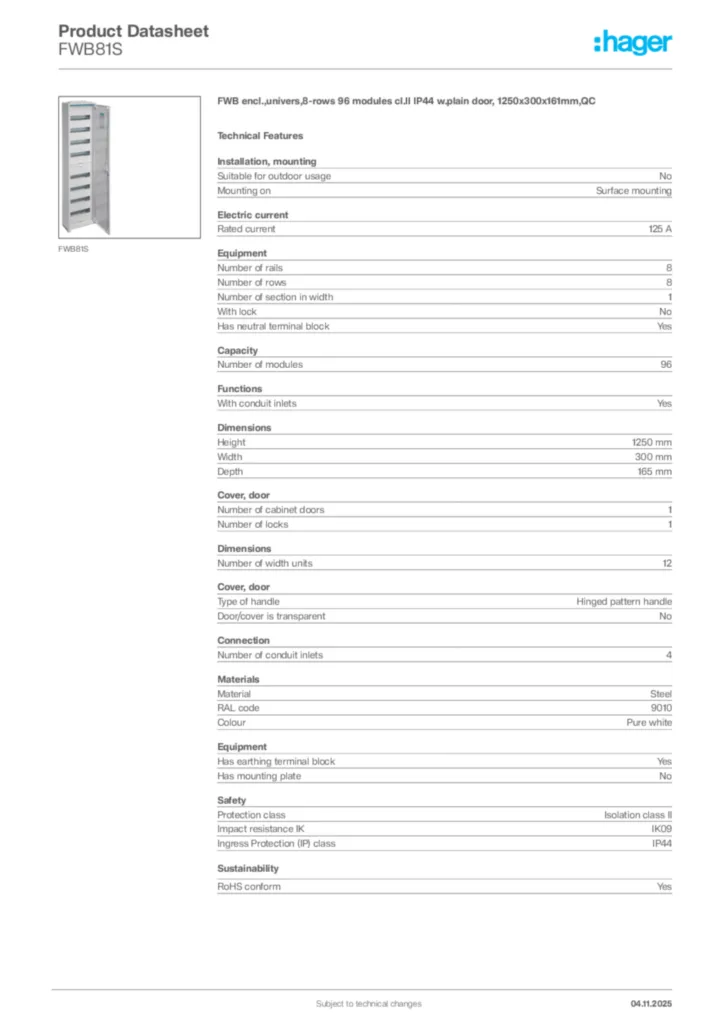

    • Product datasheet

      Image Hager Product data sheet FWB81S  | Hager Africa

      Hager Product data sheet FWB81S

      FWB encl.,univers,8-rows 96 modules cl.II IP44 w.plain door, 1250x300x161mm,QC

      PDF
    • Declaration of conformity

      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-08-29

      PDF
      143,25 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      1,44 MB
    More documentation

    Spare part

    See more

    Discover more of this product range

      5
    • 1
      FWB32D - FWB encl.,univers, 3rows 72mod. IP44 cl.II empty w.plain door,500x550x161mm
      FWB32D
      FWB encl., univers, 3rows 72mod. IP44 cl.II empty w.plain door, 500x550x161mm
    • 2
      FWB64S - FWB encl.,univers,6-rows 288 modules cl.II IP44 w.plain door, 950x1050x161mm,QC
      FWB64S
      FWB encl., univers, 6-rows 288 modules cl.II IP44 w.plain door, 950x1050x161mm, QC
    • 3
      FWB71S - FWB encl.,univers,7-rows 84 modules cl.II IP44 w.plain door, 1100x300x161mm,QC
      FWB71S
      FWB encl., univers, 7-rows 84 modules cl.II IP44 w.plain door, 1100x300x161mm, QC
    • 4
      FWB31D - FWB encl.,univers, 3rows 36mod. IP44 cl.II empty w.plain door,500x300x161mm
      FWB31D
      FWB encl., univers, 3rows 36mod. IP44 cl.II empty w.plain door, 500x300x161mm
    • 5
      FWB63S - FWB encl.,univers,6-rows 216 modules cl.II IP44 w.plain door, 950x800x161mm,QC
      FWB63S
      FWB encl., univers, 6-rows 216 modules cl.II IP44 w.plain door, 950x800x161mm, QC
