    • FZ31B
    EAN
    3250612777860
    VPE
    1 piece
    • FW surface-­mounted distri­bu­tion board

    Flush frame universZ, 1-field, RAL9010, for enclosure 1100x300mm FZ31B

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Flush frame universZ, 1-field, RAL9010, for enclosure 1100x300mm

    FZ31B

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Dimen­sions
    • Height
      1152 mm
    • Width
      352 mm
    • Depth
      13 mm
    Equip­ment
    • Number of section in width
      1
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Material
      Steel
    Connectivity
    • Mounting type
      Screw mounting
    Safety
    • Ingress Protec­tion (IP) class
      IP30

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - FWB enclosure,UNIVERS range, 5-rows 180 modules (English)
    PDF
    49,47 MB
    REACH declaration FZ31B
    PDF
    RoHS report FZ31B
    PDF

    Downloads

    • Image FZ31B | Hager UK

      Product Image FZ31B

    • GeneratedProductDatasheet

      Image Hager Product data sheet FZ31B | Hager UK

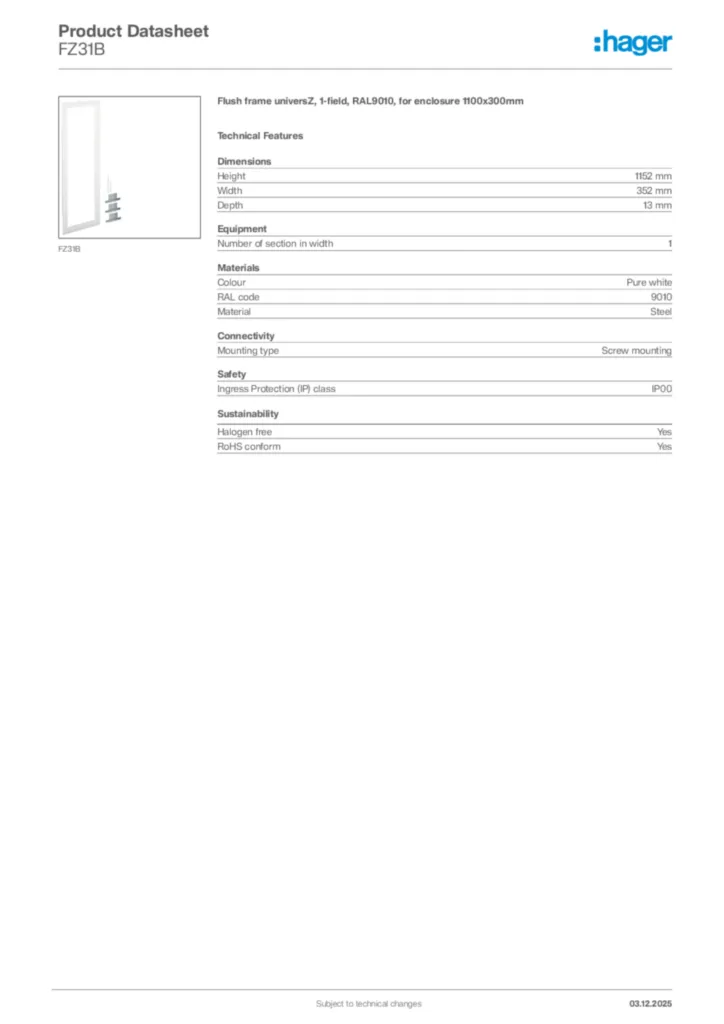

      Hager Product data sheet FZ31B

      Flush frame universZ, 1-field, RAL9010, for enclosure 1100x300mm

      PDF

    • ProductManuals

      Image 6LE007924C_EN | Hager UK


      6LE007924C_EN

      Surface boards and accessories (EN)

      PDF
      34,45 MB

    • ProductECDeclaration

      Image Declaration | Hager UK

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration of conformity en-GB 2026-07-22 | Hager UK

      Declaration of conformity en-GB 2026-07-22

      PDF
      1,07 MB
