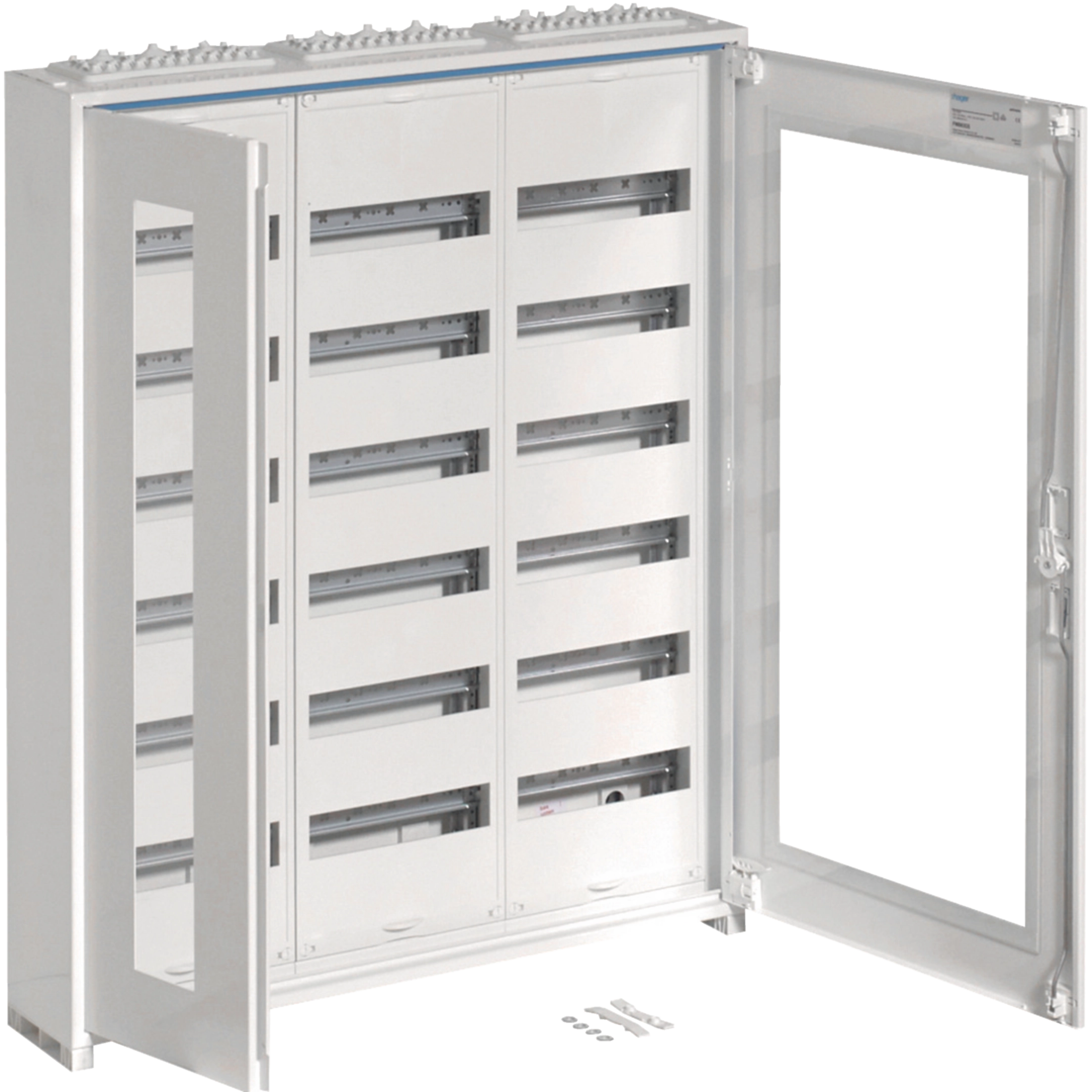

The Hager univers surface-mount enclosure (950×800×165 mm) provides a robust indoor distribution solution. IP44, Class II and IK07 ensure safe, durable operation. It offers 6 rows across 3 sections (18 rails) for up to 216 modules/36 width units, rated 125 A. Features a transparent asymmetrical double door with latch, 12 conduit inlets, and integrated neutral and earth terminal blocks—ideal for residential and commercial panels.
EAN
3250612737734
Packaging
1 Piece
Vector Enclosure IP65 54 Modules 3 Rows Surface Mount Transparent Door FWB63GS
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
DIN rail 4 products available -
Separation plate for meter/distribution boards 4 products available -
Lock system 11 products available -
Gland plate for enclosure 5 products available -
Built-in field for telecommunications 3 products available -
Components for arrangement/baying system 1 products available
Complete your system
-
UN06A
Carrier rails, univers, for enclosures ex depth = 160mm, L = 900mm, 2 pieces
-
U82ADIN rail, univers, 7, 5 mm, depth-adjustable until 32, 5mm, 11 modules wide (200mm)
-
UT22CInsulated DIN rail, univers, 7, 5mm high, deep-adjustable until 21mm, 11, 5 mod. wide
-
U842BDIN rail, universZ, 35x248x7, 5mm, galvanized steel
-
FZ453N
Lock, univers, cylinder Nr.455, with 2 keys, for enclosure IP44/54
-
FZ452NLock, univers, cylinder Nr.405, with 2 keys, for enclosure IP44/54
-
FZ451NLock, univers, square 7mm, with 1 key, for enclosure IP44/54
-
FZ450NLock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
-
FZ449NLock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
-
FZ597NLock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54
-
FZ821NLock, univers, square 8mm with seal cover, for enclosure IP44, with 1 key
-
FZ822NLock, univers, square 7mm with seal cover, for enclosure IP44, with 1 key
-
FZ823NLock, univers, plastic slot with seal cover for enclosure IP44
-
FZ824NLock, univers, cylinder Nr.1242E with seal cover and 2 keys
-
FZ226Sealing cap, univers, for Door of IP44/54 enclosures
-
FZ428
Cable entry plate, univers, for enclosure IP44 / IP54, back side, D160 / 205 mm
-
FZ425Cable entry plate, univers, for sealed area, with cut-outs, IP44/54
-
FZ460NCable entry plate, univers, IP44/54, 6 x M16, 2 x M20, 2 x M16/25 1 x M25/40/50
-
FZ466NCable entry plate, univers, IP44/54 with 15 x M16 and 4 x M20 precuts
-
FZ468NCable entry plate, univers, IP44/54, w/o precuts
-
UT26AMounting plate, univers, deep-adjustable until 27mm, 1-row, 115x210x2, 5mm
-
UT26BMounting plate, univers, deep-adjustable until 27mm, 2-rows, 215x210x2, 5mm
-
UZ31M5Mounting plate univers, for telcommunication, 1field, for enclosure height 500mm
-
UZ32M5Mounting plate univers, for telcommunication, 2field, for enclosure height 500mm
-
UZ41M5Mounting plate univers, for telcommunication, 1field, for enclosure height 650mm
-
UZ42M5Mounting plate univers, for telcommunication, 2field, for enclosure height 650mm
-
UZ51M5Mounting plate univers, for telcommunication, 1field, for enclosure height 800mm
-
UZ52M5Mounting plate univers, for telcommunication, 2field, for enclosure height 800mm
-
UZ61M5Mounting plate univers, for telcommunication, 1field, for enclosure height 950mm
-
UZ62M5Mounting plate univers, for telcommunication, 2field, for enclosure height 950mm
-
UZ21M6Mounting plate, univers, 240x247mm, perforated, with mounting screws
-
UZ31M6Mounting plate, univers, 390x247mm, perforated, with mounting screws
-
UZ41M6Mounting plate, univers, 570x247mm, perforated, with mounting screws
-
UZ51M6Mounting plate, univers, 720x247mm, perforated, with mounting screws
-
UZ61M6Mounting plate, univers, 870x247mm, perforated, with mounting screws
-
UZ25V2Cable bracket, universN, small section, 20 pieces
-
UZ25V1Cable bracket, universN, big section, 20 pieces
-
UZ01A2Tower upper part, universZ, low level
-
UZ01V2Support, universZ, simple, for cable bracket, 20 pieces
-
UZ03A1Tower underpart, universZ, with snap-in spring
-
FZ803BMounting brackets, univers, for enclosure IP44/IP54, outside
-
UZ04A1Double tower, universZ, low level, with screws
Technical properties
Connection
-
Number of conduit inlets12
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current125 A
Equipment
-
Number of rails18
-
Number of rows6
-
Number of section in width3
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules216
Functions
-
With conduit inletsYes
Dimensions
-
Height950 mm
-
Width800 mm
-
Depth165 mm
-
Built-in height950 mm
-
Built-in width800 mm
-
Built-in depth161 mm
-
Number of width units36
Cover, door
-
Number of cabinet doors2
-
Number of locks1
-
Type of handleLatch
-
Door/cover is transparentYes
-
Cabinet door typeDouble door, asymmetric
Materials
-
MaterialSteel
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP44
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

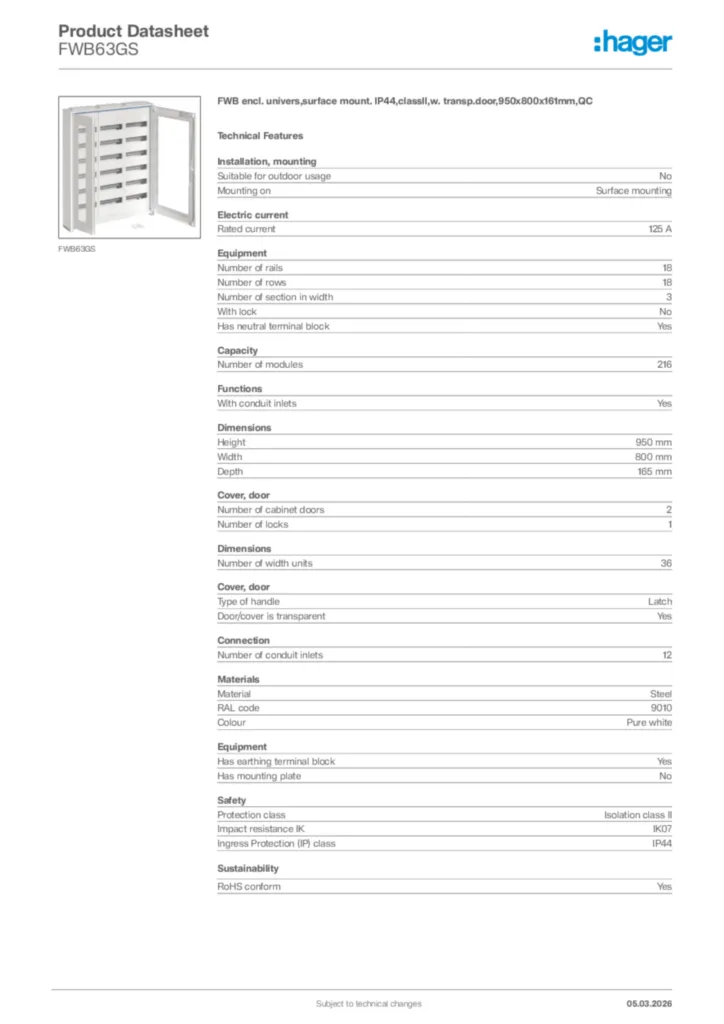

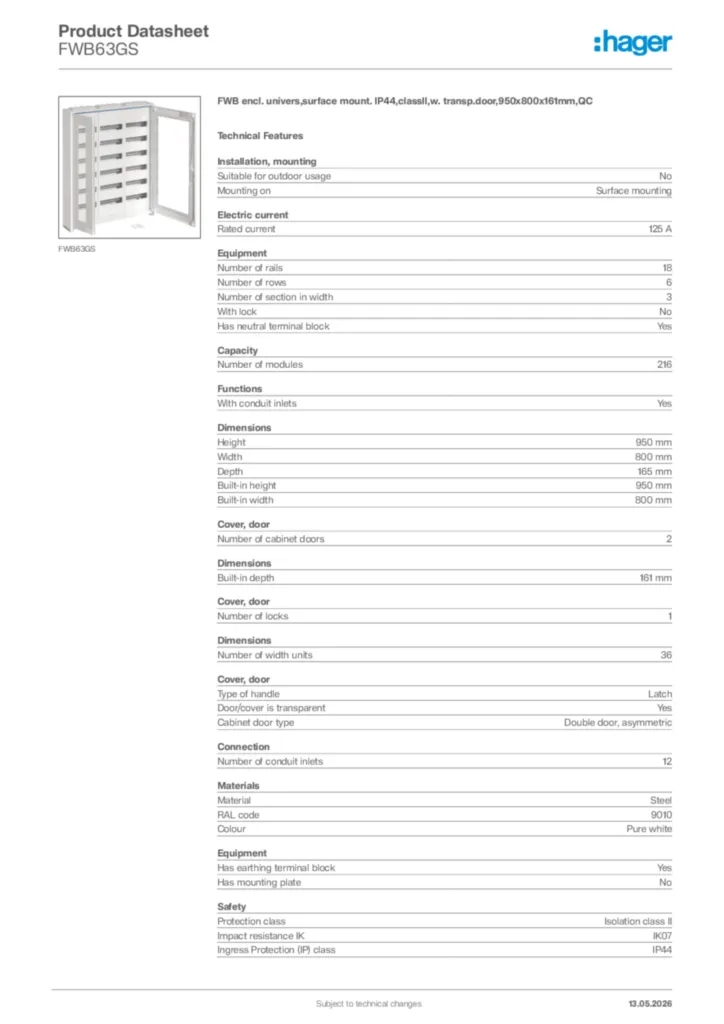

Hager Product data sheet FWB63GS
FWB encl. univers,surface mount. IP44,classII,w. transp.door,950x800x161mm,QC
PDF -
Instruction manual
Instruction manual International 2015-05-08
PDF673,51 kB -
Installation manual
Installation manual International 2026-03-25
PDF1,88 MB -
Handbook
6LE007924C_ENHandbook en-GB 2026-05-13
PDF34,45 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-05-12
PDF332,34 kB
Declaration
Declaration of conformity International 2022-08-29
PDF143,25 kB
Declaration
Declaration of conformity International 2022-03-09
PDF1,44 MB
