The Hager Orion.Plus polyester floor-standing enclosure 600x850x300 mm provides secure, outdoor-ready housing for electrical distribution up to 630 A. IP65 and IK08 ensure dust/water protection and impact resistance, while Class II double insulation enhances safety. Light grey RAL7035 cabinet with transparent cover, 3-point 7 mm key lock, 3 rows, floor-mount—ideal for industrial and infrastructure panels.

EAN

3250610676257

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus polyester floor-standing enclosure IP65 Cl.II 1200x600x300 FL525B

Accessories
Technical properties
Environmental value
Documentations
More products

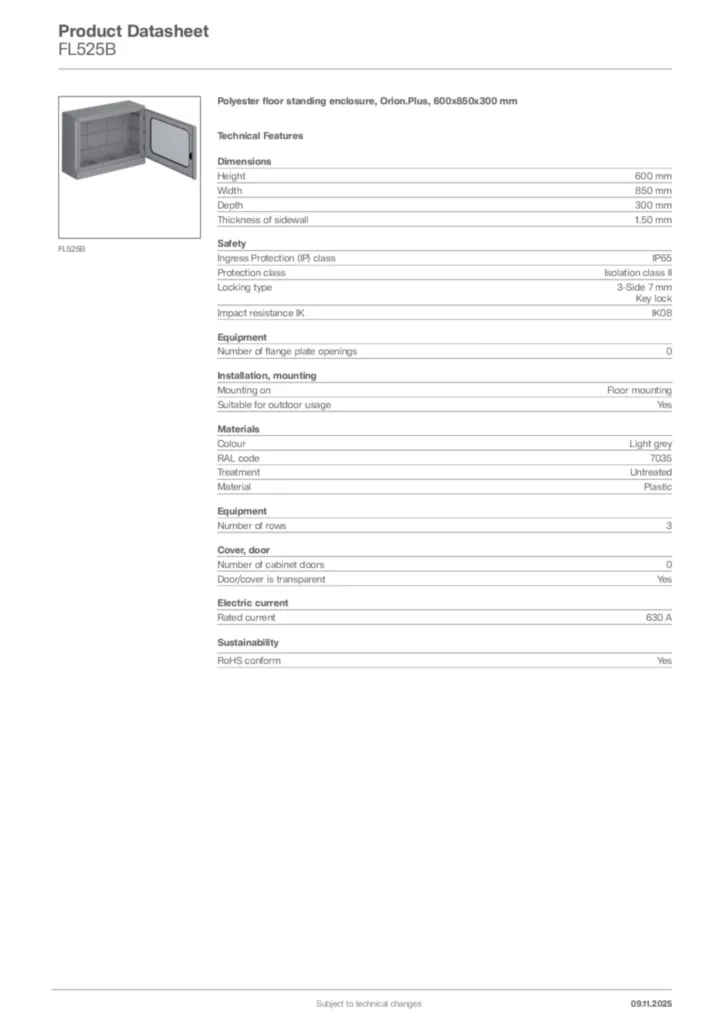

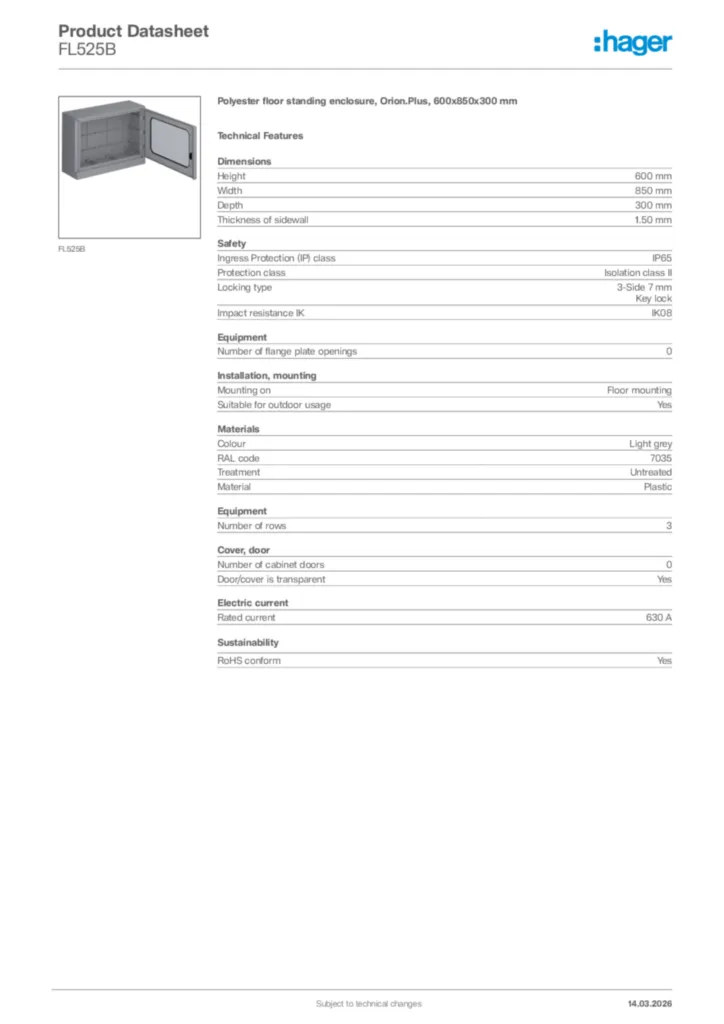

Download the data sheet

Complete your system

Heater for enclosure 4 products available
Mounting plate for distribution board 10 products available
Distributor assembly for serial built-in device 5 products available
Blanking plate for enclosure 6 products available
Key for enclosures/cabinets 2 products available
DIN rail 1 products available

Technical properties

Height

600 mm
Width

850 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK08

Number of flange plate openings

0
Number of rows

3

Mounting on

Floor mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Plastic

Number of cabinet doors

0
Door/cover is transparent

Yes
Cabinet door type

Single door

Rated current

630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
