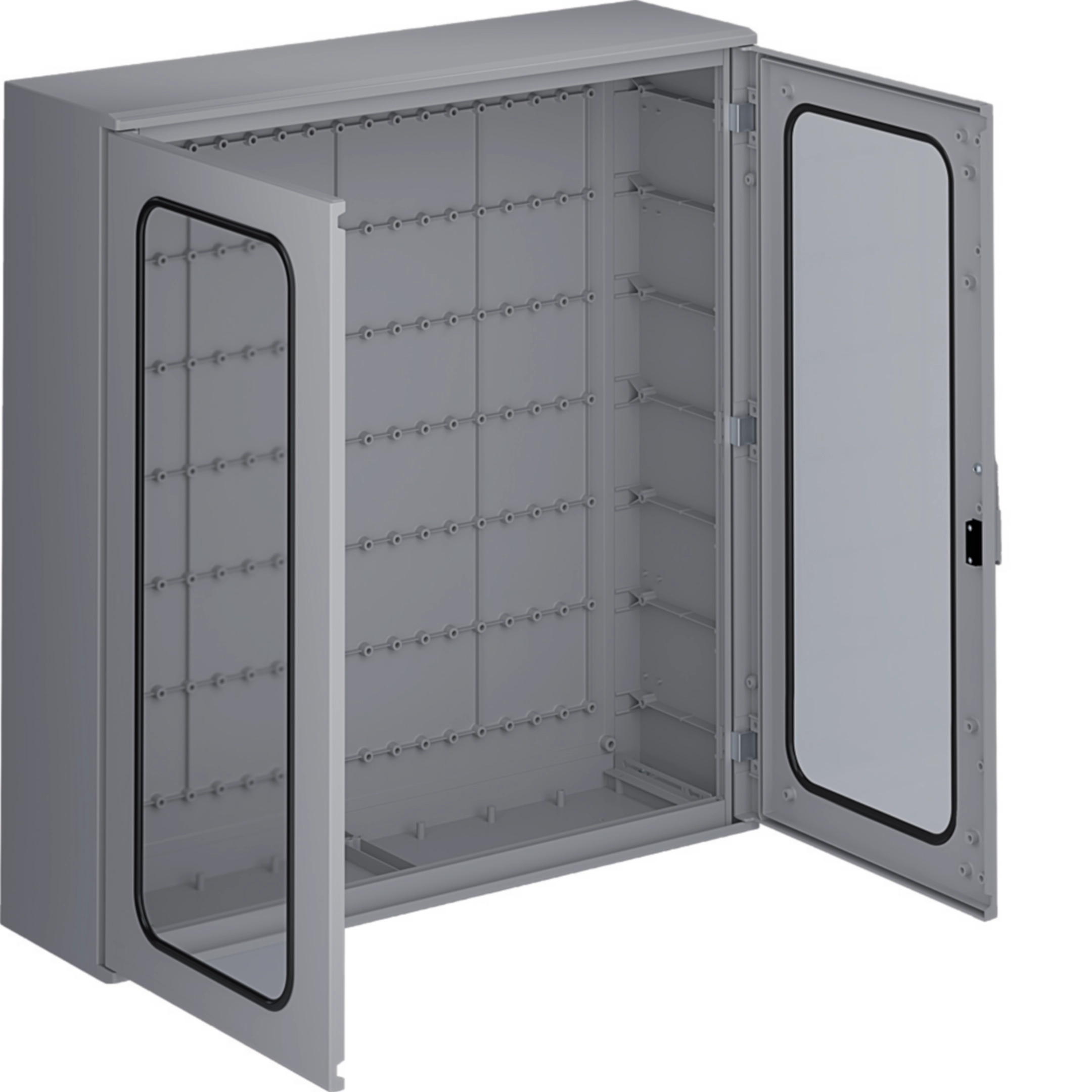

The Hager Orion.Plus polyester wall-mount enclosure 1150x1100x300 mm safeguards power and control assemblies up to 630 A. IP65, Class II, and IK08 deliver weatherproof, double‑insulated, impact‑resistant performance for indoor/outdoor use. Two transparent symmetric doors with 3‑point 7 mm key lock protect 2-section, 7-row layouts. Light grey RAL7035 plastic resists corrosion and optimizes panel space.

EAN

3250610676127

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus Polyester Wall-Mount Enclosure 850x1100x300 IP65 IK08 Class II FL512B

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Blanking plate for enclosure 3 products available
Lock system 1 products available
Distributor assembly for serial built-in device 1 products available
Door/operating panel 3 products available
Mounting plate for distribution board 4 products available
Mounting accessories 3 products available

Technical properties

Height

1150 mm
Width

1100 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK08

Number of section in width

2
Number of flange plate openings

0
Number of rows

7

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Glass reinforced polyester
Surface finish

Matt

Number of cabinet doors

2
Number of locks

1
Door/cover is transparent

Yes
Cabinet door type

Double door, symmetric

Rated current IN

630 A

Nominal voltage

400-400 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
