The Hager Orion.Plus polyester floor-standing enclosure 600x850x300 mm provides robust housing for assemblies up to 630 A. IP65, IK10 and Class II ensure safe outdoor use. Light grey RAL7035, corrosion-resistant plastic. Single plain door with 3-point 7 mm key lock. Floor-mounted, 1 section, 3 rows, 2 flange openings; 1.5 mm sidewalls. Ideal for industrial, utility and infrastructure applications.

EAN

3250610672471

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus polyester floor enclosure IP65 IK10 900x600x300 Class II RAL7035 FL325B

Accessories
Technical properties
Environmental value
Documentations
More products

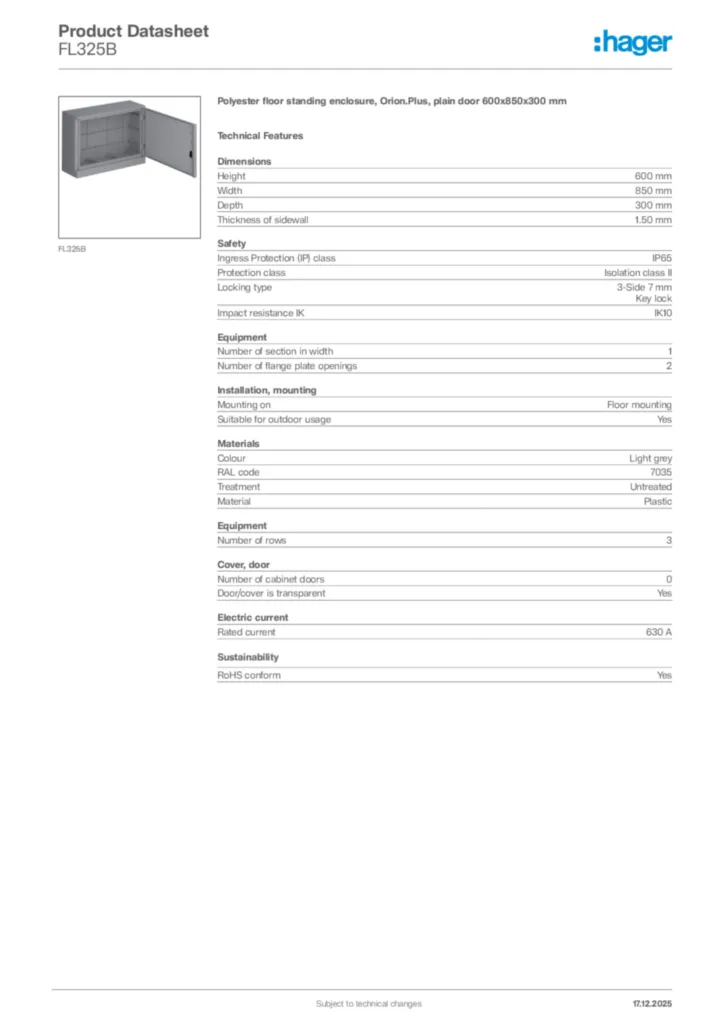

Download the data sheet

Complete your system

Mounting plate for distribution board 4 products available
Lock system 1 products available
Door/operating panel 2 products available
Blanking plate for enclosure 4 products available
Key for enclosures/cabinets 2 products available
Distributor assembly for serial built-in device 1 products available

Technical properties

Height

600 mm
Width

850 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK10

Number of section in width

1
Number of flange plate openings

2
Number of rows

3

Mounting on

Floor mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Glass reinforced polyester
Surface finish

Matt

Number of cabinet doors

1
Number of locks

1
Door/cover is transparent

No
Cabinet door type

Single door

Rated current IN

630 A

Nominal voltage

400-400 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
