The Hager Orion.Plus polyester wall-mount enclosure 550x1100x300 mm delivers secure distribution up to 630 A. IP65, IK08 and Class II ensure dust, water and impact protection for indoor/outdoor use. Light grey RAL7035 with double-door transparent cover, 3 rows over 2 sections, and 3-point 7 mm key lock. Spacious and corrosion-resistant, ideal for industrial and infrastructure applications.

EAN

3250610676103

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Polyester wall enclosure Orion.Plus 1150x850x300 IP65 IK08 Class II outdoor FL510B

Accessories
Technical properties
Environmental value
Documentations
More products

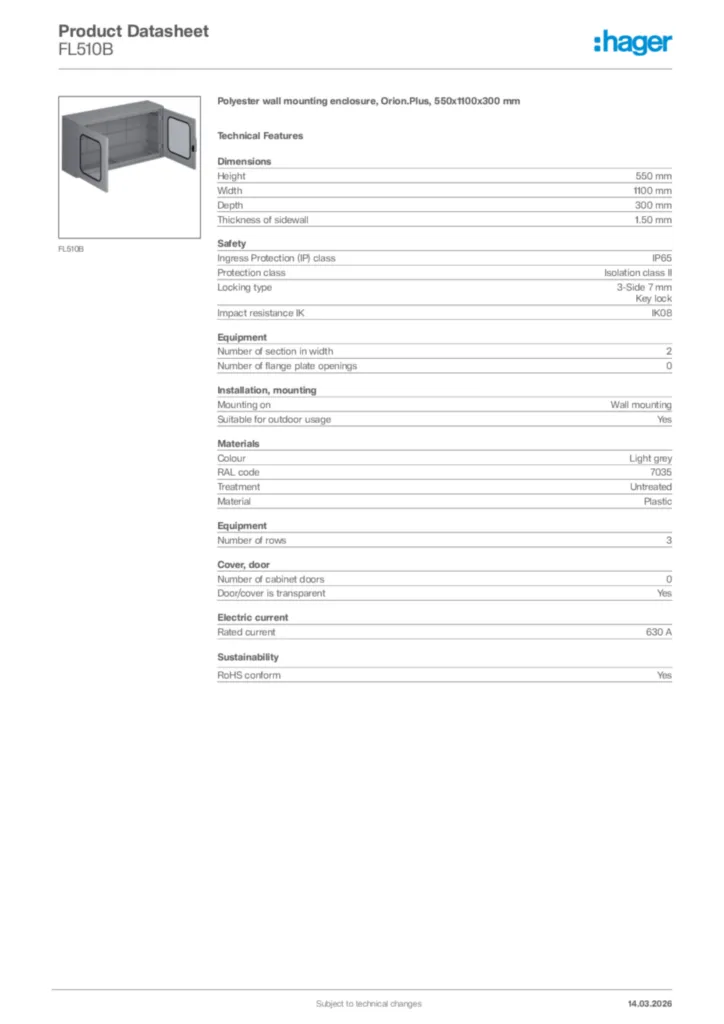

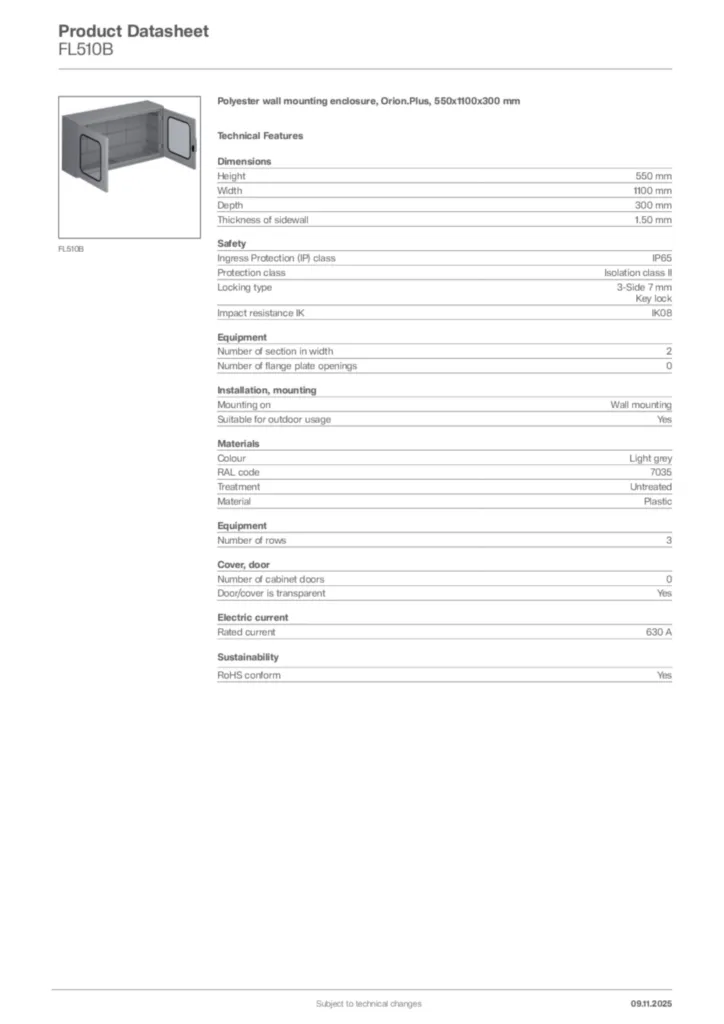

Download the data sheet

Complete your system

Mounting accessories 3 products available
Screw mounting set 1 products available
Key for enclosures/cabinets 2 products available
Insert for lock system 1 products available
Cover strip 1 products available
Blanking plate for enclosure 2 products available

Technical properties

Height

550 mm
Width

1100 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK08

Number of section in width

2
Number of flange plate openings

0
Number of rows

3

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Glass reinforced polyester
Surface finish

Matt

Number of cabinet doors

2
Number of locks

1
Door/cover is transparent

Yes
Cabinet door type

Double door, symmetric

Rated current IN

630 A

Nominal voltage

400-400 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
