The Hager Orion.Plus polyester wall-mount enclosure 1150x600x300 mm provides secure outdoor housing for distribution and control up to 630 A. IP65, Class II insulation, and IK08 impact resistance protect equipment, while 1.5 mm walls and a three-point 7 mm key lock enhance security. Two transparent doors and 7 rows enable clear access and neat organization. Light grey RAL7035, corrosion-resistant for demanding sites.

EAN

3250610676028

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus polyester wall enclosure 850x600x300 IP65 IK08 Class II FL502B

Accessories
Technical properties
Environmental value
Documentations
More products

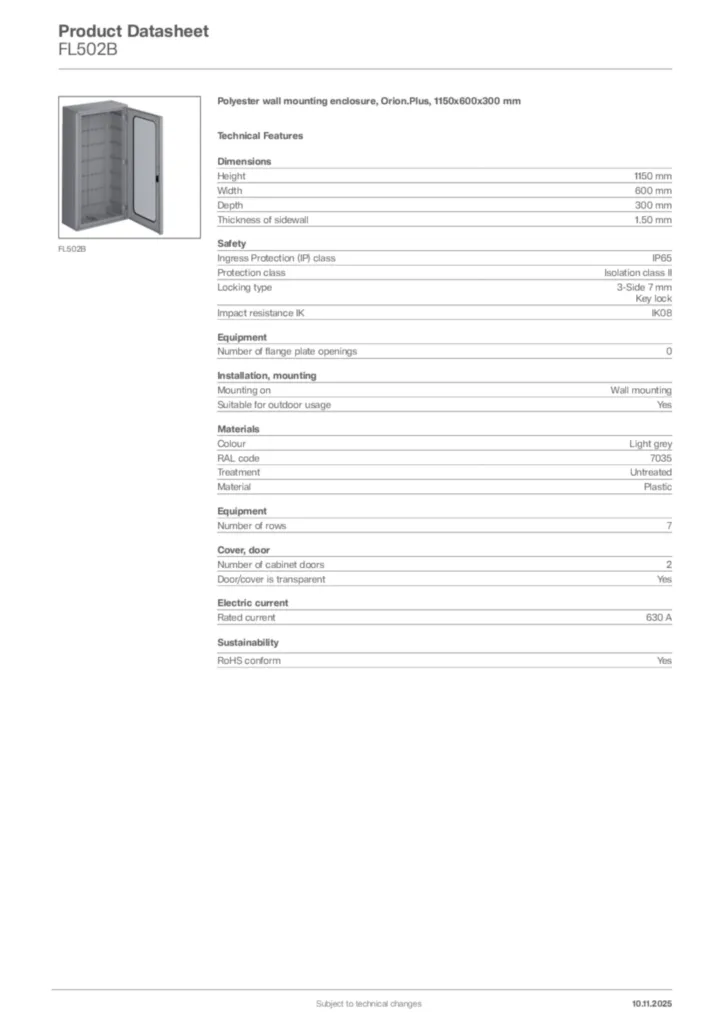

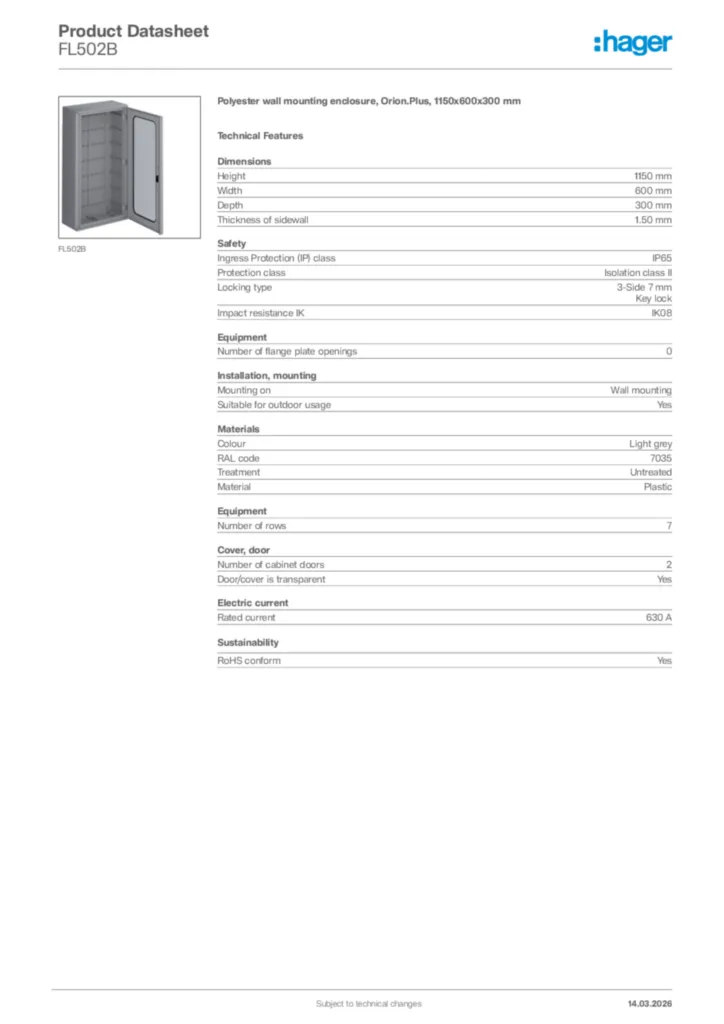

Download the data sheet

Complete your system

Key for enclosures/cabinets 2 products available
Lock system 1 products available
Distributor assembly for serial built-in device 1 products available
Blanking plate for enclosure 3 products available
Door/operating panel 3 products available
Mounting plate for distribution board 2 products available

Technical properties

Height

1150 mm
Width

600 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK08

Number of section in width

1
Number of flange plate openings

0
Number of rows

7

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Glass reinforced polyester
Surface finish

Matt

Number of cabinet doors

1
Number of locks

1
Door/cover is transparent

Yes
Cabinet door type

Single door

Rated current IN

630 A

Nominal voltage

400-400 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
