Hager Orion.Plus polyester wall-mounting enclosure 550x600x300 mm provides robust housing for assemblies up to 630 A. IP65 and IK08 with Class II insulation for safe outdoor/indoor use. Light grey RAL7035 plastic body with transparent cover, 3 rows, secure 3-point 7 mm key lock. Ideal for wall-mounted distribution and control equipment.

EAN

3250610676004

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus polyester double enclosure IP65 IK10 Class II 1750x1100x300 FL500B

Accessories
Technical properties
Environmental value
Documentations
More products

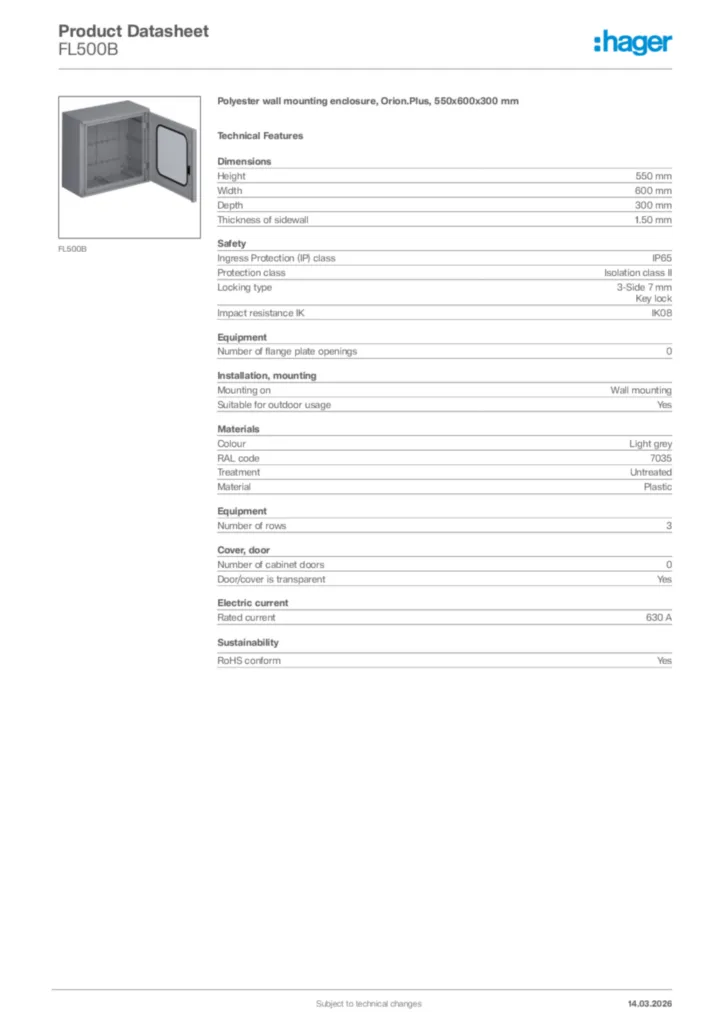

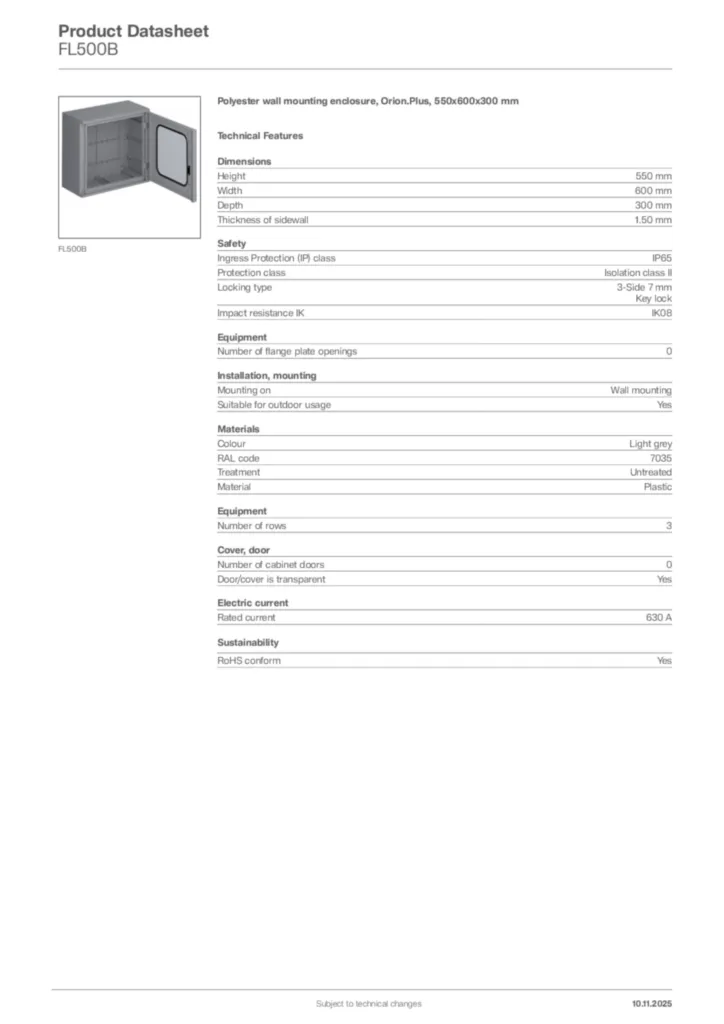

Download the data sheet

Complete your system

Mounting accessories 3 products available
Screw mounting set 1 products available
Key for enclosures/cabinets 2 products available
Insert for lock system 1 products available
Cover strip 1 products available
Blanking plate for enclosure 3 products available

Technical properties

Height

550 mm
Width

600 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK08

Number of section in width

1
Number of flange plate openings

0
Number of rows

3

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Glass reinforced polyester
Surface finish

Matt

Number of cabinet doors

1
Number of locks

1
Door/cover is transparent

Yes
Cabinet door type

Single door

Rated current IN

630 A

Nominal voltage

400-400 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
