The Hager Orion.Plus polyester wall-mount enclosure 850x1100x300 mm safely houses distribution and control equipment up to 630 A. With IP65 and IK10 ratings and Class II insulation, it resists dust, water and impacts for reliable indoor/outdoor use. The spacious 2-section, 5-row layout simplifies wiring, while the plain double door with 3-point 7 mm key lock enhances security. Light grey RAL7035.

EAN

3250610672426

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Polyester wall enclosure Orion.Plus 550x1100x300 IP65 IK10 Class II FL311B

Accessories
Technical properties
Environmental value
Documentations
More products

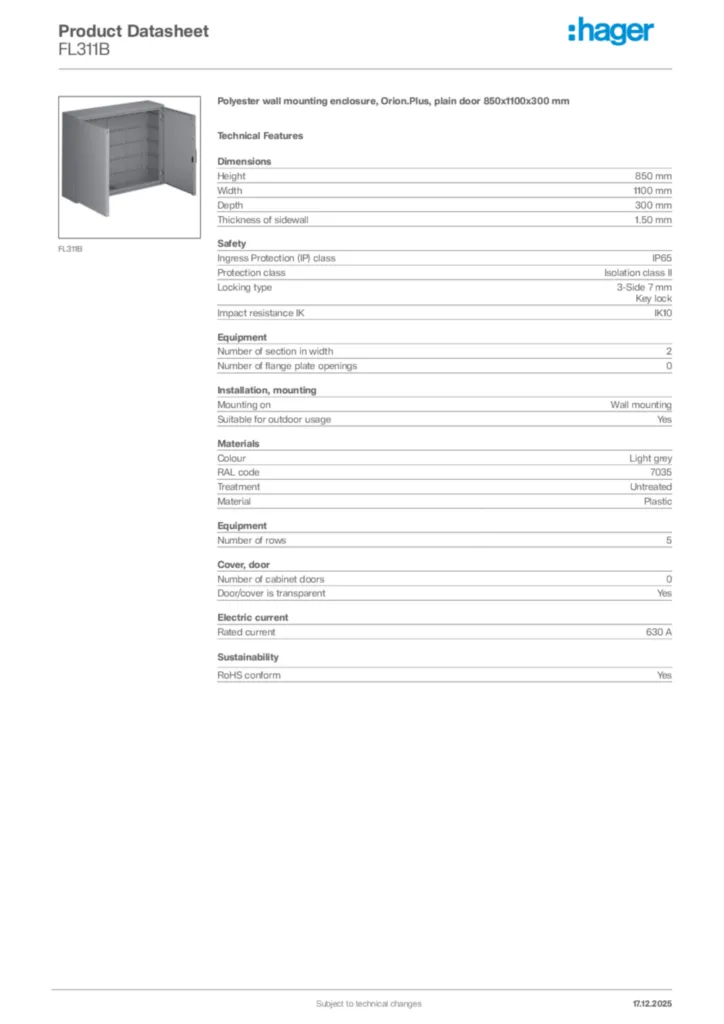

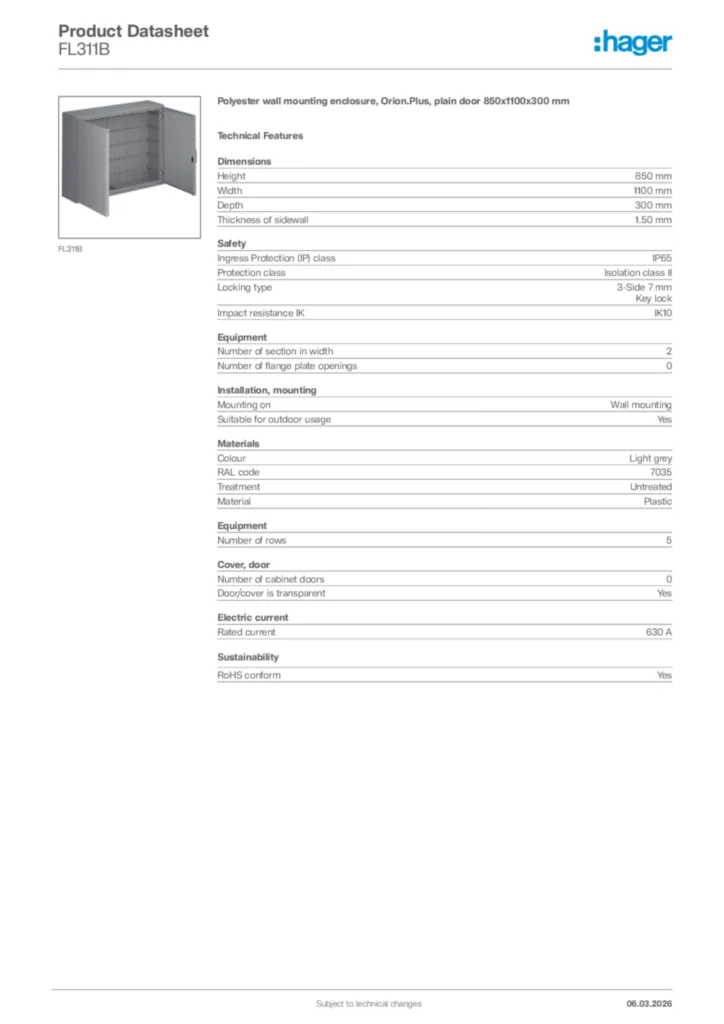

Download the data sheet

Complete your system

Mounting accessories 3 products available
Screw mounting set 1 products available
Key for enclosures/cabinets 2 products available
Insert for lock system 1 products available
Mounting plate for distribution board 1 products available
Cover strip 1 products available

Technical properties

Height

850 mm
Width

1100 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK10

Number of section in width

2
Number of flange plate openings

0
Number of rows

5

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Glass reinforced polyester
Surface finish

Matt

Number of cabinet doors

2
Number of locks

1
Door/cover is transparent

No
Cabinet door type

Double door, symmetric

Rated current IN

630 A

Nominal voltage

400-400 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
