    The Hager multifunction time relay 12-240 V AC/DC provides versatile timing with on and off delay, adjustable from 50 ms to 100 h. This compact 1-module (17.5 mm) unit features 1 changeover contact (SPDT) rated 8 A AC1, ideal for lighting, HVAC, and pump control. Wide supply range and -25 to 55 C operation enable flexible installation. Terminals accept 0.5 to 2.5 mm² conductors.
    EAN
    3250615600622
    VPE
    1 piece
    • Time switches and relays

    OFF-delay time relay 24-240V AC/DC 1CO 8A 50ms-100h 1 module EZM100

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    OFF-delay time relay 24-240V AC/DC 1CO 8A 50ms-100h 1 module

    EZM100

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Frequency
    • Frequency
      50 - 60 Hz
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 55 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      0.5 - 2.5 mm²
    • Cross-sec­tion rigid conductor
      0.5 - 2.5 mm²
    • Number of contacts
      1
    • Type of contacts
      1x changeover
    Capa­city
    • Number of modules
      1
    Dimen­sions
    • Height
      87 mm
    • Width
      17.50 mm
    • Depth
      65 mm
    Elec­tric current
    • Accept­able current rating AC1
      8 A
    Equip­ment
    • Number of NC contacts
      1
    • Number of NO contacts
      1
    • Switch off delay
      Yes
    • Switch on delay
      Yes
    Settings
    • Time delay
      50 ms - 100 h
    Voltage
    • Command voltage for 50 Hz
      12 - 240 V
    • Command voltage for 60 Hz
      12 - 240 V
    • Command voltage Us for DC
      12 - 240 V
    • Type voltage supply
      AC/DC

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP document International 2022-12-02
    PDF
    337,88 kB
    REACH declaration EZM100
    PDF
    RoHS report EZM100
    PDF

    Downloads

    • Image EZM100 | Hager UK

      Product Image EZM100

    • GeneratedProductDatasheet

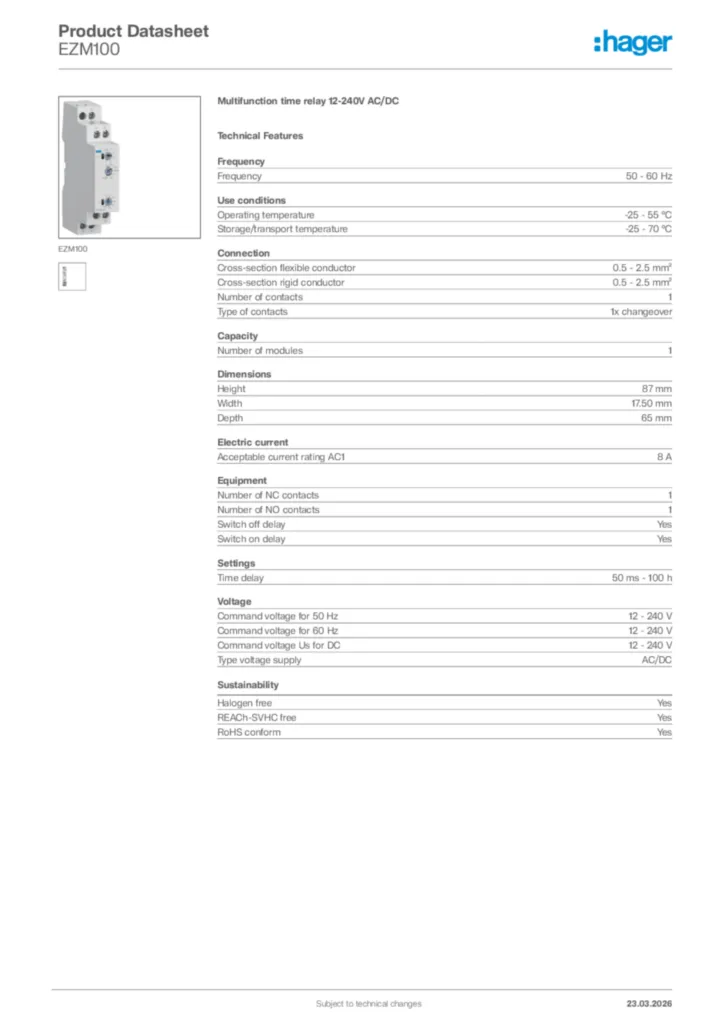

      Image Hager Product data sheet EZM100 | Hager UK

      Hager Product data sheet EZM100

      Multifunction time relay 12-240V AC/DC

      PDF

    • ProductInstallationManual

      Image Installation manual de-AT, de-DE, de-CH, en-AU, en-GB, en-NZ, en-US, fr-BE, fr-FR, fr-CH, it-IT, it-CH 2023-12-06 | Hager UK

      Installation manual de-AT, de-DE, de-CH, en-AU, en-GB, en-NZ, en-US, fr-BE, fr-FR, fr-CH, it-IT, it-CH 2023-12-06

      PDF
      1015,41 kB

    • ProductECDeclaration

      Image EU Declaration of Conformity | Hager UK

      EU Declaration of Conformity

      Declaration of conformity en-GB, fr-FR 2024-01-04

      PDF
      315,63 kB
      Image UKCA Declaration of Conformity | Hager UK

      UKCA Declaration of Conformity

      Declaration of conformity en-GB, fr-FR 2024-01-04

      PDF
      269,97 kB
