The Hager staircase time lag switch automates timed lighting in stairwells and corridors, preventing lights left on. DIN-rail, 1-module (17.5 mm) with NO contact, 230 V/16 A, supports 2300 W incandescent/halogen and up to 3600 VA fluorescent (1000 VA parallel compensated). Adjustable delay 30 s-10 min. Auto-detects 3- or 4-wire circuits. Screw terminals 1-6 mm² flex, 1.5-10 mm² rigid. 50-60 Hz, -10 to 55 °C.
EAN
3250612339969
VPE
6 pieces
Terminal cover accessory for HA964N EMN001
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Voltage
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Electric current
-
Rated current IN16 A
Capacity
-
Number of modules1
Connectivity
-
Type of connectionScrew terminal, Wire connection
Installation, mounting
-
Mounting onDIN rail
Lighting
-
Max. load fluorescent lamp parallel compensated1000 VA
-
Max. load fluorescent lamp3600 VA
Use conditions
-
Operating temperature-10 - 55 °C
Connection
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
Settings
-
Time delay30 S - 10 Min
Dimensions
-
Width17.50 mm
-
Depth64 mm
Power
-
230 V incandescent and halogen lamp2300 W
Texts
-
JunctionFor 3 and 4-conductor circuit (automatic detection)
-
Switch modeNO contact
-
Installation modeFor mounting on DIN rail
-
Type of connectionWith screw terminals
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

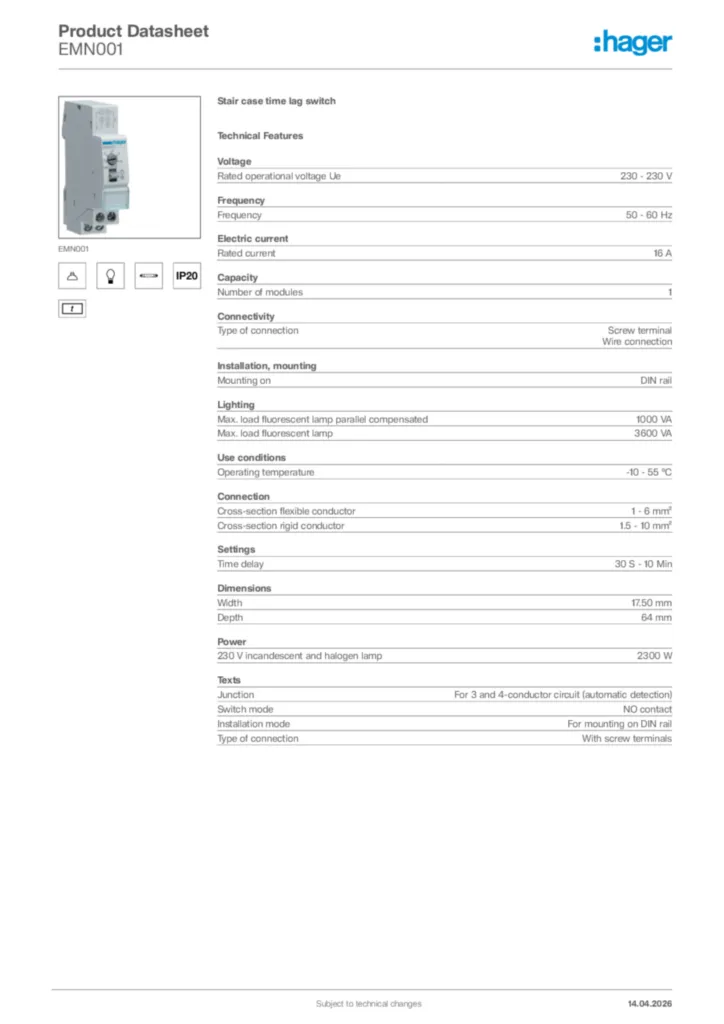

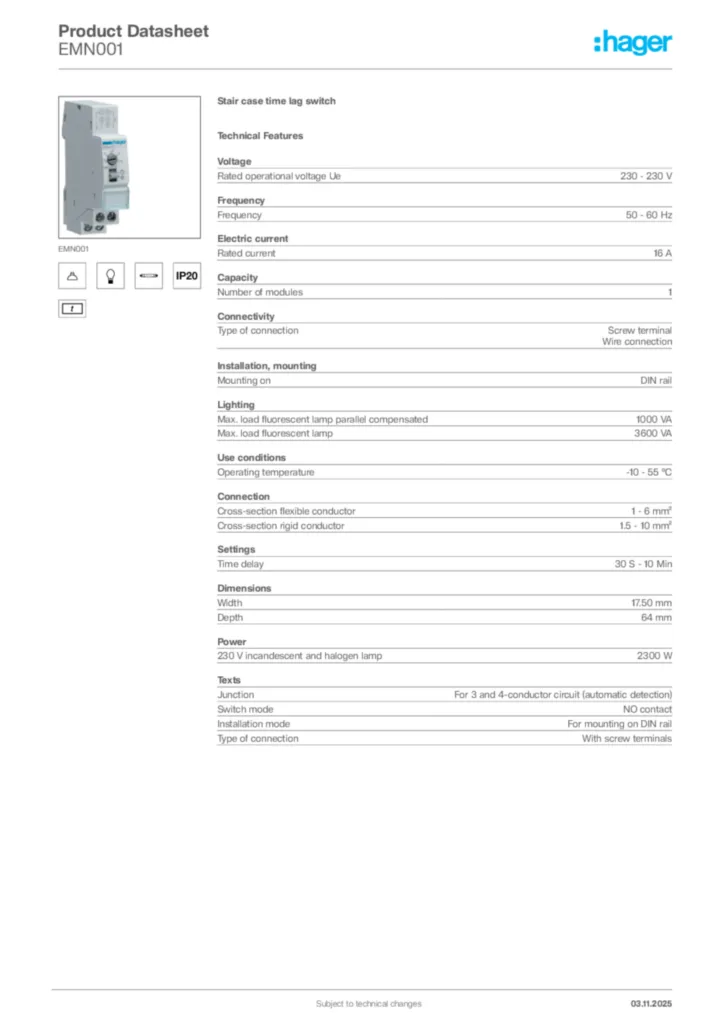

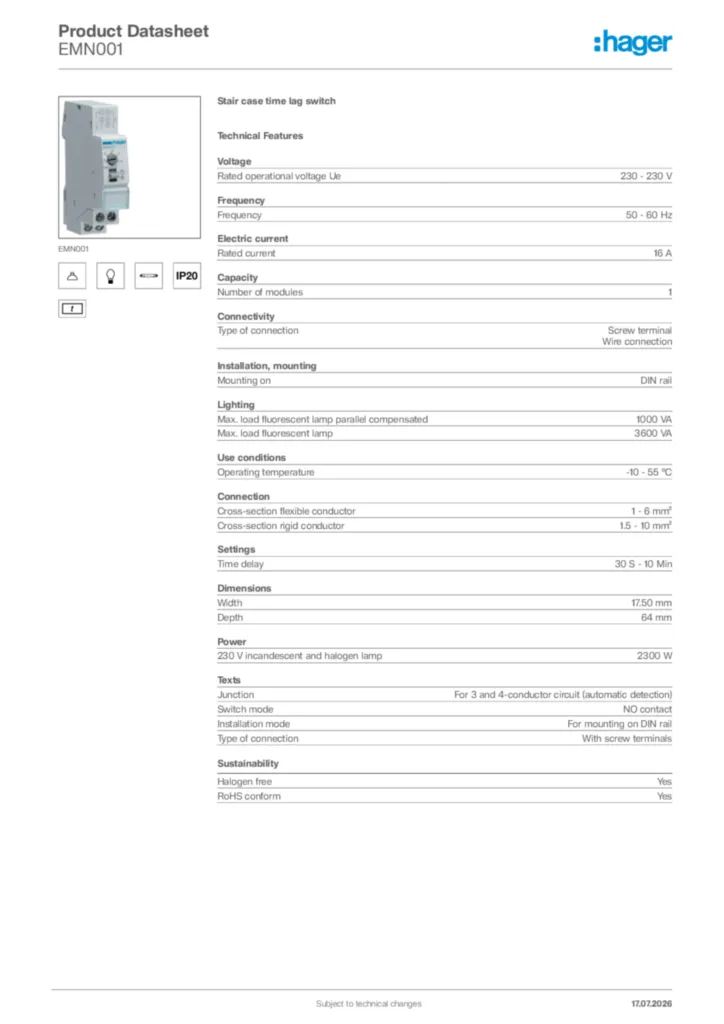

Hager Product data sheet EMN001
Stair case time lag switch
PDF -
ProductECDeclaration
Declaration
Declaration of conformity International 2021-11-17
PDF127,02 kB
