3 Phase kWhmeter direct 125A 6M AGARDIO MID ECA310D

EAN
3250612231270
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

3 Phase kWhmeter direct 125A 6M AGARDIO MID

ECA310D

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Accessor­ies/s­pare parts for bus system 8 products available
  • Commu­nic­a­tion tech­no­logy adapter 1 products available
  • Accessor­ies/s­pare parts for surge protec­tion data network­s/M­CR-­tech­no­logy 1 products available

Compatible products

  • Referenced by 1 products available

Complete your system

  • Accessor­ies/s­pare parts for bus system
  • Commu­nic­a­tion tech­no­logy adapter
  • Accessor­ies/s­pare parts for surge protec­tion data network­s/M­CR-­tech­no­logy
  • HTG485H

    Modbus cable 25 m
    0.00 €  / *
  • HTG484H

    RJ45-RJ45 Modbus cable length 5 m
    0.00 €  / *
  • HTG482H

    RJ45-RJ45 Modbus cable length 2 m
    0.00 €  / *
  • HTG481H

    RJ45-RJ45 Modbus cable length 1 m
    0.00 €  / *
  • HTG480H

    RJ45-RJ45 Modbus cable length 20 cm
    0.00 €  / *
  • HTG474H

    RJ45-RJ45 with earth Modbus cable length 5 m
    0.00 €  / *
  • HTG472H

    RJ45-RJ45 with earth Modbus cable length 2 m
    0.00 €  / *
  • HTG471H

    RJ45-RJ45 with earth Modbus cable length 1 m
    0.00 €  / *
  • HTG465H

    RJ45-bare wire with earth Modbus cable length 3 m
    0.00 €  / *
  • HTG467H

    RJ45 120 Ohm resistor for MODBUS RTU
    0.00 €  / *

Referenced by

  • TXF121

    KNX interface for electrical energy meters
    0.00 €  / *

Technical properties

Archi­tec­ture
  • Bus system
    MODBUS
  • Type of pole
    3P+N
Elec­tric current
  • Rated current
    125 A
  • Maximum meas­uring circuit current
    125 A
Capa­city
  • Number of modules
    6
Connectivity
  • Type of connec­tion
    Direct connec­tion
  • Connectivity type
    ModBus RS-485 3 wires
Dimen­sions
  • Height
    92 mm
  • Width
    107 mm
  • Depth
    60 mm
Equip­ment
  • Type of pulse gener­ator
    Optical
Compat­ib­ility
  • Suit­able for
    Purchase/supply
Connec­tion
  • Cross-sec­tion of metering input
    50 - 50 mm²
  • Cross-sec­tion of metering output
    50 - 50 mm²
  • Connect­or/plug type Bus system
    RJ45
Install­a­tion, mounting
  • Nominal tight­ening torque
    5 - 5 Nm
  • Mounting on
    DIN rail
Mech­an­ical features
  • Nominal tight­ening torque digital terminal
    0.50 - 0.50 Nm
Meas­ure­ment
  • Meas­uring system
    Direct meas­ure­ment
  • Type of meas­uring instru­ment
    Elec­tronic
  • Current meas­ure­ment range
    0.25 - 125.0 A
  • Meas­ure­ment range voltage Ph-N
    92 - 276 V
  • Meas­ure­ment range voltage Ph-Ph
    160 - 480 V
  • Frequency meas­uring range
    45 - 65 Hz
Func­tions
  • Accuracy class
    B
  • Tariff type
    T1...T2 (230V AC)/T1...T8 Modbus
  • Is calib­rated
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -25 - 55 °C
  • Stor­age/trans­port temper­ature
    -25 - 70 °C
Power
  • Power consump­tion VA
    2 VA
  • Total power loss under IN
    0.60 W
Frequency
  • Frequency
    50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes
Halogen free Yes

Certifications and documents

Hager REACH declaration ECA310D
PDF
Hager RoHS report ECA310D
PDF

Downloads

  • Image ECA310D | Hager Africa

    Product Image ECA310D

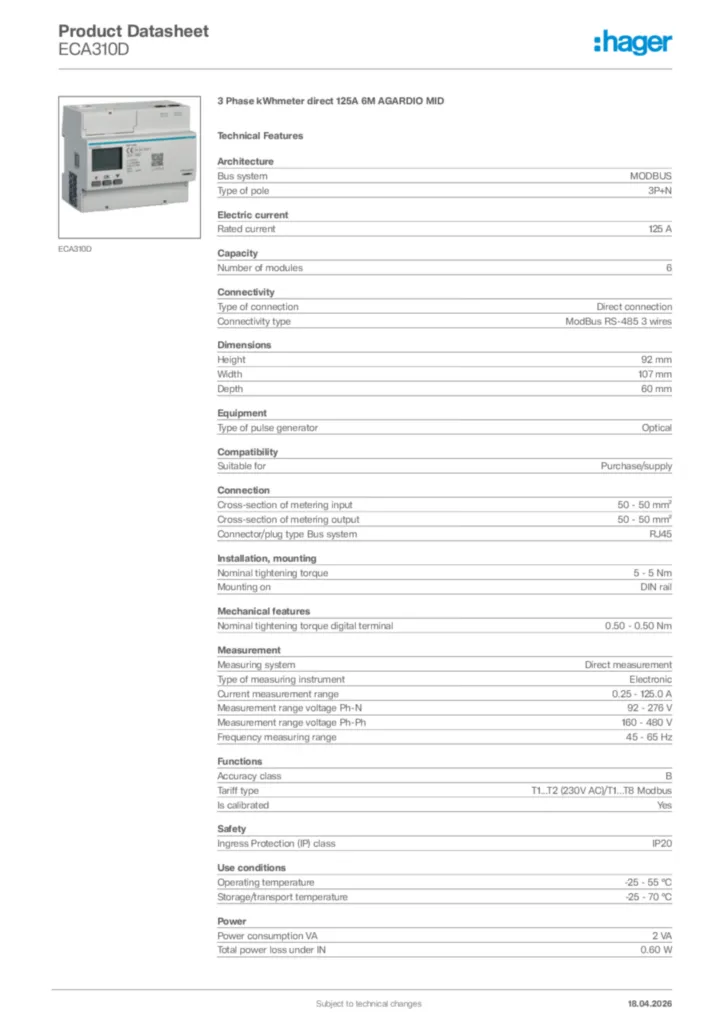

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Product attachment

    Image Modbus table Summary V1 14 | Hager Africa

    Modbus table Summary V1 14

    Product attachment International 2022-10-04

    PDF
    836,11 kB

  • Manual

    Image Installer leaflet ECA310D | Hager Africa

    Installer leaflet ECA310D

    Manual de-DE, en-GB 2024-01-29

    PDF
    2,78 MB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-04-15

    PDF
    461,68 kB
