Multi-function measurement device Evolution SM103E
EAN
3250615639981
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for measuring instruments 8 products available
Complete your system
-
SM214
Unit Ethernet+RS485 Jbus/Modbus for SM103E
-
SM213Unit Ethernet Jbus/Modbus for SM103E
-
SM211Unit RS485 Jbus/Modbus for SM103E
-
SM205Unit T°C for SM103E
-
SM204Memory Unit for SM103E
-
SM203Analogue output module for SM103E
-
SM202
2 Inputs / 2 Outputs module for SM103E
-
SM201Pulsed output module for SM103E
Technical properties
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height96 mm
-
Width96 mm
-
Depth60 mm
Safety
-
Ingress Protection (IP) classIP51
Capacity
-
Number of modules5
Use conditions
-
Operating temperature-10 - 55 °C
-
Storage/transport temperature-20 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Connection
-
Cross-section flexible conductor2.5 - 6 mm²
-
Cross-section rigid conductor2.5 - 6 mm²
Power
-
Total power loss under IN10 W
-
Power consumption VA10 VA
Equipment
-
Type of displayLCD
Measurement
-
Frequency measuring range45 - 65 Hz
-
Type of measuring instrumentMultimeter
-
Current measurement range0 - 9995 A
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

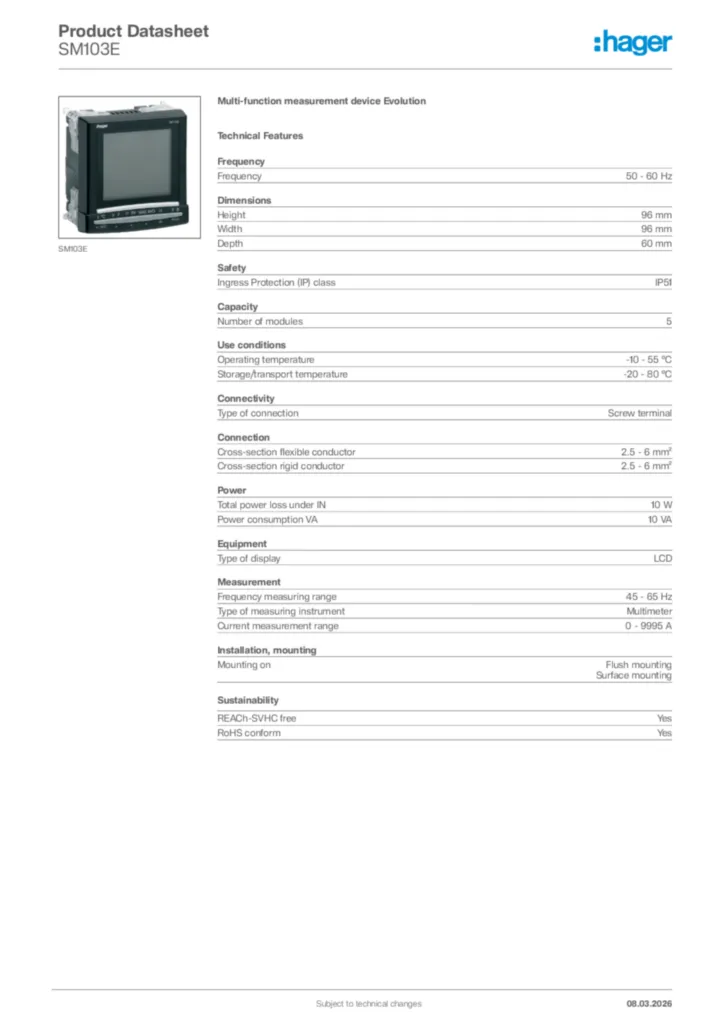

Product datasheet
