The Hager Analogue Output Module for SM103E delivers precise analog control for building automation, ideal for actuators, valves, and speed drives. Its slim 84×21×36 mm design saves panel space, while IP20 protection and 4 kV rated insulation ensure safety. Reliable across -10 to 55°C operation, with -20 to 80°C storage. Easy wiring via 0.5-1.5 mm² flexible or rigid conductors simplifies installation.

EAN

3250615632036

Packaging

1 Piece

Energy metering agardio

Memory Unit for SM103E, 4kV insulation, IP20, -10 to 55°C SM203

Technical properties
Environmental value
Documentations
More products

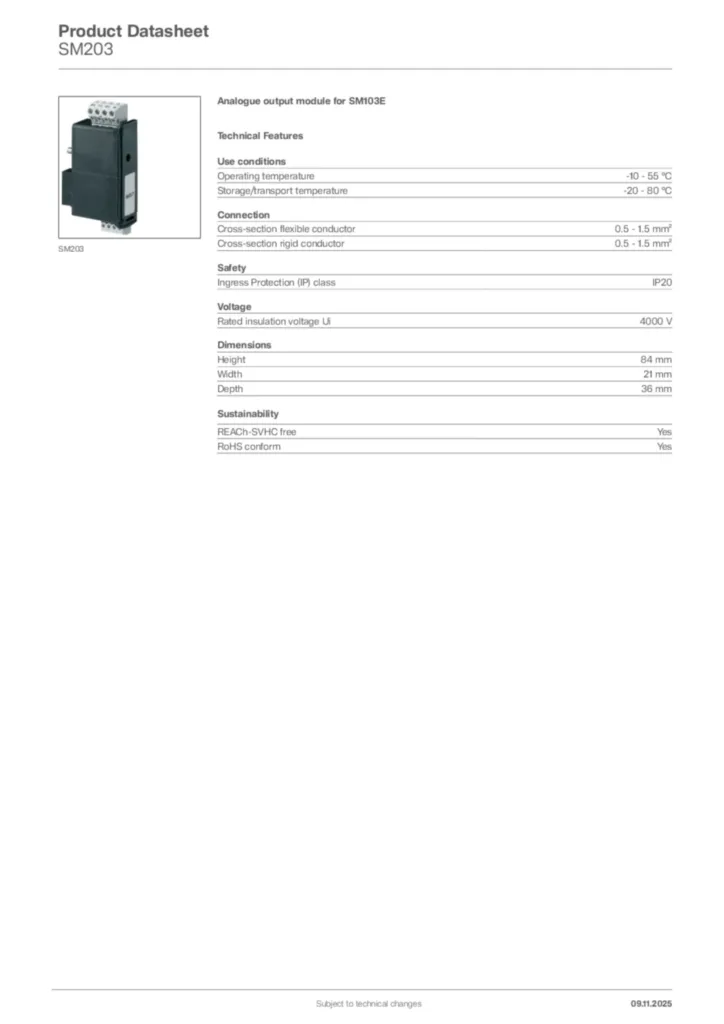

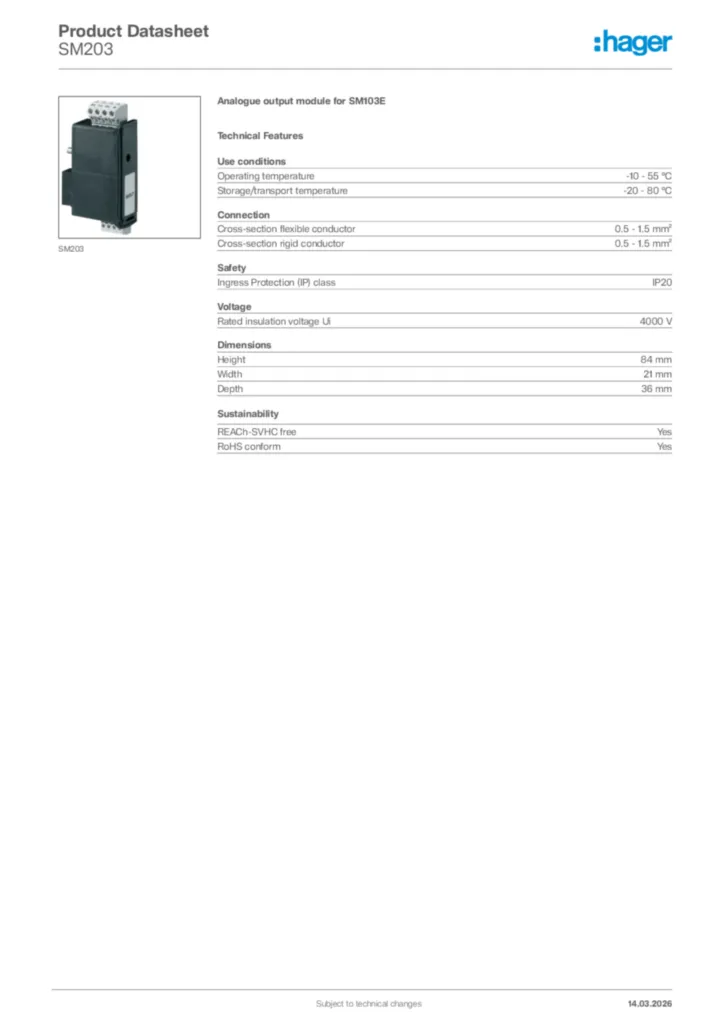

Download the data sheet

Technical properties

Operating temperature

-10 - 55 °C
Storage/transport temperature

-20 - 80 °C

Cross-section flexible conductor

0.5 - 1.5 mm²
Cross-section rigid conductor

0.5 - 1.5 mm²

Ingress Protection (IP) class

IP20

Rated insulation voltage Ui

4000 V

Height

84 mm
Width

21 mm
Depth

36 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
