The Hager pressure-fit installation column, single-sided and Clip45 compatible, delivers power/data to open spaces with quick mounting between 2.7-3.0 m. Compact 65×65 mm anodized aluminium profile with 300 mm height adjustment. A 2500 mm² inner cross-section and top cable entry ease wiring. One 45 mm lid for devices. Suitable for ceiling and floor mounting, providing robust, tidy, space-saving distribution.
EAN
4012740857093
Packaging
2
Table built-in outlet 3x sockets + 1x RJ45 Cat6, 3m lead, Ø102mm, Alu, IP20 DBS452700ELN
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Depth65 mm
-
Width65 mm
-
Installation height2.7 - 3.0 m
-
Height adjustment300 mm
-
Inner cross-section2500 - 2500 mm²
-
Pole shapeRectangular
-
Lid width45 mm
Cover, door
-
Number of mountable lids1
Equipment
-
AdjustableYes
-
Is portableNo
Cable
-
Cable entry positionTop
Installation, mounting
-
Ceiling mounting possibleYes
-
Suitable for ground mountingYes
Materials
-
MaterialAluminium
-
TreatmentAnodised
-
ColourAluminium
Configuration
-
Number of sides for installationSingle side
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

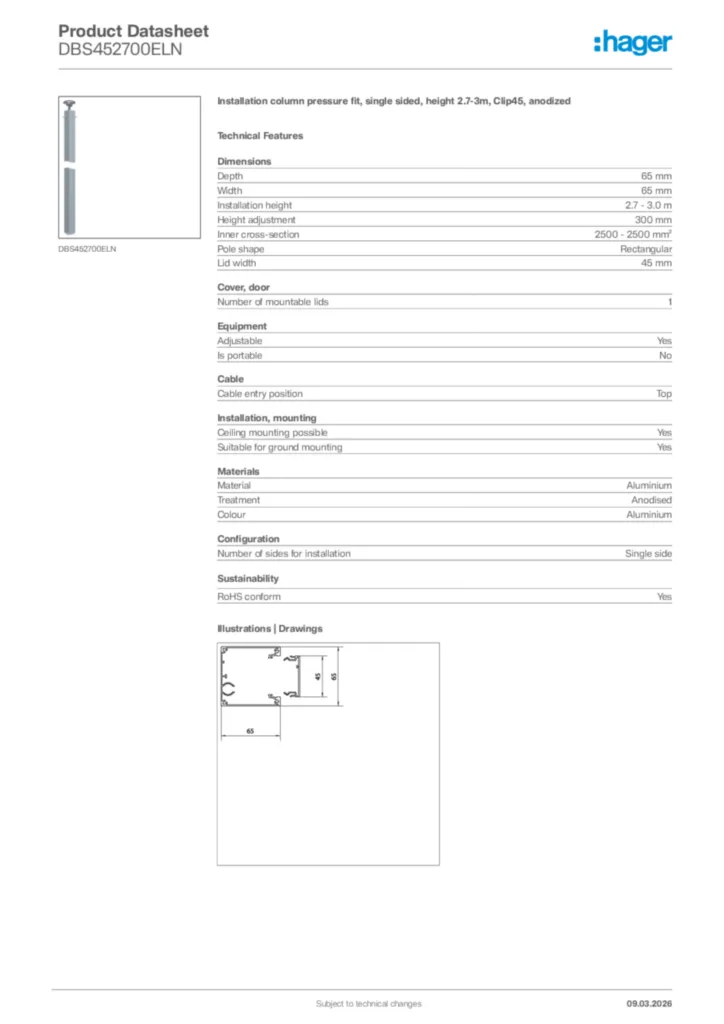

Product datasheet
Hager Product data sheet DBS452700ELN
Installation column pressure fit, single sided, height 2.7-3m, Clip45, anodized
PDF -
Instruction manual
Instruction manual International 2020-01-01
PDF1,72 MB -
Declaration of conformity
Declaration of conformity en-GB 2026-08-07
PDF289,67 kB
EC declaration of conformity DA_DB_DE
Declaration of conformity International 2017-11-20
PDF133,23 kB
