Slotted panel trunking made of PVC BA7A 40x25mm grey BA7A40025
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Wire clamp slotted cable duct system 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Dimensions
-
Height40 mm
-
Width25 mm
-
Length2000 mm
-
Slit width6 mm
-
Slot width6.50 mm
-
Inner cross-section605 - 605 mm²
Equipment
-
Cover in scope of deliveryYes
Materials
-
MaterialPolyvinylchloride (PVC)
-
ColourStone grey
-
RAL code7030
Functions
-
Is self-extinguishingYes
Standards
-
Flammability class according UL94V0
Safety
-
Fire resistance classM1
Architecture
-
FlexibleNo
Configuration
-
Side wallSlotted
Connectivity
-
Mounting typeScrew mounting
Installation, mounting
-
Mounting onMounting plate
Electric current
-
Is current leak stableYes
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

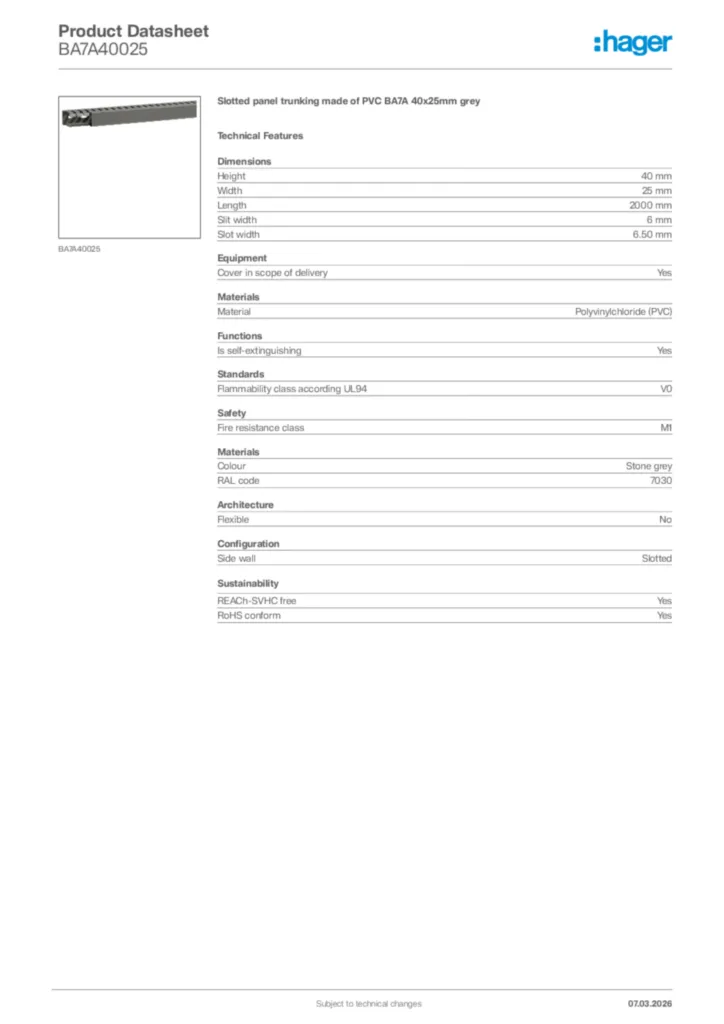

GeneratedProductDatasheet
Hager Product data sheet BA7A40025
Slotted panel trunking made of PVC BA7A 40x25mm grey
PDF -
ProductBimStep
Step Model BA7A40025
STEP files International 2026-04-15
STP608,34 kB -
ProductECDeclaration
Declaration of conformity en-GB 2026-08-07
PDF295,76 kB
