The Hager BA7 slotted panel trunking 80x25mm in stone grey (RAL7030) organizes and protects wiring in control panels. Supplied with cover, its 2 m length and 6/6.5 mm slits/slots enable neat cable entry/exit. Made of PVC, self‑extinguishing UL94 V0 with M1 fire resistance, it boosts safety and installation speed for industrial and commercial enclosures.
EAN
4012740878609
VPE
20 meters
BA7 slotted PVC panel trunking 80x100mm RAL7030 UL94 V0 cover incl. BA780025
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Spacer sleeve 2 product.page.accessories.products-available -
Draper hand riveter 3 product.page.accessories.products-available -
Screw rosette 1 product.page.accessories.products-available -
Shears for cutting trunking 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Dimensions
-
Height80 mm
-
Width25 mm
-
Length2000 mm
-
Slit width6 mm
-
Slot width6.50 mm
-
Inner cross-section1485 - 1485 mm²
Equipment
-
Cover in scope of deliveryYes
Materials
-
MaterialPolyvinylchloride (PVC)
-
ColourStone grey
-
RAL code7030
Functions
-
Is self-extinguishingYes
Standards
-
Flammability class according UL94V0
Safety
-
Fire resistance classM1
Architecture
-
FlexibleNo
Configuration
-
Side wallSlotted
Connectivity
-
Mounting typeScrew mounting, Rivet mounting
Installation, mounting
-
Mounting onMounting plate
Electric current
-
Is current leak stableYes
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

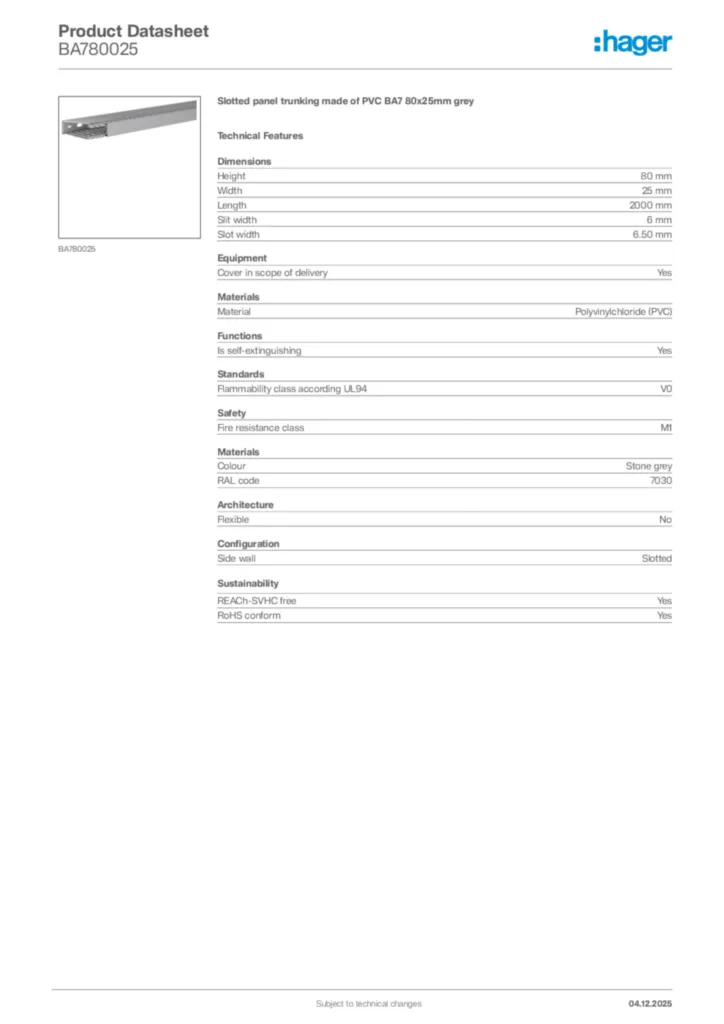

GeneratedProductDatasheet

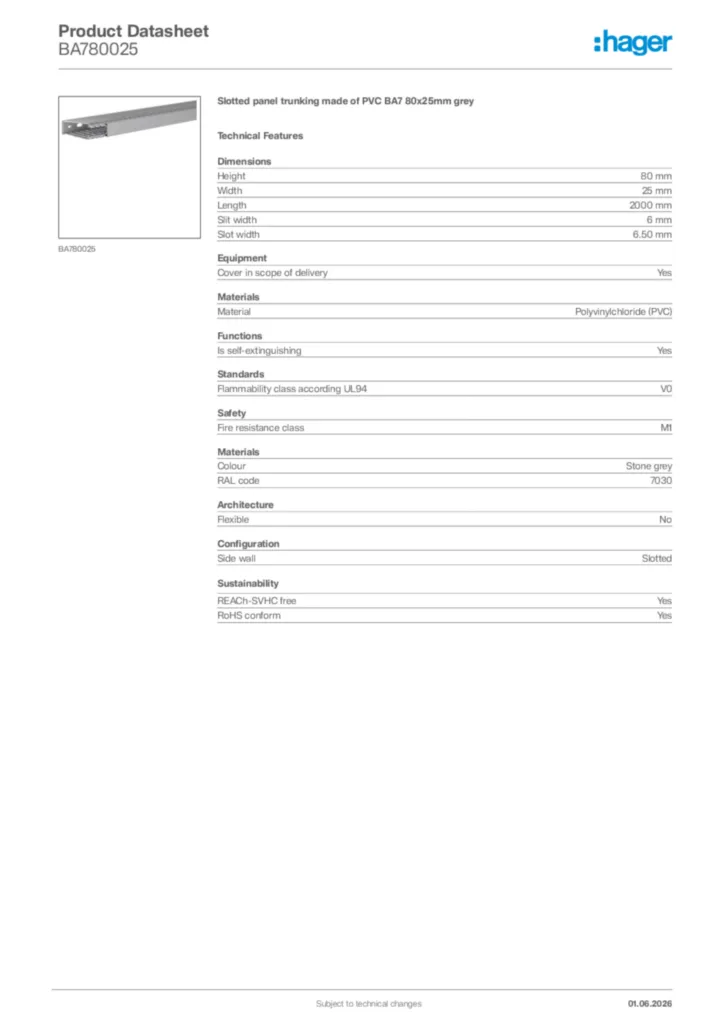

Hager Product data sheet BA780025
Slotted panel trunking made of PVC BA7 80x25mm grey
PDF -
ProductBimStep
Step Model BA780025
STEP files International 2026-04-15
STP766,70 kB -
ProductECDeclaration
Declaration of conformity en-GB 2026-08-07
PDF307,86 kB
