The Hager R.x KNX (TP+EASY) movement detector module for 2.20 m mounting automates lighting on KNX TP and easy systems. Adjustable brightness 5-1000 lx and detection 45-90° (90-180° horizontal) enhance comfort and energy savings. Timer 10 s-30 min. Three modes (auto/permanent ON/OFF) via push button. Bus powered 21-32 V, ~10 mA; bus connector included. Includes presence simulation, party function, secure claw mounting. Operating -5 to 45°C.

EAN

3250617154574

Packaging

1 Piece

KNX motion and occupancy sensors

KNX (TP+EASY) Movement Detector 1.10m 5-1000 lx 90-180° 21-32V 80262260

Accessories
Technical properties
Environmental value
Documentations
More products

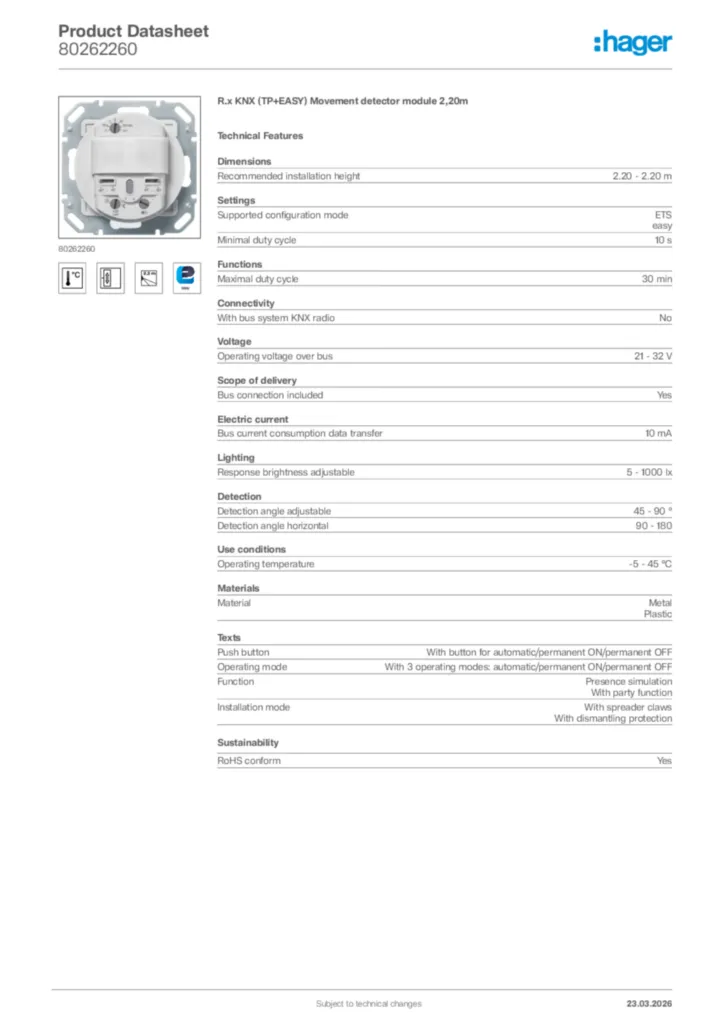

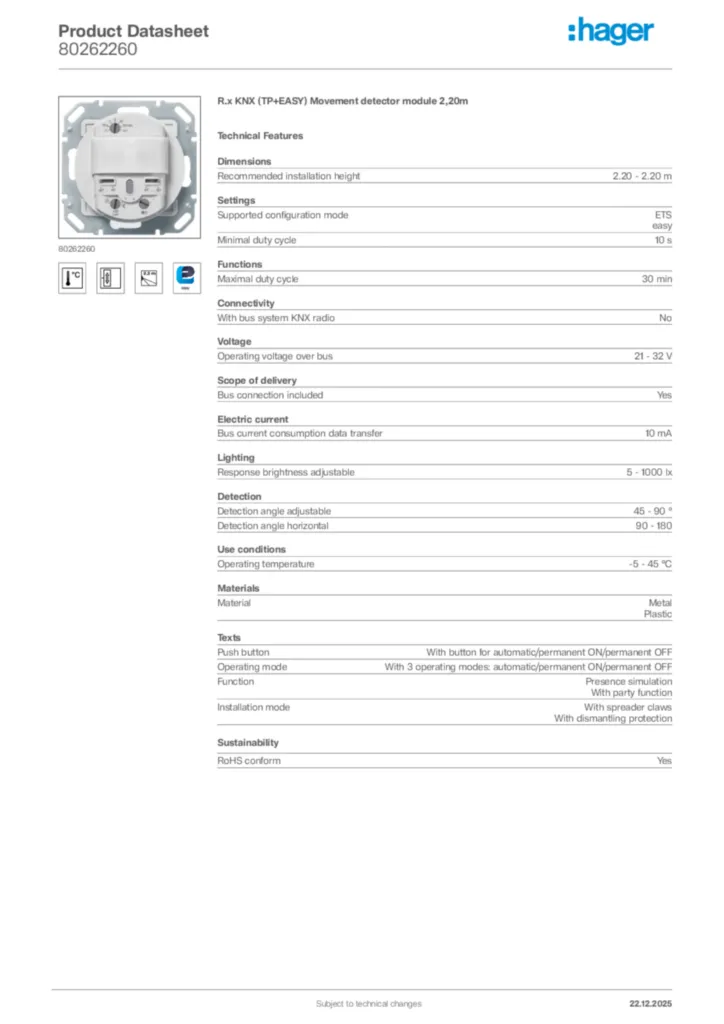

Download the data sheet

Complete your system

80960460

R.x Cover for KNX (TP+EASY) Movement detector module, polar white

80960465

R.x Cover for KNX (TP+EASY) Movement detector module, black

Referenced by 2 products available

Technical properties

Recommended installation height

2.20 - 2.20 m

Supported configuration mode

ETS, easy
Minimal duty cycle

10 s

Maximal duty cycle

30 min

With bus system KNX radio

No

Operating voltage over bus

21 - 32 V

Bus connection included

Yes

Bus current consumption data transfer

10 mA

Response brightness adjustable

5 - 1000 lx

Detection angle adjustable

45 - 90 °
Detection angle horizontal

90 - 180

Operating temperature

-5 - 45 °C

Material

Metal, Plastic

Push button

With button for automatic/permanent ON/permanent OFF
Operating mode

With 3 operating modes: automatic/permanent ON/permanent OFF
Function

Presence simulation, With party function
Installation mode

With spreader claws, With dismantling protection

Max. transmission range frontally

8 m
Max. transmission range sideways

6 m

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
