Surge Protection Device 4P T2 TNS/TT Uc 275V In 5kA Imax 15kA

SPB415D

  • Modular devices

Surge Protection Device 4P T2 TNS/TT Uc 275V In 5kA Imax 15kA SPB415D

EAN
3250615515568
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

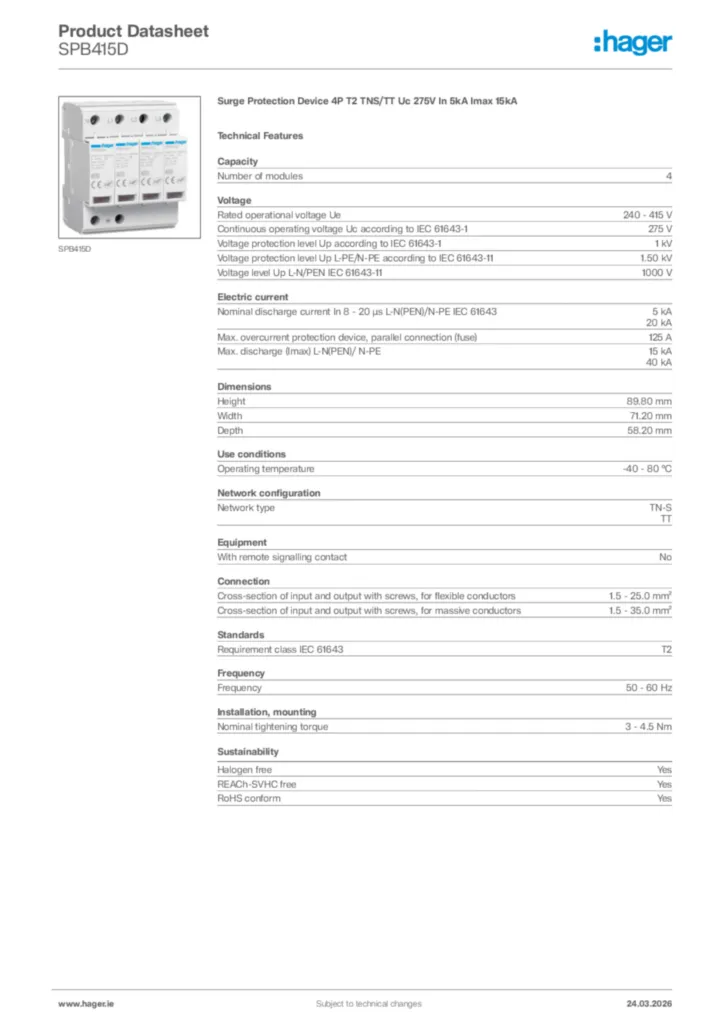

Download the data sheet

Complete your system

Optional accessories

  • Surge protec­tion device for power supply systems 2 products available

Complete your system

  • Surge protec­tion device for power supply systems
  • SPB015D

    Cartridge L-N Uc 275V In 5kA Imax 15kA Up 1kV
    0.00 €  / *
    Add to a list
    Add to a list
  • SPB040N

    Cartridge N-PE Uc 260V In 20kA Imax 40kA Up 1.5kV
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Capa­city
  • Number of modules
    4
Voltage
  • Rated oper­a­tional voltage Ue
    240 - 415 V
  • Continuous oper­ating voltage Uc according to IEC 61643-1
    275 V
  • Voltage protec­tion level Up according to IEC 61643-1
    1 kV
  • Voltage protec­tion level Up L-PE/N-PE according to IEC 61643-11
    1.50 kV
  • Voltage level Up L-N/PEN IEC 61643-11
    1,000 V
Elec­tric current
  • Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643
    5 kA, 20 kA
  • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
    125 A
  • Max. discharge (Imax) L-N(PEN)/ N-PE
    15 kA, 40 kA
Dimen­sions
  • Height
    89.80 mm
  • Width
    71.20 mm
  • Depth
    58.20 mm
Use condi­tions
  • Oper­ating temper­ature
    -40 - 80 °C
Network config­ur­a­tion
  • Network type
    TN-S, TT
Equip­ment
  • With remote signalling contact
    No
Connec­tion
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1.5 - 25.0 mm²
  • Cross-sec­tion of input and output with screws, for massive conductors
    1.5 - 35.0 mm²
Stand­ards
  • Require­ment class IEC 61643
    T2
Frequency
  • Frequency
    50 - 60 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    3 - 4.5 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes
Halogen free Yes

Certifications and documents

PEP_HAGER_HAGE_00444_V01.01_EN_27082021.PDF
PDF
231,28 kB
REACH declaration SPB415D (english)
PDF
103,10 kB
RoHS declaration SPB415D (english)
PDF
103,59 kB

Downloads

  • Product image

    Image SPB415D | Hager

    Product Image SPB415D

  • Declaration of conformity

    Image Declaration of conformity for Lightning rod 8-15-40-65-100kA | Hager

    Declaration of conformity for Lightning rod 8-15-40-65-100kA

    Declaration of conformity International 2021-08-25

    PDF
    305,83 kB
