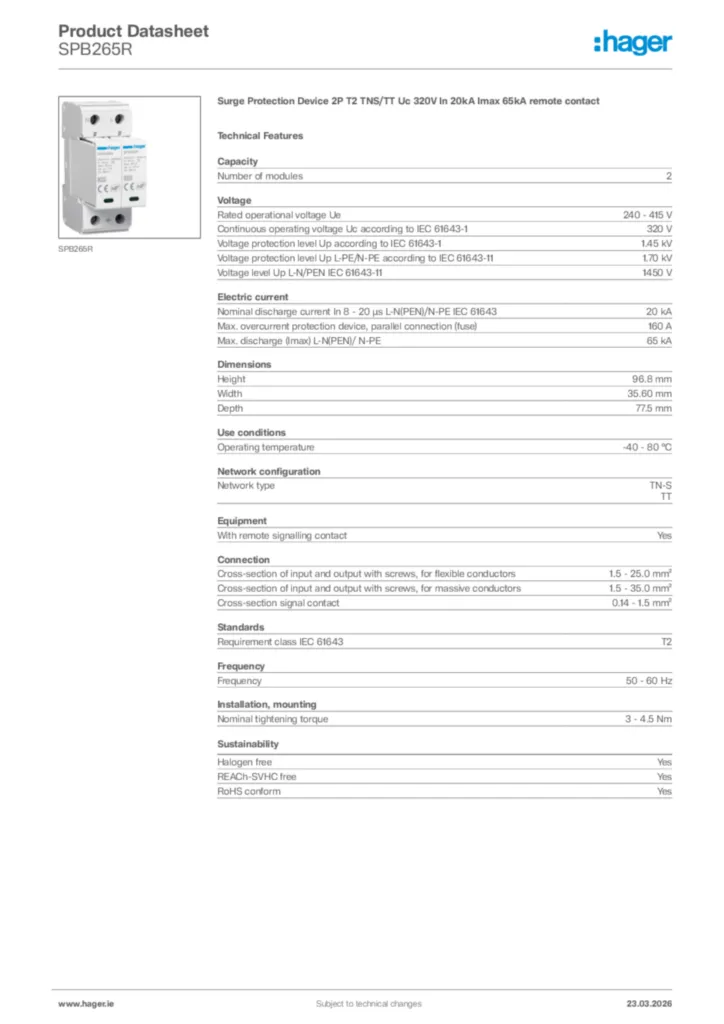

Surge Protection Device 2P T2 TNS/TT Uc 320V In 20kA Imax 65kA remote contact SPB265R
EAN
3250615515490
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surge protection device for power supply systems 2 products available
Technical properties
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Continuous operating voltage Uc according to IEC 61643-1320 V
-
Voltage protection level Up according to IEC 61643-11.45 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111.70 kV
-
Voltage level Up L-N/PEN IEC 61643-111,450 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
-
Max. overcurrent protection device, parallel connection (fuse)160 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE65 kA
Dimensions
-
Height96.8 mm
-
Width35.60 mm
-
Depth77.5 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN-S, TT
Equipment
-
With remote signalling contactYes
Connection
-
Cross-section of input and output with screws, for flexible conductors1.5 - 25.0 mm²
-
Cross-section of input and output with screws, for massive conductors1.5 - 35.0 mm²
-
Cross-section signal contact0.14 - 1.5 mm²
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 4.5 Nm
