4-pole, 125A Modular Switch with Red Toggle SBR499
EAN
3250615510525
Packaging
3 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Phase separation functions 1 products available -
Terminal cover 1 products available -
Auxiliary device for distribution board devices 1 products available
Compatible products
-
Referenced by 1 products available
Technical properties
Architecture
-
Number of poles4
-
Neutral positionWithout neutral
-
Type of pole4P
Electric current
-
Rated current125 A
-
Rated conditional short-circuit current Icc with gl-gG fuses1.50 kA
-
Acceptable current rating AC21 category A125 A
-
Acceptable current rating AC21 category B125 A
-
Acceptable current rating AC22 category A125 A
-
Acceptable current rating AC22 category B125 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-32.11 kA
-
Rated short-time withstand current Icw 1s IEC 609471.50 kA
Installation, mounting
-
Nominal tightening torque3.60 - 3.60 Nm
-
Type of bottom connection for modular devicesScrew terminal
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp6,000 V
Capacity
-
Number of modules4
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height83 mm
-
Width70 mm
-
Depth69 mm
Equipment
-
Number of NO contacts4
-
Number of NC contacts0
Use conditions
-
Operating temperature-20 - 70 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor6 - 35 mm²
-
Cross-section rigid conductor6 - 50 mm²
Endurance
-
Number of mechanical operations40,000
-
Electrical durability at nominal load in AC21 in operating cycles2,500
-
Electrical durability at nominal load in AC22 in operating cycles2,500
Power
-
Total power loss under IN32 W
-
Power loss per pole at In8 W
Connectivity
-
Down connection alignment for modular devicesAligned terminal
-
Top connection alignment for modular devicesAligned terminal
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

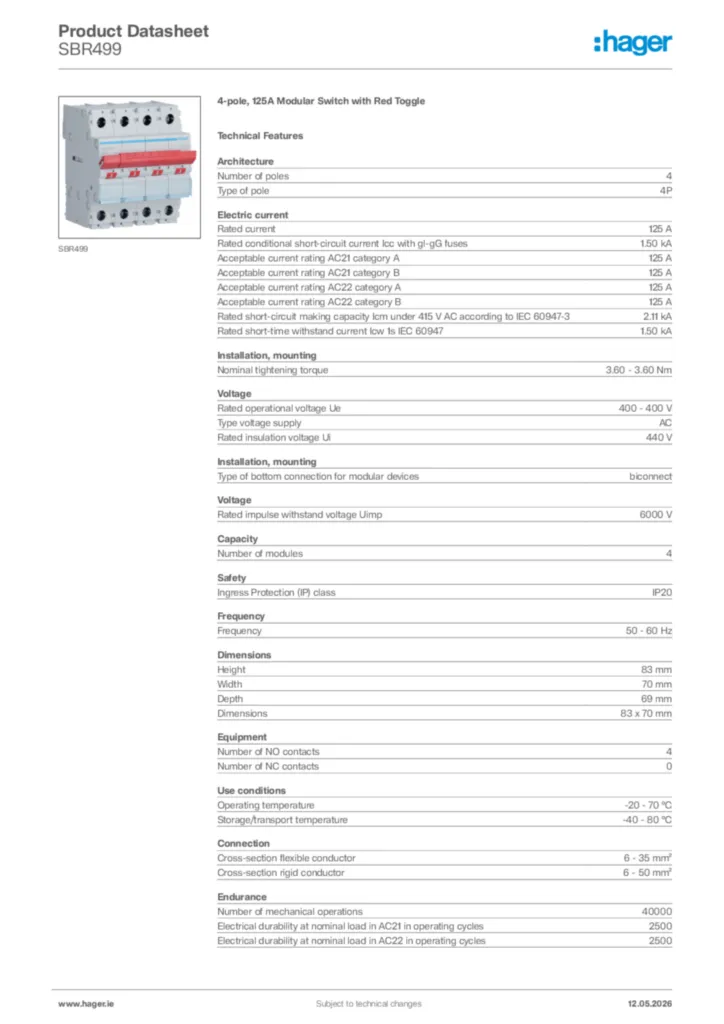

Hager Product data sheet SBR499
