    Auxiliary contact 6A, 1NO+1NC ESC080

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Auxiliary contact 6A, 1NO+1NC

    ESC080

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 42 products available

    Referenced by

    • SBR390

      3-pole, 100A Modular Switch with Red Toggle
      0.00 €  / *
    • SBR380

      3-pole, 80A Modular Switch with Red Toggle
      0.00 €  / *
    • ESD440

      Contactor 40A, 4NO, 24VAC 50Hz
      0.00 €  / *
    • SBR290

      2-pole, 100A Modular Switch with Red Toggle
      0.00 €  / *
    • SBR280

      2-pole, 80A Modular Switch with Red Toggle
      0.00 €  / *
    • SBR299

      2-pole, 125A Modular Switch with Red Toggle
      0.00 €  / *
    • SBR399

      3-pole, 125A Modular Switch with Red Toggle
      0.00 €  / *
    • SBR490

      4-pole, 100A Modular Switch with Red Toggle
      0.00 €  / *
    • SBR499

      4-pole, 125A Modular Switch with Red Toggle
      0.00 €  / *
    • SBR240

      2-pole, 40A Modular Switch with Red Toggle
      0.00 €  / *
    • SBR199

      1-pole, 125A Modular Switch with Red Toggle
      0.00 €  / *
    • SBR190

      1-pole, 100A Modular Switch with Red Toggle
      0.00 €  / *
    • ESC241

      Contactor 40A, 2NC, 230V~50Hz
      0.00 €  / *
    • ESC325

      Contactor 25A, 3NO, 230V~50Hz
      0.00 €  / *
    • SBR363

      3-pole, 63A Modular Switch with Red Toggle
      0.00 €  / *
    • ESC225

      Contactor 25A, 2NO, 230V~50Hz
      0.00 €  / *
    • ESC226

      Contactor 25A, 2NC, 230V~50Hz
      0.00 €  / *
    • ESC240

      Contactor 40A, 2NO, 230V~50Hz
      0.00 €  / *
    • ESC240S

      Humfree Contactor 40A, 2NO, 230V~50/60Hz
      0.00 €  / *
    • ESC263

      Contactor 63A, 2NO, 230V~50Hz
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      6 A
    Voltage
    • Rated insu­la­tion voltage Ui
      240 V
    Capa­city
    • Number of modules
      0.50
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 50 °C
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Connectivity
    • Type of connec­tion
      Screw terminal
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1 - 6 mm²
    • Cross-sec­tion rigid conductor
      1 - 6 mm²
    • Type of contacts
      1NC+1NO
    Power
    • Total power loss under IN
      0.10 W
    Dimen­sions
    • Height
      83 mm
    • Width
      11 mm
    • Depth
      60 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration ESC080
    PDF
    Hager RoHS report ESC080
    PDF

    Downloads

    • Product image

      Image ESC080 | Hager

      Product Image ESC080

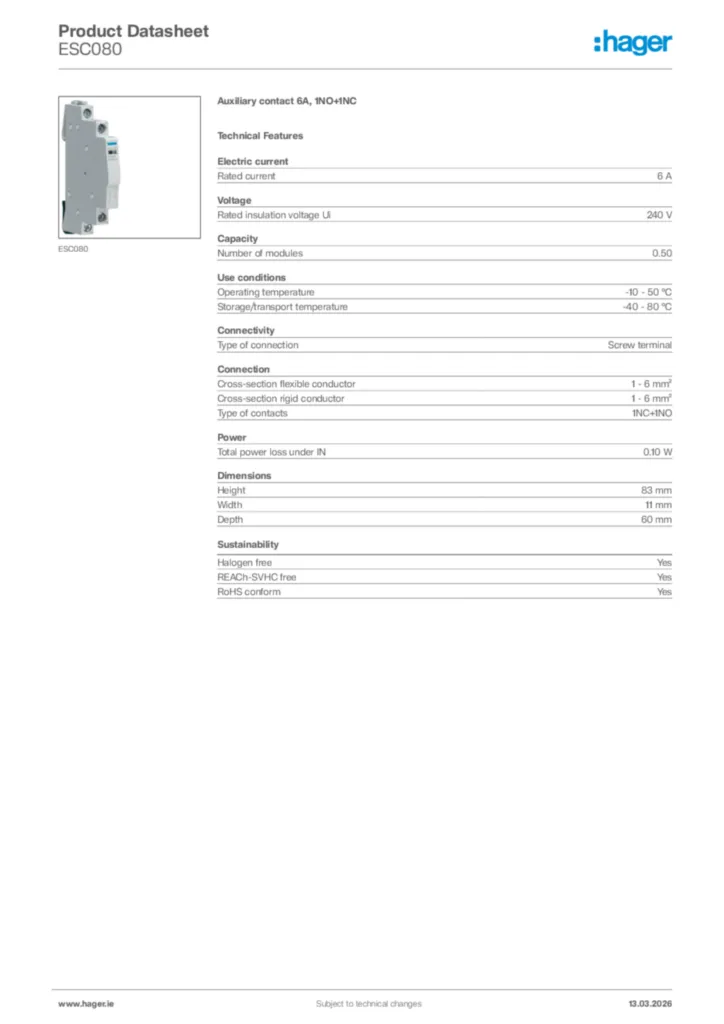

    • Product datasheet

      Image Hager Product data sheet ESC080 | Hager

      Hager Product data sheet ESC080

      Auxiliary contact 6A, 1NO+1NC

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-12-01

      PDF
      283,97 kB
