250A 2+20 Way Hybrid TPN With Switch Disconnector and Plain Door JK20220BSD

EAN
5015652601265
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

250A 2+20 Way Hybrid TPN With Switch Disconnector and Plain Door

JK20220BSD

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (19)
    • Cable entry cabinet 6 products available
    • Small equipped distri­bu­tion board 4 products available
    • Gland plate for enclosure 2 products available
    • Trans­ition cover section for install­a­tion duct 2 products available
    • Distrib­utor assembly with main switch 1 products available
    • Common Accessories 1 products available

    Complete your system

    • Cable entry cabinet
    • Small equipped distri­bu­tion board
    • Gland plate for enclosure
    • Trans­ition cover section for install­a­tion duct
    • Distrib­utor assembly with main switch
    • Common Accessories
    • Component for earth­ing/equi­po­ten­tial bonding
    • Busbar system for distri­bu­tion boards
    • Insert for lock system
    • JN206BE

      Large Extension Box, No Door
      0.00 €  / *
    • JN205BE

      Small Extension Box, No Door
      0.00 €  / *
    • JN203BEG

      Large DIN Rail Box Glazed
      0.00 €  / *
    • JN203BE

      Large DIN Rail Box Plain
      0.00 €  / *
    • JN201BEG

      Small DIN Rail Box Glazed
      0.00 €  / *
    • JN201BE

      Small DIN Rail Box Plain
      0.00 €  / *
    • JK22504M

      250A 4 Pole JK2 MCCB Incomer Kit
      0.00 €  / *
    • JK22504D

      250A 4 Pole JK2 Direct Incomer Kit
      0.00 €  / *
    • JK22503S

      250A 3 Pole JK2 Switch Incomer Kit
      0.00 €  / *
    • JK22503M

      250A 3 Pole JK2 MCCB Incomer Kit
      0.00 €  / *
    • JN2PLATE

      JN Endplate
      0.00 €  / *
    • JK2PLATEM

      Spare Gland Plate 1.2mm
      0.00 €  / *
    • JK06TK

      Trunking Kit for TPN 6"
      0.00 €  / *
    • JK04TK

      Trunking Kit for TPN 4"
      0.00 €  / *
    • JK21253M

      125A 3 Pole JK2 MCCB Incomer Kit
      0.00 €  / *
    • JKLABELPACK

      Spare Label Pack - All Sizes (One Pack)
      0.00 €  / *
    • JK030BEB

      Earth Bar Hi Int, 2 x 15 Connections
      0.00 €  / *
    • JN212BPA

      250A 12 Way Pan Assembly
      0.00 €  / *
    • JK222PK

      JK1/JK2 Door Lock Kit
      0.00 €  / *

    Technical properties

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Func­tions
    • Has protec­tion main switch
      Yes
    • Overvoltage protec­tion
      No
    Capa­city
    • Number of modules
      60
    Elec­tric current
    • Rated current
      250 A
    Dimen­sions
    • Depth
      165.50 mm
    • Height
      1,400 mm
    • Width
      465 mm
    Cover, door
    • Inter­lock­able
      No
    • Door/­cover is trans­parent
      No
    Mater­ials
    • RAL code
      7035
    • Colour
      Light grey
    • Material
      Steel
    Connec­tion
    • Number of access­ible phases
      3
    Scope of delivery
    • Number of RCCB in enclosure
      0
    Safety
    • Ingress Protec­tion (IP) class
      IP30
    • Protec­tion class
      Isol­a­tion class I

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    125A 4 Way TPN Board c/w SD & SPD
    PDF
    17,17 MB
    Hager REACH declaration JK20220BSD
    PDF
    Hager RoHS report JK20220BSD
    PDF

    Downloads

    • Product image

      Image JK20220BSD | Hager

      Product Image JK20220BSD

    • Product datasheet

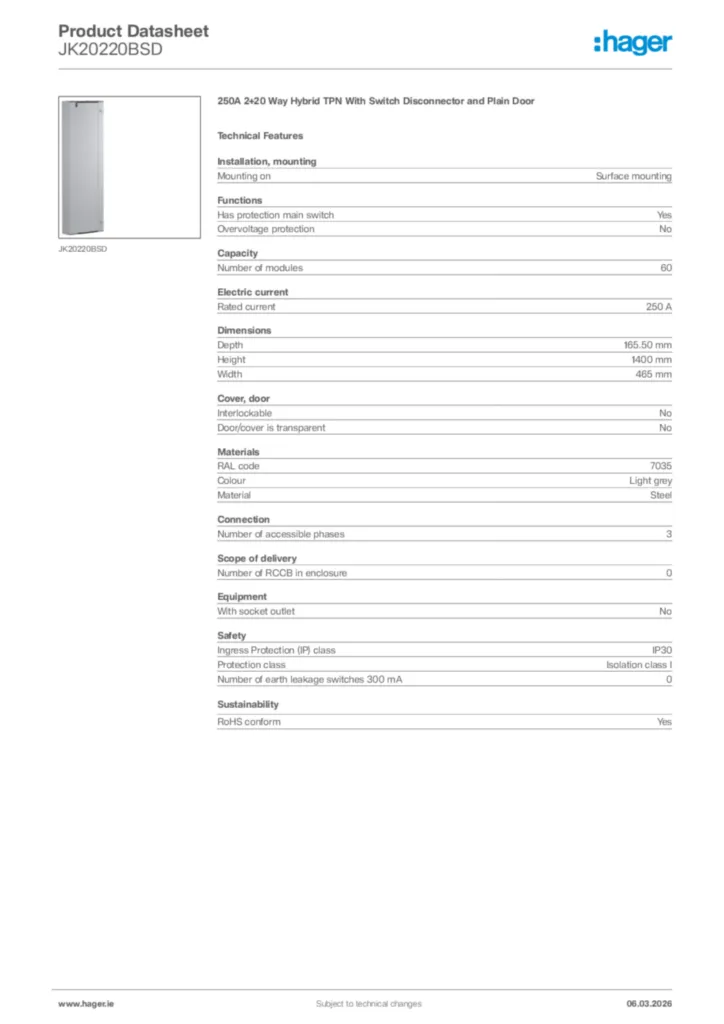

      Image Hager Product data sheet JK20220BSD | Hager
