Moulded Case Circuit Breaker h1600 4P 50kA 1600A LSI HNF991H
EAN
3250613349929
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries interlocking cable 1 products available -
Auxiliaries contact block 3 products available -
Under voltage coil 10 products available -
Shunt release 6 products available -
Handle for power circuit breaker 2 products available -
See more 4 other products available
Complete your system
-
HXE011H
UVR 24V DC (h800-h1000-h1600)
-
HXE013HUVR 110-120V AC (h800-h1000-h1600)
-
HXE014HUVR 220-240V AC (h800-h1000-h1600)
-
HXE015HUVR 380-415V AC (h800-h1000-h1600)
-
HXE018HUVR 100-120 V DC (h800-h1000-h1600)
-
HXE019HUVR 200-240 V DC (h800-h1000-h1600)
-
HXF051HUndervoltage Release delayed h800-h1600 4P 24VDC
-
HXF053HUndervoltage Release delayed h800-h1600 4P 110-120VAC
-
HXF054HUndervoltage Release delayed h1600 4P 220-240VAC
-
HXF055HUndervoltage Release delayed h800-h1600 4P 380-415VAC
Technical properties
Electric current
-
Rated current1,600 A
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2100 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2100 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-250 kA
-
Breaking capacity on 1-pole for AC 230 V IEC 60947-260 kA
-
Breaking capacity on 1-pole for AC 400 V IEC 60947-29 kA
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
Capacity
-
Number of modules16
Tripping
-
Response time when opening10 ms
Settings
-
Magnetic protection knob setting xIN2.5, 5, 10
-
Range of magnetic adjustment8960 A, 11200 A, 14000 A, 17920 A, 19200 A, 19200 A, 19200 A
-
Thermal protection knob setting xIN0.4, 0.5, 0.63, 0.8, 0.9, 0.95, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque65 - 65 Nm
-
Mounting-/Connection PositionFront
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitLSI
Main electrical attributes
-
Magnetic protection trip time100 - 200 ms
Power
-
Total power loss under IN168.90 W
-
Power loss per pole at In56.30 W
Endurance
-
Electric endurance in number of cycles1,000
-
Number of mechanical operations4,000
Equipment
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor3x 240 mm²
-
Cross-section rigid conductor3x 240 mm²
-
Connector/plug typeTerminal
Controls and indicators
-
Motor drive integratedNo
Compatibility
-
Suitable for DIN RailNo
Power supply
-
Position power supplyBidirectional
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-

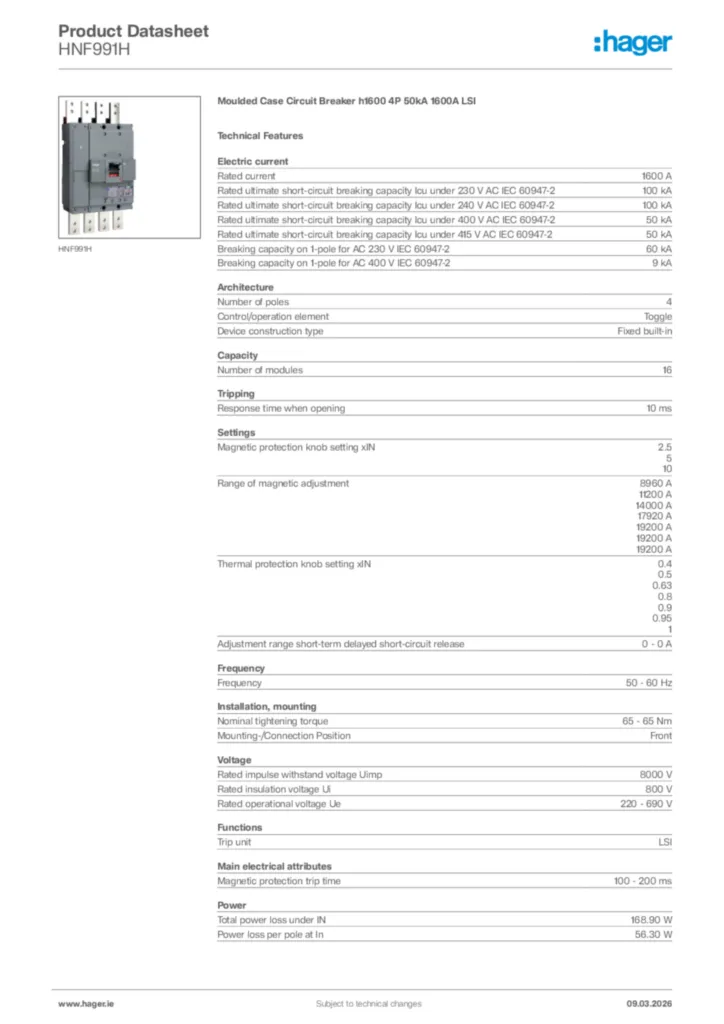

Product image
-
