Moulded Case Circuit Breaker h1000 3P 50kA 800A LSI HNE800H

EAN

3250613349738

Packaging

1 Piece

Accessories
Technical properties
Documentations
More products

Download the data sheet

Complete your system

Under voltage coil 10 products available
Locking interlocking functions 1 products available
Shunt release 10 products available
Motor operator 2 products available
Auxiliaries interlocking cable 2 products available
Auxiliaries contact block 3 products available

Technical properties

Rated current

800 A
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

85 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

50 kA
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-2

50 kA
Breaking capacity on 1-pole for AC 230 V IEC 60947-2

51 kA
Breaking capacity on 1-pole for AC 400 V IEC 60947-2

9 kA

Number of poles

3
Control/operation element

Toggle
Device construction type

Fixed built-in

Number of modules

12

Response time when opening

10 ms

Magnetic protection knob setting xIN

2.5, 5, 10
Range of magnetic adjustment

4480 A, 5600 A, 7000 A, 8960 A, 9600 A, 9600 A, 9600 A
Thermal protection knob setting xIN

0.4, 0.5, 0.63, 0.9, 0.95, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Frequency

50 - 60 Hz

Nominal tightening torque

65 - 65 Nm
Mounting-/Connection Position

Front

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 690 V

Trip unit

LSI

Magnetic protection trip time

100 - 200 ms

Total power loss under IN

153.60 W
Power loss per pole at In

51.20 W

Electric endurance in number of cycles

1,000
Number of mechanical operations

4,000

Number of auxiliary contacts as change-over contact

0
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0

Ingress Protection (IP) class

IP4X

Operating temperature

-25 - 70 °C

Cross-section flexible conductor

2x 240 mm²
Cross-section rigid conductor

2x 240 mm²
Connector/plug type

Terminal

Motor drive integrated

No

Suitable for DIN Rail

No

Position power supply

Bidirectional

Downloads

Product image

Product Image HNE800H
Product datasheet

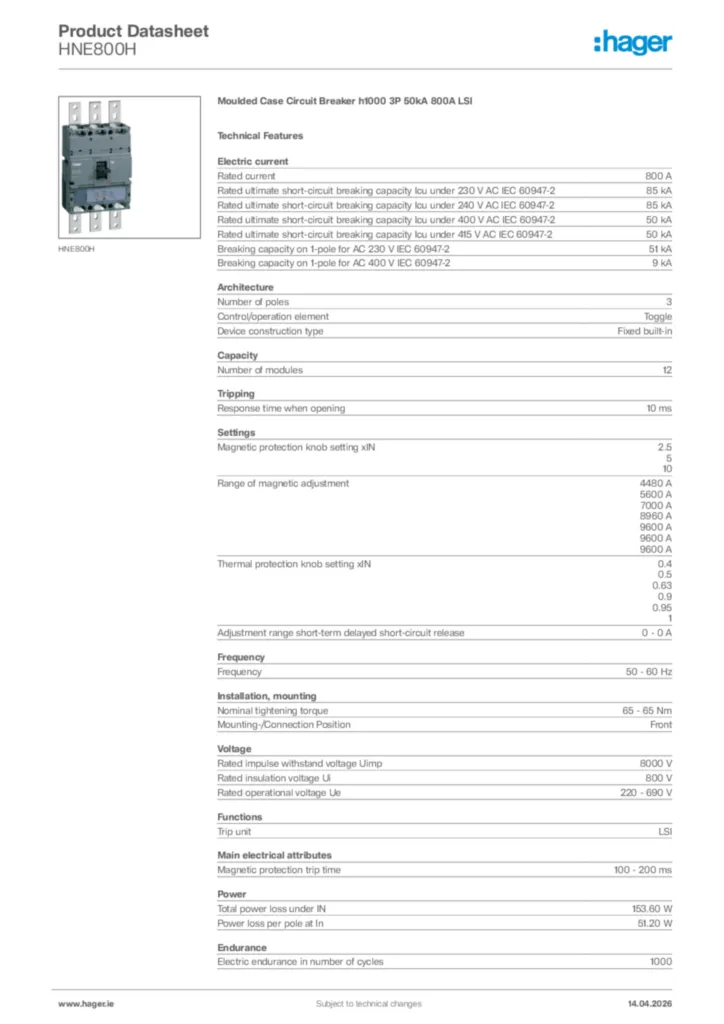

Hager Product data sheet HNE800H
