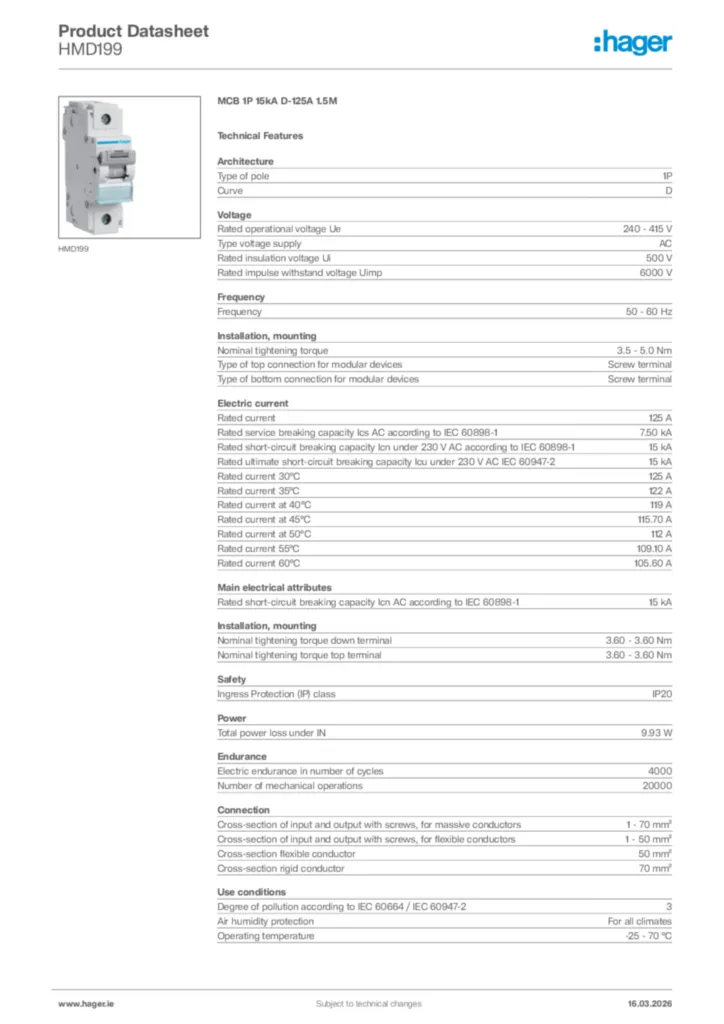

Rated service breaking capacity Ics AC according to IEC 60898-1
7.50 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1
15 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2
15 kA
Rated current 30°C
125 A
Rated current 35°C
122 A
Rated current at 40°C
119 A
Rated current at 45°C
115.70 A
Rated current at 50°C
112 A
Rated current 55°C
109.10 A
Rated current 60°C
105.60 A
Main electrical attributes
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1
15 kA
Nominal tightening torque down terminal
3.60 - 3.60 Nm
Nominal tightening torque top terminal
3.60 - 3.60 Nm
Power
Total power loss under IN
9.93 W
Endurance
Electric endurance in number of cycles
4,000
Number of mechanical operations
20,000
Connection
Cross-section of input and output with screws, for massive conductors
1 - 70 mm²
Cross-section of input and output with screws, for flexible conductors
1 - 50 mm²
Use conditions
Degree of pollution according to IEC 60664 / IEC 60947-2
3
Air humidity protection
For all climates
Capacity
Number of modules
1.50
Connectivity
Top connection alignment for modular devices
Aligned terminal
Down connection alignment for modular devices
Aligned terminal
Dimensions
Height
90 mm
Width
27 mm
Depth
70 mm
