Fuse comb. switch 4P - 63 A / T000 HFD406
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Auxiliary contact block 2 product.page.accessories.products-available -
Terminal cover 1 product.page.accessories.products-available -
Switch operating shaft 2 product.page.accessories.products-available -
Door coupling handle for switchgear 2 product.page.accessories.products-available -
Accessories/spare parts for low-voltage switch technology 1 product.page.accessories.products-available
product.page.accessories.title-modal
catalog.pageproduct.tab_additional_title.link
Electric current
-
Rated current IN63 A
Architecture
-
Number of poles4
-
Control/operation elementDoor coupling rotary drive
-
Type of pole4P
Voltage
-
Rated insulation voltage Ui750 V
Power
-
Power dissipation at IN33.60 W
-
Power loss per pole at In8.40 W
-
Rated operational power under 400 V AC AC141,000 W
Safety
-
Ingress Protection (IP) classIP00
Fuse
-
Fuse sizeNH000
Dimensions
-
Height118 mm
-
Width168 mm
Cover, door
-
Interlockablecatalog.pageproduct.attribute_boolean.yes
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link
catalog.pageproduct.sustainability_block.downloads_h3
catalog.pageproduct.title_asset.h2
-
Product image
-
GeneratedProductDatasheet

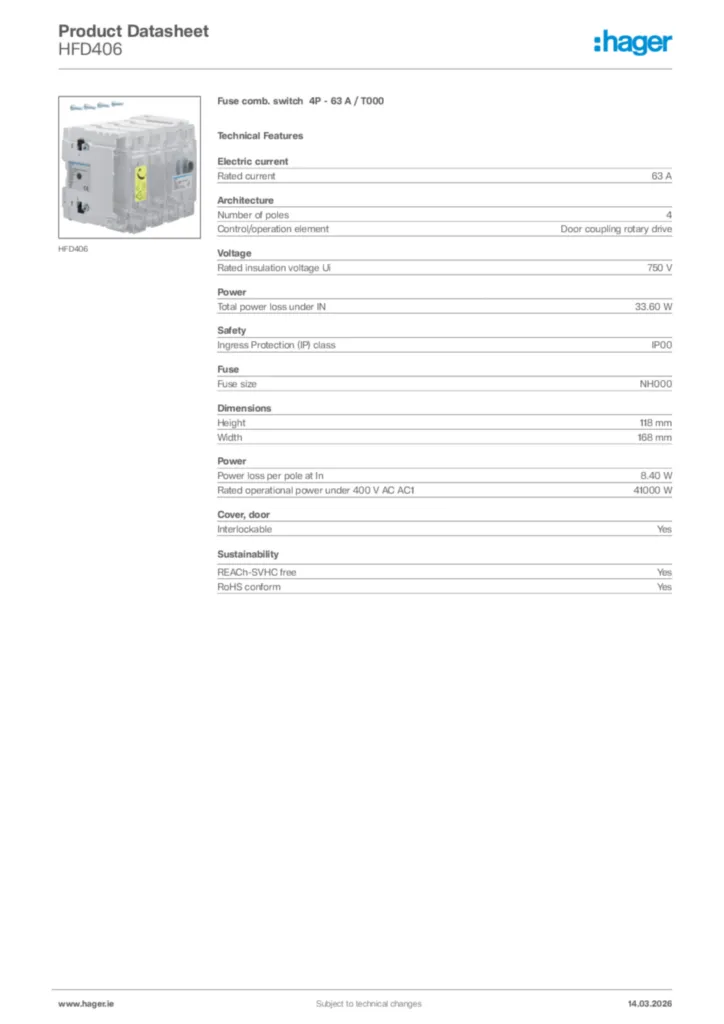

Hager Product data sheet HFD406
Fuse comb. switch 4P - 63 A / T000
PDF -
ProductECDeclaration
Declaration
Declaration of conformity International 2022-04-13
PDF941,41 kB
Declaration of conformity en-US 2026-07-14
PDF330,36 kB
catalog.pageproduct.showmore_documents.button
