    • Home
    • Catalogue
    • Distri­bu­tion systems
    • Enclos­ures up to 63A
    • Gamma and accessories
    • GD213H
    EAN
    3250612845323
    Packaging
    1 Piece
    • Gamma and accessories

    Enclosure,gamma,surface mounting,26Modules, version Ireland GD213H

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Enclosure,gamma,surface mounting,26Modules, version Ireland

    GD213H

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 1 products available
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 1 products available
    • Cover strip 2 products available
    • Accessor­ies/s­pare parts for terminals 1 products available
    • Side/­back panel 1 products available

    Complete your system

    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Cover strip
    • Accessor­ies/s­pare parts for terminals
    • Side/­back panel
    • GZ32A

      Sealing kit, gamma, for enclosure, 13-72 modules
      0.00 €  / *
    • GR213AN

      Elevation frame, gamma, 26 modules
      0.00 €  / *
    • P031F

      Cover strips, universal, for 1/2 module
      0.00 €  / *
    • P032F

      Cover strips, universal, for 1 module
      0.00 €  / *
    • GZ30A

      Terminal carrier, gamma, for Quick Connect
      0.00 €  / *
    • GS213D

      Back plate, gamma, 26 modules, 2row
      0.00 €  / *

    Technical properties

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      63 A
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      26
    Dimen­sions
    • Height
      375 mm
    • Width
      250 mm
    • Depth
      103 mm
    • Number of width units
      13
    Cover, door
    • Number of cabinet doors
      0
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    Hager REACH declaration GD213H
    PDF
    Hager RoHS report GD213H
    PDF

    Downloads

    • Product image

      Image GD213H | Hager

      Product Image GD213H

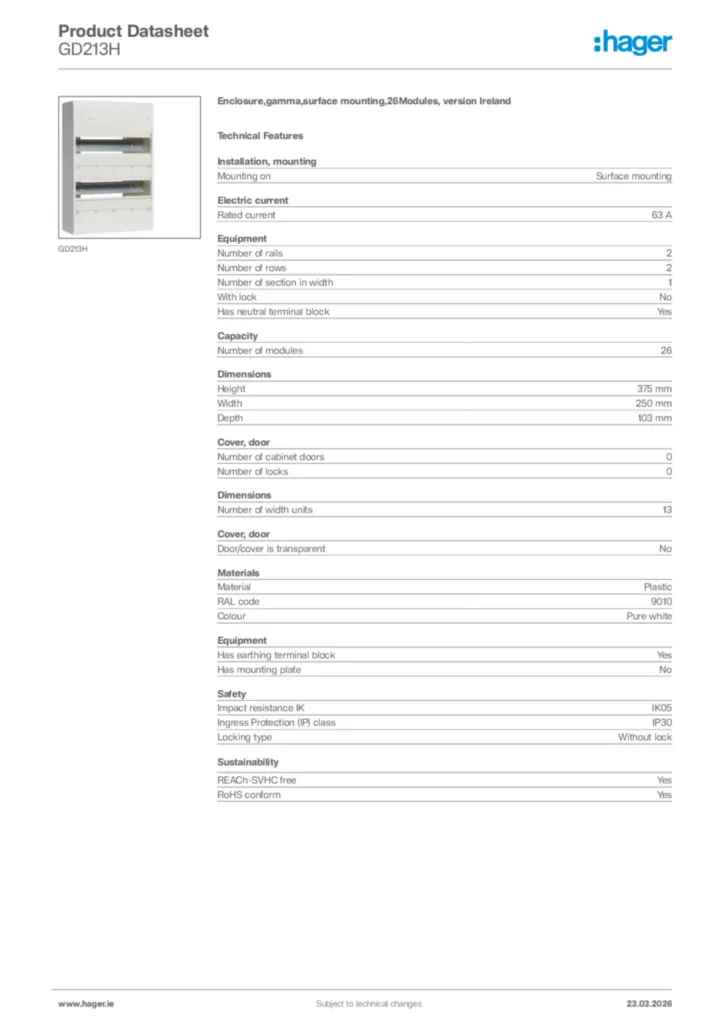

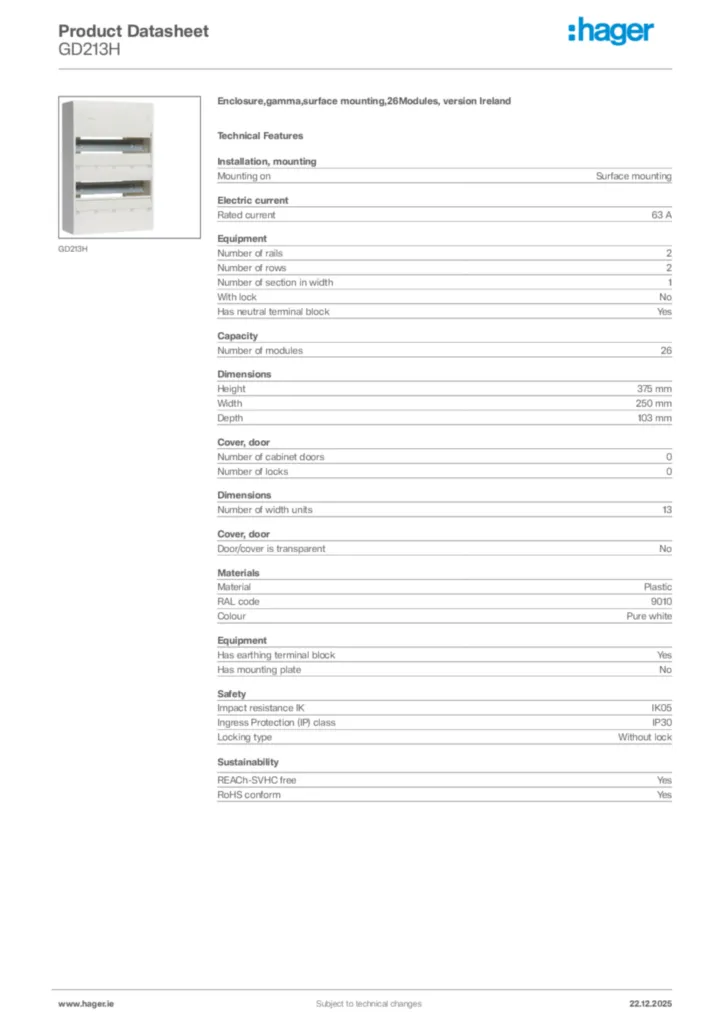

    • Product datasheet

      Image Hager Product data sheet GD213H | Hager

      Hager Product data sheet GD213H

      Enclosure,gamma,surface mounting,26Modules, version Ireland

      PDF

    • BIM Revit objects

      Image Range:GAMMA-Enclosures_Surface_mounted-IP30-Without_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:GAMMA-Enclosures_Surface_mounted-IP30-Without_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,16 MB
      Image Range:GAMMA-Enclosures_Surface_mounted-IP30-Without_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:GAMMA-Enclosures_Surface_mounted-IP30-Without_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,16 MB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-10-24 | Hager

      Declaration of conformity en-GB 2025-10-24

      PDF
      363,16 kB
    More documentation

    Discover more of this product range

      5
    • 1
      GP118T - Door,gamma,transparent,spare door,for enclosure 18M
      GP118T
      Door, gamma, transparent, spare door, for enclosure 18M
    • 2
      GP418P - Door,gamma,white,spare door,for enclosure, 72Modules
      GP418P
      Door, gamma, white, spare door, for enclosure, 72Modules
    • 3
      GP318T - Door,gamma,transparent,spare door,for enclosure, 54Modules
      GP318T
      Door, gamma, transparent, spare door, for enclosure, 54Modules
    • 4
      GP418T - Door,gamma,transparent,for enclosure,72Modules
      GP418T
      Door, gamma, transparent, for enclosure, 72Modules
    • 5
      GP118P - Door,gamma,white,spare door,for enclosure 13M
      GP118P
      Door, gamma, white, spare door, for enclosure 13M
