RCCB 1P+N 16A 30mA A

CDA516D

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Complete your system

Optional accessories

  • Locking inter­locking func­tions 1 products available
  • Phase separ­a­tion func­tions 1 products available
  • Mech­anic accessories for low-voltage compon­ents 1 products available
  • Shunt release 1 products available
  • Auxil­i­aries contact block 2 products available

Complete your system

  • Locking inter­locking func­tions
  • Phase separ­a­tion func­tions
  • Mech­anic accessories for low-voltage compon­ents
  • Shunt release
  • Auxil­i­aries contact block
  • MZN175

    Padlockable locking kit for MCB, RCCB and RCBO
    0.00 €  / *
  • MZN121

    1 set of 3 inter-pole barriers for MCB
    0.00 €  / *
  • LZ060

    Heat dissipation insert
    0.00 €  / *
  • MZ203

    Shunt trip 230-415V AC 110-130V DC
    0.00 €  / *
  • MZ202

    Alarm contact 1C+1O 6A 240V AC
    0.00 €  / *
  • MZ201

    Auxiliary contact 1C+1O 6A 240V AC
    0.00 €  / *

Technical properties

Archi­tec­ture
  • Type of pole
    1P+N
Elec­tric current
  • Rated current
    16 A
  • Rated residual oper­ating current Idn
    30 mA
  • Breaking and opening capa­city Idm
    1.25 kA
  • Rated condi­tional short-­cir­cuit current Inc according to EN61008-1
    10 kA
  • Rated current -25°C
    16 A
  • Rated current at -20°C
    16 A
  • Rated current -15°C
    16 A
  • Rated current -10°C
    16 A
  • Rated current -5°C
    16 A
  • Rated current at 0°C
    16 A
  • Rated current 5°C
    16 A
  • Rated current 10°C
    16 A
  • Rated current 15°C
    16 A
  • Rated current at 20°C
    16 A
  • Rated current 25°C
    16 A
  • Rated current 30°C
    16 A
  • Rated current 35°C
    16 A
  • Rated current at 40°C
    16 A
  • Rated current at 45°C
    16 A
  • Rated current at 50°C
    16 A
  • Rated current 55°C
    16 A
  • Rated current 60°C
    16 A
  • Rated current 65°C
    16 A
  • Rated current 70°C
    16 A
Install­a­tion, mounting
  • Nominal tight­ening torque top terminal
    3.60 - 3.60 Nm
  • Nominal tight­ening torque down terminal
    3.60 - 3.60 Nm
  • Type of top connec­tion for modular devices
    Screw terminal
  • Type of bottom connec­tion for modular devices
    bicon­nect
Voltage
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • Type voltage supply
    AC
  • Rated insu­la­tion voltage Ui
    500 V
  • Dielec­tric strength value of power frequency
    2 kV
  • Rated impulse with­stand voltage Uimp
    4,000 V
  • Rated impulse with­stand voltage Uimp IEC 60947-3
    6,000 V
  • Max. oper­ating voltage
    253 V
Frequency
  • Frequency
    50 - 50 Hz
Capa­city
  • Number of modules
    2
Compat­ib­ility
  • Suit­able for DIN Rail
    Yes
Safety
  • Residual current type
    A
  • Ingress Protec­tion (IP) class
    IP20
Connec­tion
  • Cross-sec­tion of output with screws, for massive conductors
    1 - 25 mm²
  • Cross-sec­tion of output with screws, for flex­ible conductors
    1 - 16 mm²
Power
  • Total power loss under IN
    0.51 W
Use condi­tions
  • Max. Alti­tude
    2,000 m
  • Oper­ating temper­ature
    -25 - 70 °C
Endur­ance
  • Elec­tric endur­ance in number of cycles
    10,000
  • Number of mech­an­ical oper­a­tions
    20,000
Connectivity
  • Type of connec­tion
    Screw terminal
  • Top connec­tion align­ment for modular devices
    Aligned terminal
  • Down connec­tion align­ment for modular devices
    Aligned terminal
Dimen­sions
  • Height
    85 mm
  • Width
    36 mm
  • Depth
    70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration CDA516D
PDF
Hager RoHS report CDA516D
PDF
RCCB 4P 40A 30mA A Class
PDF
23,23 MB

Downloads

  • Product image

    Image CDA516D | Hager

    Product Image CDA516D

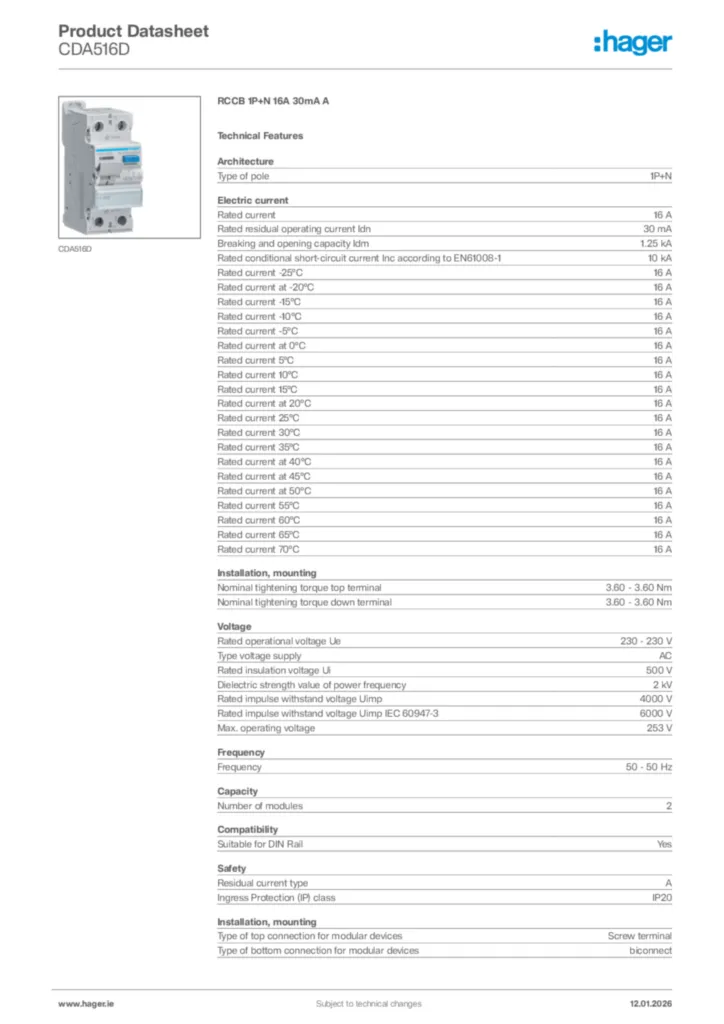

  • Product datasheet
