RCBO with dangerous arc detection 25A C curve 10kA Type A 30mA ARF575D

Name: ARF575D
Brand: Hager
SKU: ARF575D3

EAN

3250611034711

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

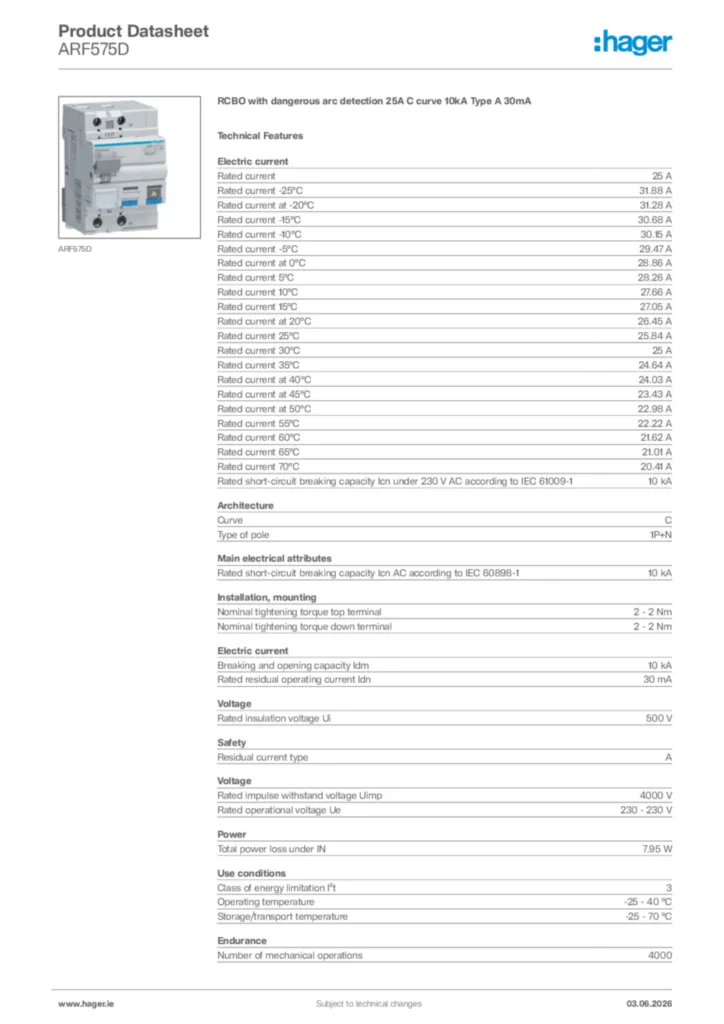

Download the data sheet

Complete your system

Mechanic accessories for low-voltage components 1 products available
Shunt release 1 products available
Auxiliaries contact block 2 products available
Modular phase busbar 3 products available

Technical properties

Rated current

25 A
Rated current -25°C

31.88 A
Rated current at -20°C

31.28 A
Rated current -15°C

30.68 A
Rated current -10°C

30.15 A
Rated current -5°C

29.47 A
Rated current at 0°C

28.86 A
Rated current 5°C

28.26 A
Rated current 10°C

27.66 A
Rated current 15°C

27.05 A
Rated current at 20°C

26.45 A
Rated current 25°C

25.84 A
Rated current 30°C

25 A
Rated current 35°C

24.64 A
Rated current at 40°C

24.03 A
Rated current at 45°C

23.43 A
Rated current at 50°C

22.98 A
Rated current 55°C

22.22 A
Rated current 60°C

21.62 A
Rated current 65°C

21.01 A
Rated current 70°C

20.41 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 61009-1

10 kA
Breaking and opening capacity Idm

10 kA
Rated residual operating current Idn

30 mA

Curve

C
Type of pole

1P+N

Nominal tightening torque top terminal

2 - 2 Nm
Nominal tightening torque down terminal

2 - 2 Nm
Nominal tightening torque

2.10 - 2.10 Nm
Type of bottom connection for modular devices

Screw terminal
Type of top connection for modular devices

Screw terminal

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Residual current type

A

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Rated operational voltage Ue

230 - 230 V

Total power loss under IN

7.95 W

Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C

Number of mechanical operations

4,000
Electric endurance in number of cycles

2,000

Number of modules

3

Height

83 mm
Width

53.20 mm
Depth

70 mm

Frequency

50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
