Arc fault detection devices (AFDD)

RCBO with dangerous arc detection 10A B curve 10kA Type A 30mA ARF510D

catalog.pageproduct.productbar_accessories.link
catalog.pageproduct.tab_additional_title.link
catalog.pageproduct.title_documents.h2
catalog.pagelevel.related_heading_range.link

product.page.accessories.title

Mechanic accessories for low-voltage components 1 product.page.accessories.products-available
Shunt release 1 product.page.accessories.products-available
Auxiliaries contact block 2 product.page.accessories.products-available
Modular phase busbar 3 product.page.accessories.products-available

catalog.pageproduct.tab_additional_title.link

Rated current IN

10 A
Rated current at -25°C

12.86 A
Rated current at -20°C

12.6 A
Rated current at -15°C

12.34 A
Rated current at -10°C

12.08 A
Rated current at -5°C

11.82 A
Rated current at 0°C

11.56 A
Rated current at 5°C

11.3 A
Rated current at 10°C

11.04 A
Rated current at 15°C

10.78 A
Rated current at 20°C

10.52 A
Rated current at 25°C

10.26 A
Rated current at 30°C

10 A
Rated current at 35°C

9.7 A
Rated current at 40°C

9.39 A
Rated current at 45°C

9.09 A
Rated current at 50°C

8.78 A
Rated current at 55°C

8.48 A
Rated current at 60°C

8.17 A
Rated current at 65°C

7.87 A
Rated current at 70°C

7.56 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 61009-1

10 kA
Breaking and opening capacity Idm

10 kA
Rated residual operating current Idn

30 mA

Curve

B
Type of pole

1P+N

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2 - 2 Nm
Nominal tightening torque down terminal

2 - 2 Nm
Nominal tightening torque

2.10 - 2.10 Nm
Type of bottom connection for modular devices

Screw terminal
Type of top connection for modular devices

Screw terminal

Residual current type

A

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Rated operational voltage Ue

230 - 230 V

Power dissipation at IN

3.18 W

Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C

Number of mechanical operations

4,000
Electric endurance in number of cycles

2,000

Number of modules

3

Height

83 mm
Width

53.20 mm
Depth

70 mm

Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²

Frequency

50 - 50 Hz

catalog.pageproduct.title_asset.h2

Product image

catalog.pageproduct.title_product_image.div ARF510D
GeneratedProductDatasheet

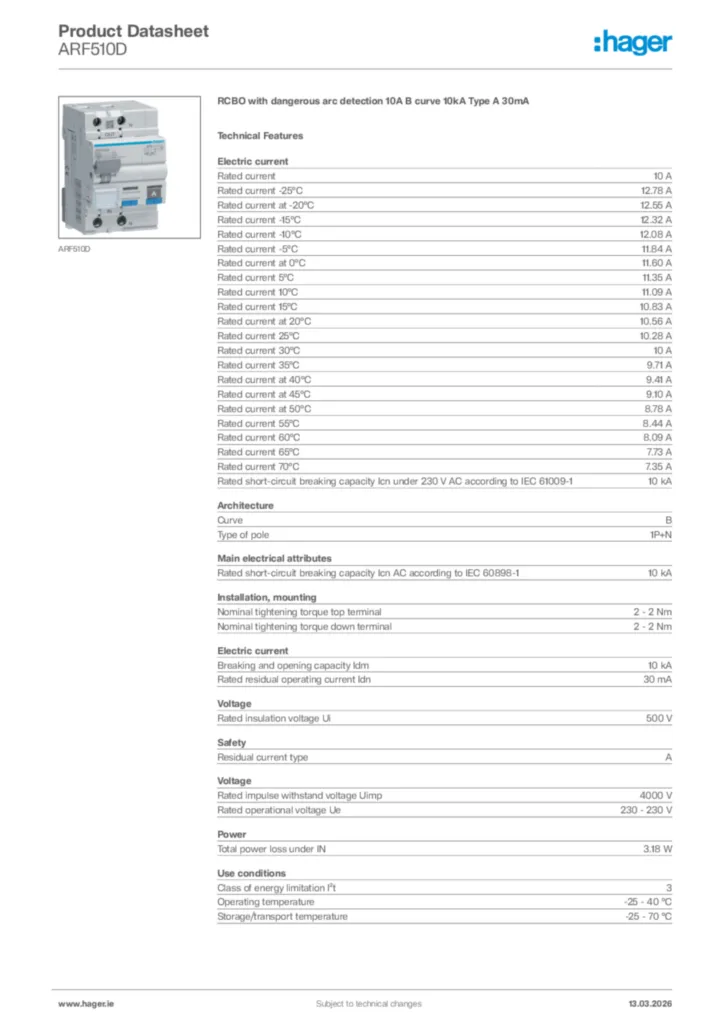

Hager Product data sheet ARF510D
