MCB with dangerous arc detection 1P+N 10kA B-25A 2M ARC525U
EAN
3250611311782
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliaries contact block 2 products available -
Shunt release 1 products available -
Under voltage coil 1 products available -
Modular phase busbar 4 products available -
See more 1 other products available
Complete your system

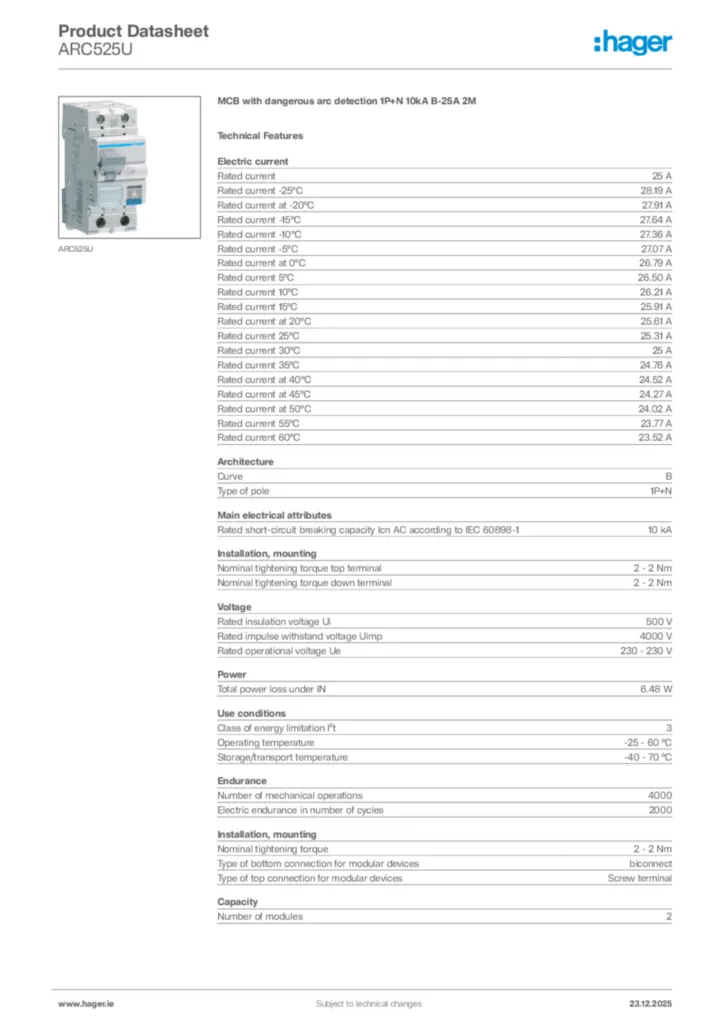

Technical properties
Electric current
-
Rated current25 A
-
Rated current -25°C28.19 A
-
Rated current at -20°C27.91 A
-
Rated current -15°C27.64 A
-
Rated current -10°C27.36 A
-
Rated current -5°C27.07 A
-
Rated current at 0°C26.79 A
-
Rated current 5°C26.50 A
-
Rated current 10°C26.21 A
-
Rated current 15°C25.91 A
-
Rated current at 20°C25.61 A
-
Rated current 25°C25.31 A
-
Rated current 30°C25 A
-
Rated current 35°C24.76 A
-
Rated current at 40°C24.52 A
-
Rated current at 45°C24.27 A
-
Rated current at 50°C24.02 A
-
Rated current 55°C23.77 A
-
Rated current 60°C23.52 A
Architecture
-
CurveB
-
Type of pole1P+N
Installation, mounting
-
Nominal tightening torque top terminal2 - 2 Nm
-
Nominal tightening torque down terminal2 - 2 Nm
-
Nominal tightening torque2 - 2 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated operational voltage Ue230 - 230 V
Power
-
Total power loss under IN6.48 W
Use conditions
-
Class of energy limitation I²t3
-
Operating temperature-25 - 60 °C
-
Storage/transport temperature-40 - 70 °C
Endurance
-
Number of mechanical operations4,000
-
Electric endurance in number of cycles2,000
Capacity
-
Number of modules2
Dimensions
-
Height85 mm
-
Width35.50 mm
-
Depth70 mm
Frequency
-
Frequency50 - 50 Hz
