RCBO 4P 6kA C-25A 30mA A Class ADM475C

Name: ADM475C
Brand: Hager
SKU: ADM475C

EAN

3250611020325

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

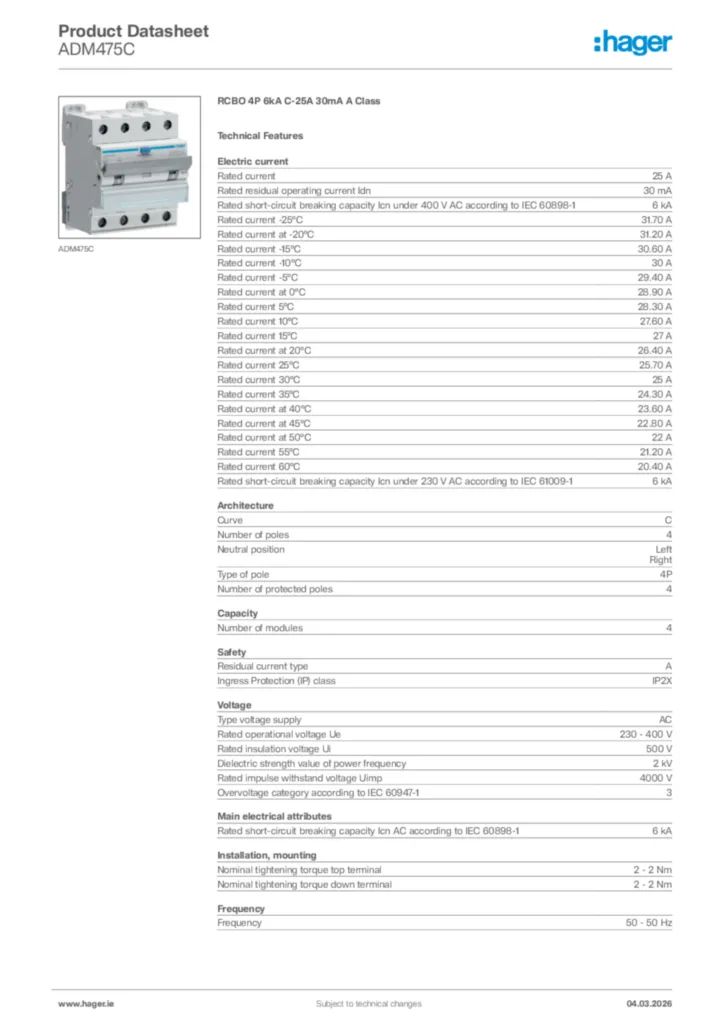

Download the data sheet

Complete your system

Modular phase busbar 4 products available
Locking interlocking functions 1 products available
Mechanic accessories for low-voltage components 1 products available
Shunt release 1 products available
Auxiliaries contact block 2 products available

Technical properties

Rated current

25 A
Rated residual operating current Idn

30 mA
Rated short-circuit breaking capacity Icn under 400 V AC according to IEC 60898-1

6 kA
Rated current -25°C

31.70 A
Rated current at -20°C

31.20 A
Rated current -15°C

30.60 A
Rated current -10°C

30 A
Rated current -5°C

29.40 A
Rated current at 0°C

28.90 A
Rated current 5°C

28.30 A
Rated current 10°C

27.60 A
Rated current 15°C

27 A
Rated current at 20°C

26.40 A
Rated current 25°C

25.70 A
Rated current 30°C

25 A
Rated current 35°C

24.30 A
Rated current at 40°C

23.60 A
Rated current at 45°C

22.80 A
Rated current at 50°C

22 A
Rated current 55°C

21.20 A
Rated current 60°C

20.40 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 61009-1

6 kA

Curve

C
Neutral position

Left, Right
Type of pole

4P
Number of protected poles

4

Number of modules

4

Residual current type

A
Ingress Protection (IP) class

IP2X

Type voltage supply

AC
Rated operational voltage Ue

230 - 400 V
Rated insulation voltage Ui

500 V
Dielectric strength value of power frequency

2 kV
Rated impulse withstand voltage Uimp

4,000 V
Overvoltage category according to IEC 60947-1

3

Nominal tightening torque top terminal

2 - 2 Nm
Nominal tightening torque down terminal

2 - 2 Nm
Nominal tightening torque

2 - 2 Nm
360° mounting position possible

Yes
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Frequency

50 - 50 Hz

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²

Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C

Height

84 mm
Width

71 mm
Depth

70 mm

Type of connection

Screw terminal

Total power loss under IN

12.30 W
