    RCBO 1P+N 10kA C-10A 30mA A Class ADA560D

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    RCBO 1P+N 10kA C-10A 30mA A Class

    ADA560D

    • catalog.pageproduct.productbar_accessories.link
    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    product.page.accessories.title

    product.page.accessories.associated-products

    • Modular phase busbar 4 product.page.accessories.products-available
    • Locking inter­locking func­tions 1 product.page.accessories.products-available
    • Mech­anic accessories for low-voltage compon­ents 1 product.page.accessories.products-available
    • Shunt release 1 product.page.accessories.products-available
    • Auxil­i­aries contact block 2 product.page.accessories.products-available
    • Protective cap/strip for phase busbar 1 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Modular phase busbar
    • Locking inter­locking func­tions
    • Mech­anic accessories for low-voltage compon­ents
    • Shunt release
    • Auxil­i­aries contact block
    • Protective cap/strip for phase busbar
    • KDN263B

      Insulated busbar 2P 63A fork 10mm² 57M
      €0.00  / *
    • KDN451D

      Insulated busbar 3x(P+N) 80A fork 16mm² 12M
      €0.00  / *
    • KDN280B

      Insulated busbar 2P 80A fork 16mm² 57M
      €0.00  / *
    • KDN451E

      Insulated busbar 3x(P+N) 80A fork 16mm² 54M
      €0.00  / *
    • MZN175

      Padlockable locking kit for MCB, RCCB and RCBO
      €0.00  / *
    • LZ060

      Heat dissipation insert
      €0.00  / *
    • MZ203

      Shunt trip 230-415V AC 110-130V DC
      €0.00  / *
    • MZ202

      Alarm contact 1C+1O 6A 240V AC
      €0.00  / *
    • MZ201

      Auxiliary contact 1C+1O 6A 240V AC
      €0.00  / *
    • KZN024

      Endcap for busbar KDN 4 poles
      €0.00  / *

    catalog.pageproduct.tab_additional_title.link

    Archi­tec­ture
    • Type of pole
      1P+N
    • Number of protected poles
      1
    • Curve
      C
    Safety
    • Residual current type
      A
    • Ingress Protec­tion (IP) class
      IP2X
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      10 kA
    Voltage
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4,000 V
    • Max. oper­ating voltage
      240 V
    • Rated oper­a­tional voltage Ue
      240 - 240 V
    • Overvoltage category according to IEC 60947-1
      3
    • Type voltage supply
      AC
    Elec­tric current
    • Rated current IN
      10 A
    • Rated residual oper­ating current Idn
      30 mA
    • Rated current at -25°C
      12.06 A
    • Rated current at -20°C
      11.88 A
    • Rated current at -15°C
      11.69 A
    • Rated current at -10°C
      11.5 A
    • Rated current at -5°C
      11.31 A
    • Rated current at 0°C
      11.13 A
    • Rated current at 5°C
      10.94 A
    • Rated current at 10°C
      10.75 A
    • Rated current at 15°C
      10.56 A
    • Rated current at 20°C
      10.38 A
    • Rated current at 25°C
      10.19 A
    • Rated current at 30°C
      10 A
    • Rated current at 35°C
      9.85 A
    • Rated current at 40°C
      9.71 A
    • Rated current at 45°C
      9.56 A
    • Rated current at 50°C
      9.41 A
    • Rated current at 55°C
      9.26 A
    • Rated current at 60°C
      9.12 A
    • Correc­tion factor of rating current for 2 devices placed side by side
      1
    • Min./max. threshold value of the AC thermal oper­a­tion
      1.13 - 1.45 A
    • Rated service breaking capa­city Ics AC according to IEC 60898-1
      7.50 kA
    Power
    • Power dissip­a­tion at IN
      3.40 W
    Frequency
    • Frequency
      50 - 50 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque down terminal
      2.10 - 2.10 Nm
    • Nominal tight­ening torque top terminal
      2.10 - 2.10 Nm
    • Type of bottom connec­tion for modular devices
      bicon­nect
    Use condi­tions
    • Max. alti­tude
      2,000 m
    • Class of energy limit­a­tion I²t
      3
    • Oper­ating temper­ature
      -25 - 40 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Air humidity protec­tion
      For all climates
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      2,000
    • Number of mech­an­ical oper­a­tions
      2,000
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1 - 16 mm²
    • Cross-sec­tion rigid conductor
      1 - 25 mm²
    • Cross-sec­tion of input with screws, for flex­ible conductors
      1 - 16 mm²
    • Cross-sec­tion of input with screws, for massive conductors
      1 - 25 mm²
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1 - 16 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      1 - 25 mm²
    Capa­city
    • Number of modules
      2
    Dimen­sions
    • Height
      83 mm
    • Width
      35 mm
    • Depth
      68 mm
    Compat­ib­ility
    • Suit­able for DIN Rail
      catalog.pageproduct.attribute_boolean.yes

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - RCBO 1P+N 6kA B-16A 30mA A QC&QB (English)
    PDF
    4,99 MB
    REACH declaration ADA560D
    PDF
    RoHS report ADA560D
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div ADA560D

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

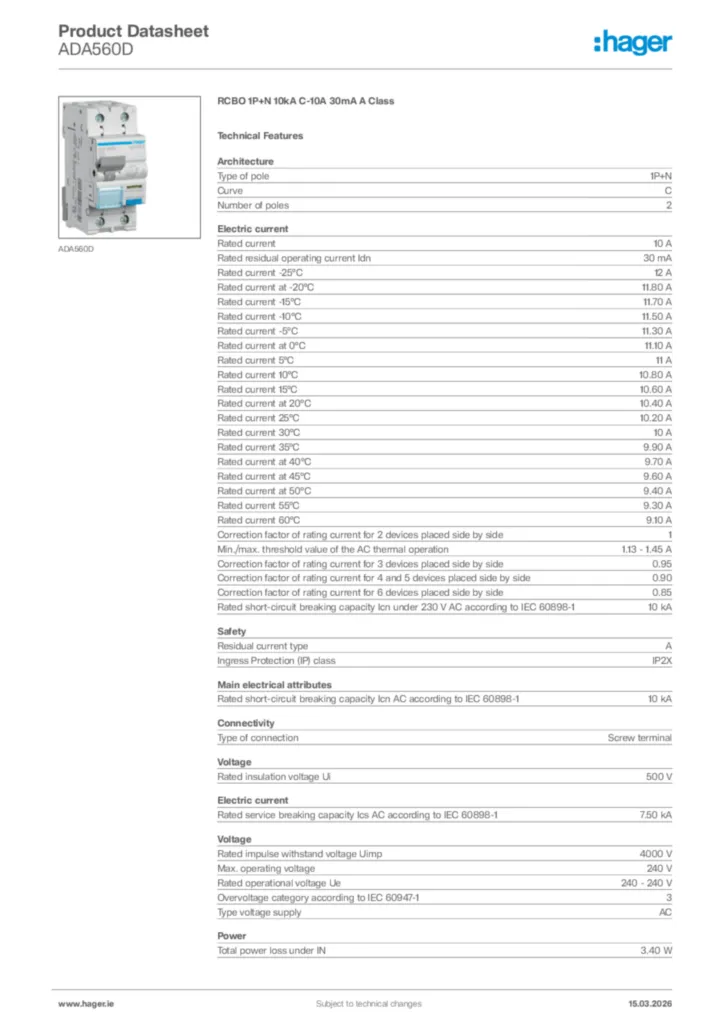

      Hager Product data sheet ADA560D

      RCBO 1P+N 10kA C-10A 30mA A Class

      PDF

    • ProductInstallationManual

      catalog.pagelevel.alt_image.img

      Installation manual en-GB, fr-FR, de-DE, it-IT 2022-03-24

      PDF
      1,45 MB

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      Declaration

      Declaration of conformity International 2022-04-05

      PDF
      911,17 kB
      catalog.pagelevel.alt_image.img

      Declaration of conformity en-US 2026-07-14

      PDF
      324,55 kB
