    • TU404
    EAN
    3250616014046
    Packaging
    1 Piece
    • KNX Radio - quick­link

    4-channel remote control TU404

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    4-channel remote control

    TU404

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Frequency
    • Frequency trans­mis­sion
      868 - 868 MHz
    • Radio trans­mis­sion frequency
      868.30 MHz
    Voltage
    • Oper­ating voltage
      6 - 6 V
    Func­tions
    • Max. radio trans­mis­sion range outdoors
      100 m
    Connectivity
    • Radio protocol
      KNX Radio
    • Receiver category
      2
    Controls and indic­ators
    • Number of buttons
      4
    Safety
    • Ingress Protec­tion (IP) class
      IP50
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 45 °C
    Dimen­sions
    • Height
      83 mm
    • Width
      46.5 mm
    • Depth
      15.80 mm
    Equip­ment
    • With battery
      Yes
    Battery
    • Battery life
      5 years
    Texts
    • Func­tion
      Easy addi­tional func­tions: +6 scenes, on/off oper­ating mode, 1 up/down button control, Reset func­tion (to factory setting)

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration TU404
    PDF
    Hager RoHS report TU404
    PDF

    Downloads

    • Image TU404 | Hager

      Product Image TU404

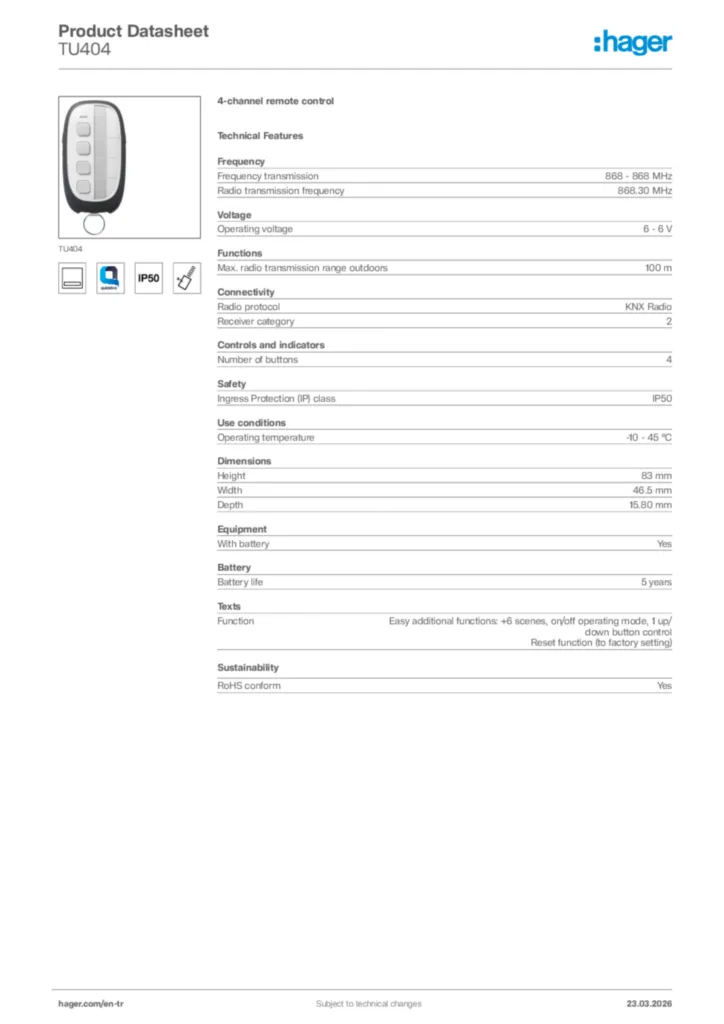

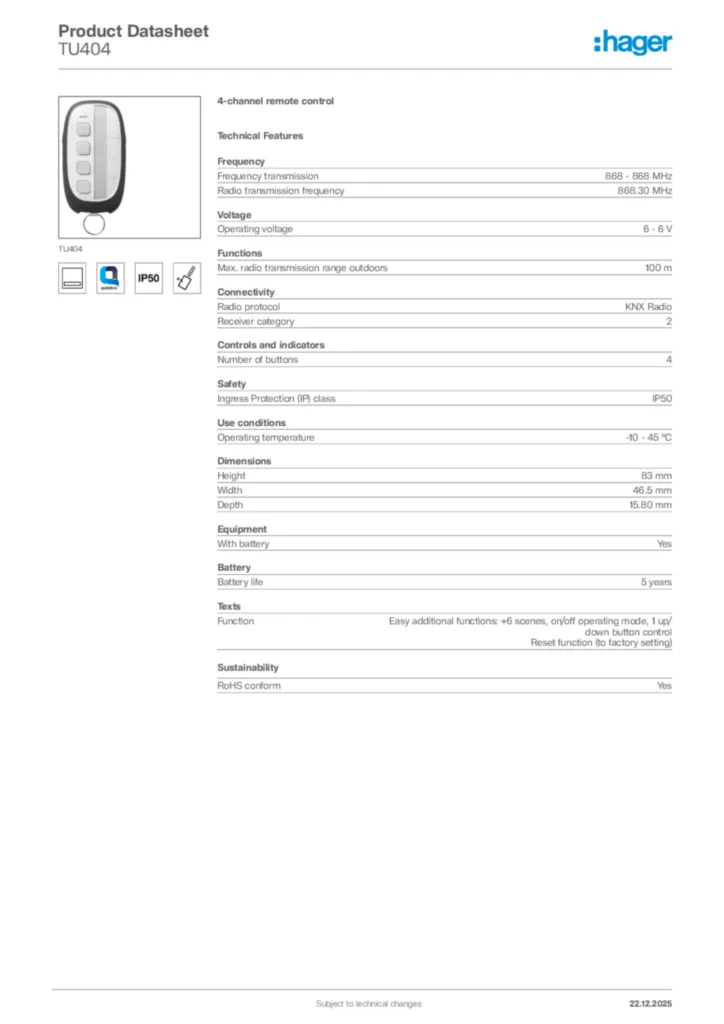

    • Product datasheet

      Image Hager Product data sheet TU404 | Hager

      Hager Product data sheet TU404

      4-channel remote control

      PDF

    • Installation manual

      Image Installation manual en-GB, fr-FR, de-DE, it-IT, nl-NL, pl-PL 2009-07-03 | Hager

      Installation manual en-GB, fr-FR, de-DE, it-IT, nl-NL, pl-PL 2009-07-03

      PDF
      5,79 MB

    • Product attachment

      Image Configuration guide quicklink (DE-FR-IT-NL, 2016-02) | Hager

      Configuration guide quicklink (DE-FR-IT-NL, 2016-02)

      Product attachment International 2020-01-01

      PDF
      1,18 MB

    • KNX product database

      Image Logiciel d'application ETS du TU404 | Hager

      Logiciel d'application ETS du TU404

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      KNXPROD
      150,19 kB
      Image Logiciel d'application ETS du TU404 | Hager

      Logiciel d'application ETS du TU404

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      VD5
      204,55 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2025-07-03

      PDF
      116,55 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2025-07-03

      PDF
      125,37 kB
