Motion detector radio, with battery, IP55, white TRE500
EAN
3250617573375
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Installation height4 - 4 m
Settings
-
Supported configuration modeETS, easy
-
Minimal duty cycle5 s
Functions
-
Maximal duty cycle30 min
Connectivity
-
With bus system KNX radioYes
Lighting
-
Response brightness adjustable5 - 1,000 lx
Detection
-
Detection angle adjustable45 - 90 °
-
Detection angle horizontal220 - 220
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
Texts
-
FunctionSwitch-off pre-warning on dimmer inserts, With memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours, Reset function (to factory setting)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

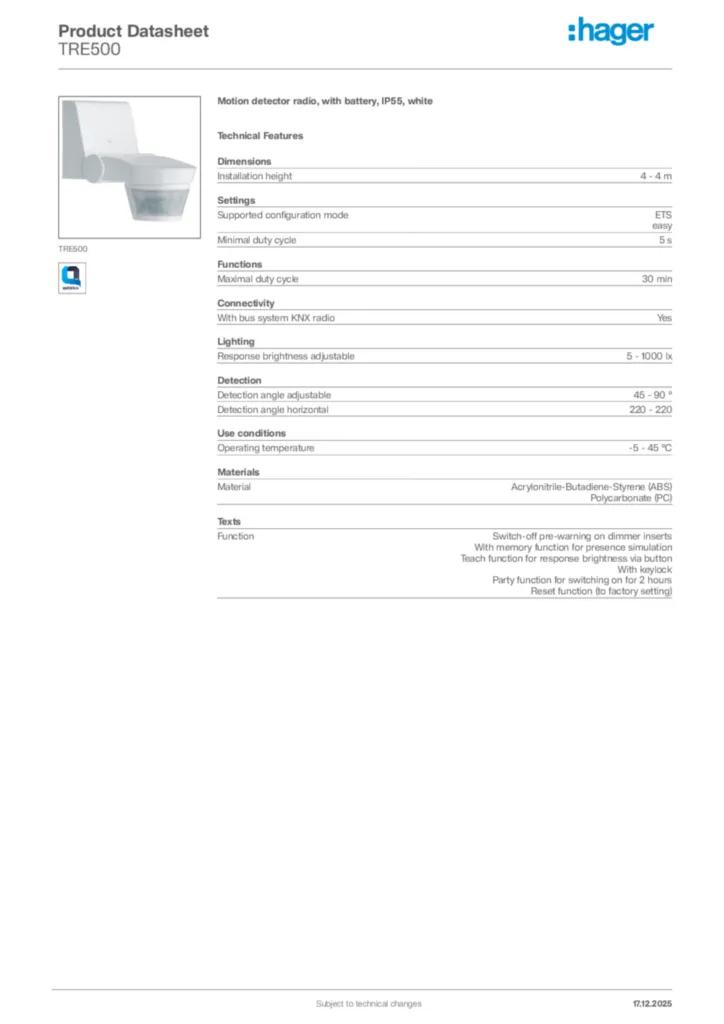

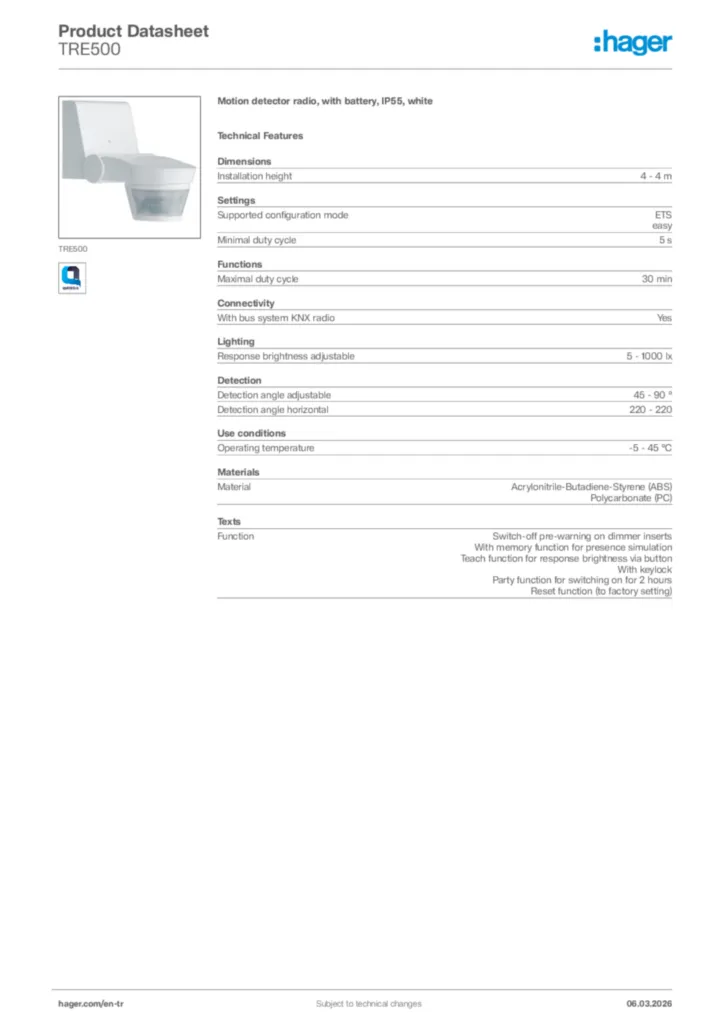

Product datasheet
Hager Product data sheet TRE500
Motion detector radio, with battery, IP55, white
PDF -
Installation manual
Installation manual en-GB, fi-FI, pl-PL 2010-07-02
PDF12,44 MB
Installation manual en-GB, fi-FI 2023-02-21
PDF5,26 MB -
Product attachment
Configuration guide quicklink (DE-FR-IT-NL, 2016-02)
Product attachment International 2020-01-01
PDF1,18 MB -
KNX product database
Logiciel d'application ETS du TRE520
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
KNXPROD211,47 kB
Logiciel d'application ETS du TRE520
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
VD5232,75 kB -
Application Guide
Description d'application ETS TRE500_501_520_521_510_511_530_531
Application Guide en-GB, pl-PL 2020-01-01
PDF979,54 kB -
Declaration of conformity
Declaration of conformity International 2024-01-18
PDF133,31 kB
